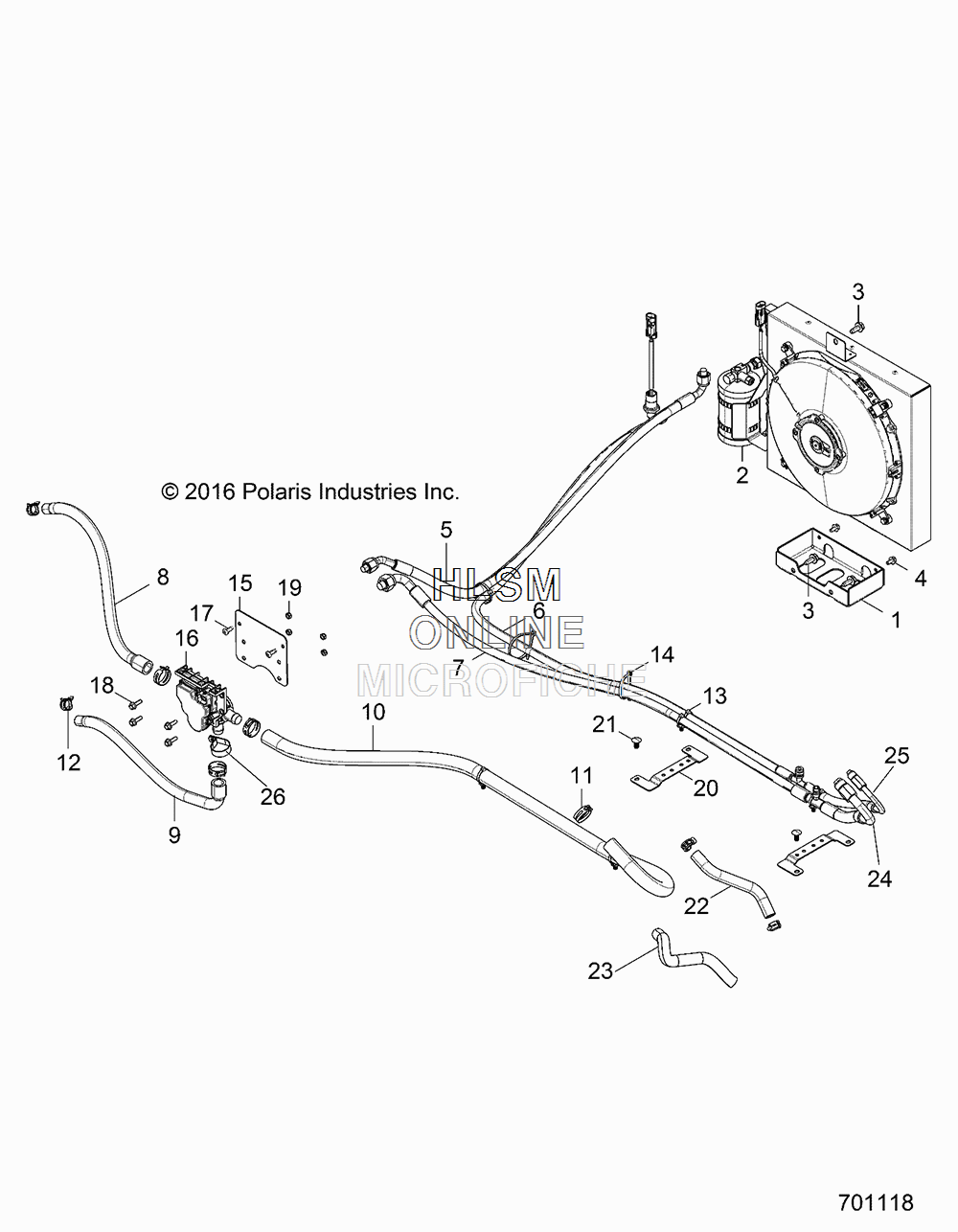

HVAC ROUTINGS для Polaris RANGER CREW 1000XP PS ALL OPTIONS BLUE (R13) - [R17RVU99AV] - 2017 года выпуска
-
№АртикулНазвание
-
13120179 MNT-CONDENSERMNT-CONDENSER
-
22413722 CONDENSOR-A/C,RGRCONDENSOR-A/C,RGR
-
37518555 BOLT-M8X1.25X20,HXFLGBOLT-M8X1.25X20,HXFLG
-
47519145 SCR-HXFL-M6X1.0X12 8.8 ZOD P30SCR-HXFL-M6X1.0X12 8.8 ZOD P30
-
55415913 HOSE-AC,RGRHOSE-AC,RGR
-
65416180 HOSE-AC,RGR,CREWHOSE-AC,RGR,CREW
-
75416179 HOSE-AC,RGR,CREWHOSE-AC,RGR,CREW
-
85415933 HOSE-COOLANT,ENG OIL-OUTHOSE-COOLANT,ENG OIL-OUT
-
95415934 HOSE-COOLANT,3WAY-ENGHOSE-COOLANT,3WAY-ENG
-
105416018 HOSE-COOLANT,3WAY-HEATERHOSE-COOLANT,3WAY-HEATER
-
117080842 SPRINGBAND-CLAMP 29/12,BLKSPRINGBAND-CLAMP 29/12,BLK
-
127081719 CLAMP-HOSE,SPRING,20MMCLAMP-HOSE,SPRING,20MM
-
137081496 CLIP-ROUTINGCLIP-ROUTING
-
147080492 STRAP-PANDUIT, 160X7.6STRAP-PANDUIT, 160X7.6
-
155263112-329 BRKT-MNT,3WAY,VALVE,BLKBRKT-MNT,3WAY,VALVE,BLK
-
162413634 ASM-VALVE,3-WAYASM-VALVE,3-WAY
-
177519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBKSCR-TX TRUSS-#14X3/4,HI/LO ZBK
-
187519121 SCR-HXFL-M6X1.0X20 8.8 RIESCR-HXFL-M6X1.0X20 8.8 RIE
-
197546703 NUT-6MM X 1 NYLOK-ZNUT-6MM X 1 NYLOK-Z
-
205263099 BRKT-SUPPORT,HOSEBRKT-SUPPORT,HOSE
-
217670090 CLIP-PLASTIC,DART,NYLONCLIP-PLASTIC,DART,NYLON
-
225415938 HOSE-COOLANT,HEATER-RETURNHOSE-COOLANT,HEATER-RETURN
-
233121053 HOSE-HEATERHOSE-HEATER
-
243121057 ASM-TUBELINE,ACASM-TUBELINE,AC
-
253121058 ASM-TUBELINE,ACASM-TUBELINE,AC
