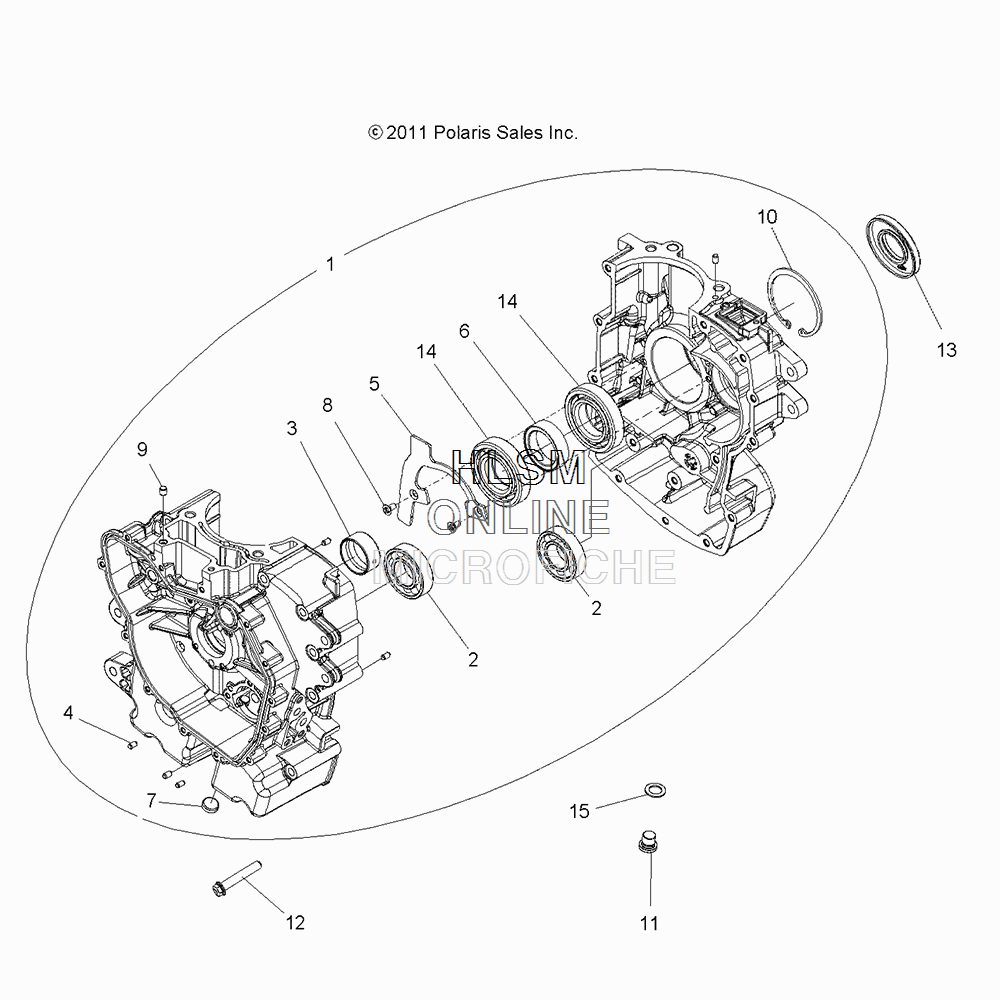

CRANKCASE для Polaris RANGER CREW 570FS (R05) - [R17RDA57A1] - 2017 года выпуска
-
№АртикулНазвание
-
12206362 K-CRANKCASE 570 [INCL. 1-10,12,14]K-CRANKCASE 570 [INCL. 1-10,12,14]
-
23514426 BEARING, BALLBEARING, BALL
-
45136879 PIN, DOWELPIN, DOWEL
-
55256915 PLATE, BEARING RETAINERPLATE, BEARING RETAINER
-
65137838 SPACER, BEARINGSPACER, BEARING
-
77051530 PLUG, EXPANSIONPLUG, EXPANSION
-
87517598 SCREWSCREW
-
97661977 DOWELDOWEL
-
107710660 RING, SNAPRING, SNAP
-
117052306 PLUG, SOCKETPLUG, SOCKET
-
127520104 SCREWSCREW
-
133610171 SEAL, CRANKSHAFTSEAL, CRANKSHAFT
-
143514389 BEARING, BALLBEARING, BALL
-
155812232 WASHER, COPPERWASHER, COPPER
