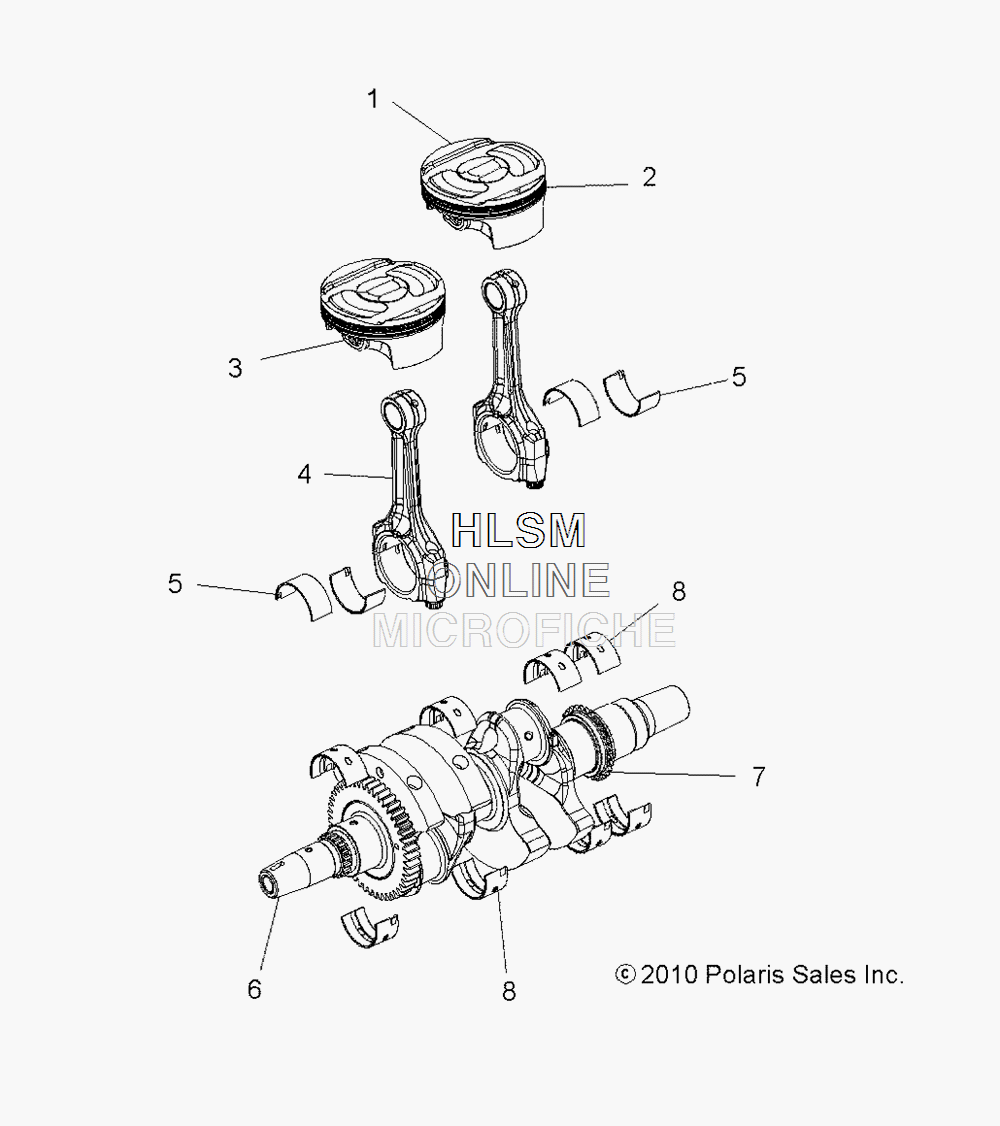

CRANKSHAFT AND PISTON для Polaris RANGER CREW 900 6P SP EPS CAMO (R07) - [R17RVE87B9] - 2017 года выпуска
-
№АртикулНазвание
-
12205244 KIT, PISTON [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]KIT, PISTON [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]
-
22205245 KIT, PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]KIT, PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]
-
33022358 PIN, PISTONPIN, PISTON
-
33022413 RING, RETAININGRING, RETAINING
-
43022893 ASM-ROD, CONNECTING, 129.45MM [INCL. ROD, CAP, 2 BOLTS]ASM-ROD, CONNECTING, 129.45MM [INCL. ROD, CAP, 2 BOLTS]
-
47519310 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
53514663-001 BEARING, CONNECTING ROD, (WHITE)BEARING, CONNECTING ROD, (WHITE)
-
53514663-002 BEARING, CONNECTING ROD, (BLUE)BEARING, CONNECTING ROD, (BLUE)
-
53514663-003 BEARING, CONNECTING ROD, (GREEN)BEARING, CONNECTING ROD, (GREEN)
-
53514663-004 BEARING, CONNECTING ROD, (YELLOW)BEARING, CONNECTING ROD, (YELLOW)
-
63022793 ASM., CRANKSHAFT [INCL. CRANK, 7]ASM., CRANKSHAFT [INCL. CRANK, 7]
-
83514662-003 BEARING, MAIN, (GREEN)BEARING, MAIN, (GREEN)
-
83514662-004 BEARING, MAIN, (YELLOW)BEARING, MAIN, (YELLOW)
-
83514662-005 BEARING, MAIN, (RED)BEARING, MAIN, (RED)
-
83514662-001 BEARING, MAIN, (WHITE)BEARING, MAIN, (WHITE)
-
83514662-002 BEARING, MAIN, (BLUE)BEARING, MAIN, (BLUE)
