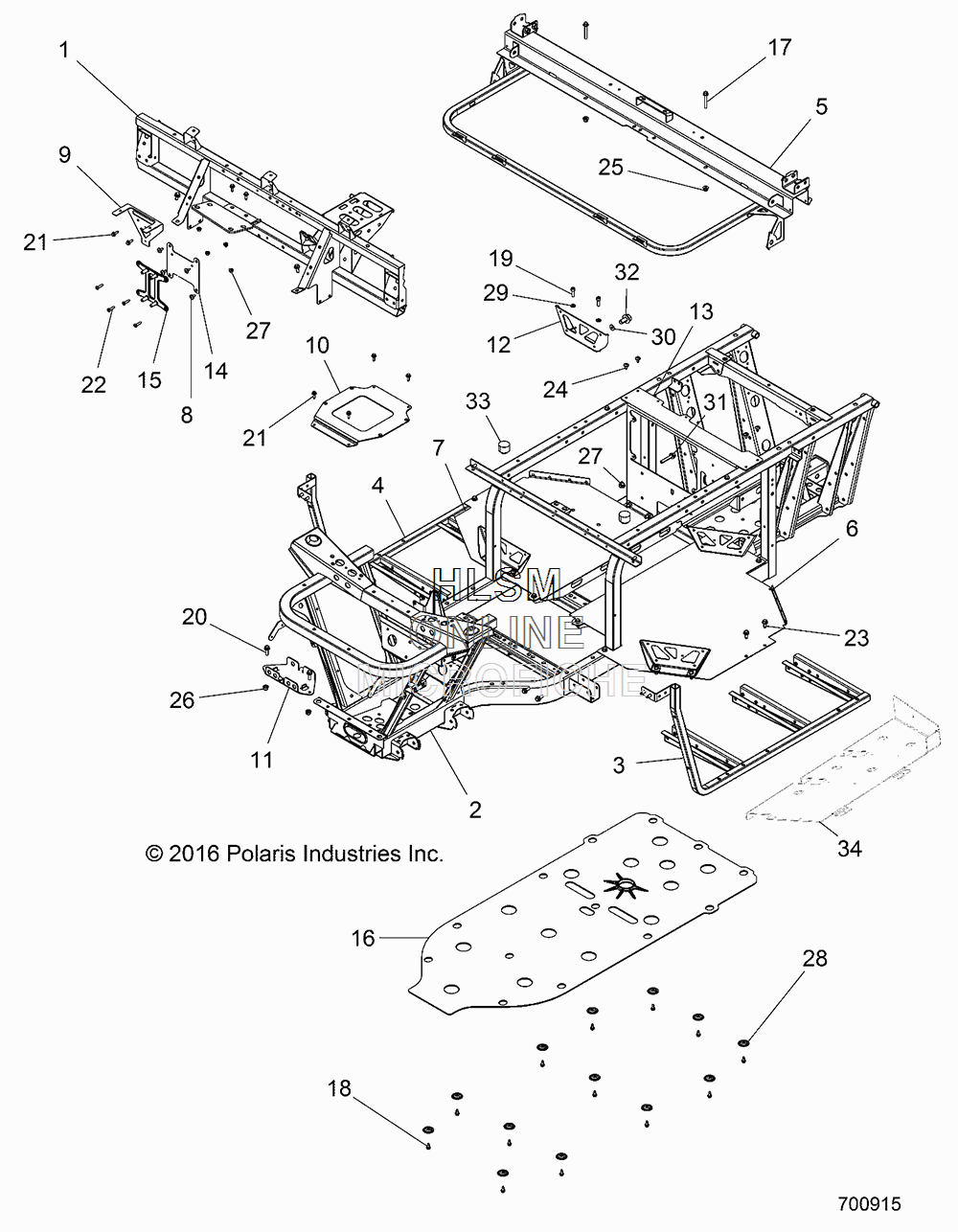

FRAME для Polaris RANGER EV LIION (R05) - [R17RMAL4G9] - 2017 года выпуска
-
№АртикулНазвание
-
11020151-329 CAB, SUPPORT, FRONT, BLACKCAB, SUPPORT, FRONT, BLACK
-
21020591-458 MAIN FRAME, MATTE BLACKMAIN FRAME, MATTE BLACK
-
31020593-329 SUPPORT, FLOOR, LH, BLACKSUPPORT, FLOOR, LH, BLACK
-
41020594-329 SUPPORT, FLOOR, RH, BLACKSUPPORT, FLOOR, RH, BLACK
-
51022758-458 SEAT BASE, CAB SUPPORT, MATTE BLACKSEAT BASE, CAB SUPPORT, MATTE BLACK
-
61021284-329 BATTERY, TRAY, LH, BLACKBATTERY, TRAY, LH, BLACK
-
71021285-329 BATTERY, TRAY, RH, BLACKBATTERY, TRAY, RH, BLACK
-
87661855 RIVET-TUFLOK,.315-.325X.787RIVET-TUFLOK,.315-.325X.787
-
95256408-329 BRACKET, MOUNT, FUSE BLOCK, BLACKBRACKET, MOUNT, FUSE BLOCK, BLACK
-
105259390-329 BRACKET, CHARGER MOUNT, BLACKBRACKET, CHARGER MOUNT, BLACK
-
115260378-329 BRACKET, BATTERY MOUNT, BLACKBRACKET, BATTERY MOUNT, BLACK
-
125261281-329 BRACKET, BATTERY SUPPORT, BLACKBRACKET, BATTERY SUPPORT, BLACK
-
135261282-329 BRACKET, MOUNT, ELECTRICAL, BLACKBRACKET, MOUNT, ELECTRICAL, BLACK
-
145261366-329 BRACKET, MOUNT, ECU, BLACKBRACKET, MOUNT, ECU, BLACK
-
155450605-070 MOUNT, ECU, BLACKMOUNT, ECU, BLACK
-
165813381 PLATE, SKIDPLATE, SKID
-
177517281 SCREWSCREW
-
187517386 SCREWSCREW
-
197518142 SCREWSCREW
-
207518514 BOLTBOLT
-
217518529 SCREWSCREW
-
227512026 SCR-#10X3/4-HI/LO-PN-T25,TRX-MSCR-#10X3/4-HI/LO-PN-T25,TRX-M
-
237518555 SCREWSCREW
-
247518936 SCREWSCREW
-
257547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
267547332 NUTNUT
-
277547339 NUTNUT
-
287556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
297556245 WASHERWASHER
-
307556064 WSHR-6.4X18.0X1.6 ZPBWSHR-6.4X18.0X1.6 ZPB
-
317516827 SCR-M6X1.0X35,HX/FL-Y/DSCR-M6X1.0X35,HX/FL-Y/D
-
327519145 SCR-HXFL-M6X1.0X12 8.8 ZOD P30SCR-HXFL-M6X1.0X12 8.8 ZOD P30
-
335411435 BUMPER-RUBBER,.62 STEALTHBUMPER-RUBBER,.62 STEALTH
-
345262673-329 BRKT-BATTERY,MOUNT,LH,BLKBRKT-BATTERY,MOUNT,LH,BLK
-
345262674-329 BRKT-BATTERY,MOUNT,RH,BLKBRKT-BATTERY,MOUNT,RH,BLK
