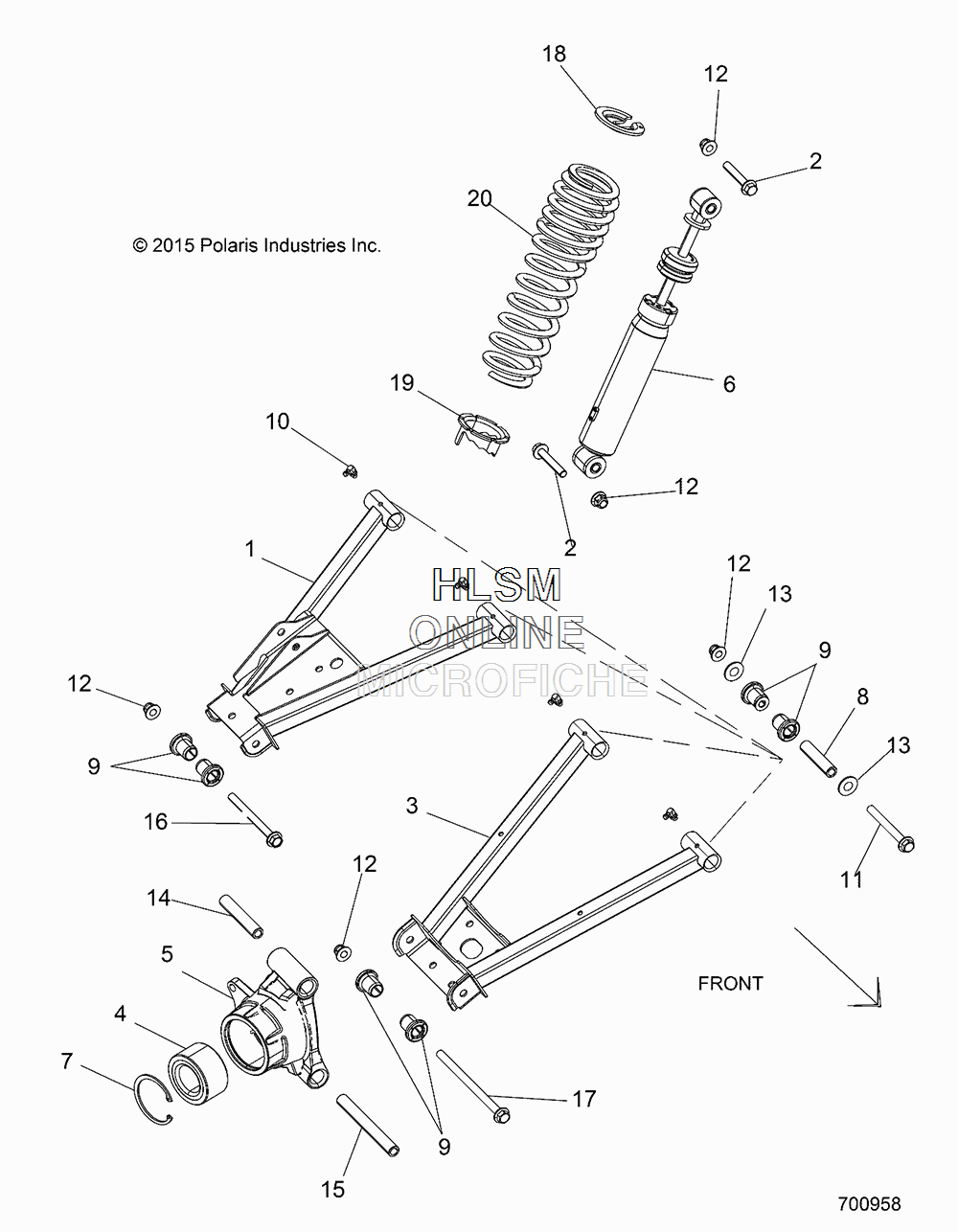

REAR SUSPENSION для Polaris RGR 500 2WD HDPE (R09) - [R17RM250A1] - 2017 года выпуска
-
№АртикулНазвание
-
11020797-458 ARM,CONTROL, UPPER, LEFT, (MATTE BLACK)ARM,CONTROL, UPPER, LEFT, (MATTE BLACK)
-
11018992-458 ARM,CONTROL, UPPER, RIGHT, (MATTE BLACK)ARM,CONTROL, UPPER, RIGHT, (MATTE BLACK)
-
27518563 BOLTBOLT
-
31018995-458 ARM, CONTROL, LOWER, (MATTE BLACK)ARM, CONTROL, LOWER, (MATTE BLACK)
-
43514635 BEARING, WHEELBEARING, WHEEL
-
55138501 CARRIER, BEARING, WHEEL, LEFTCARRIER, BEARING, WHEEL, LEFT
-
55138502 CARRIER, BEARING, WHEEL, RIGHTCARRIER, BEARING, WHEEL, RIGHT
-
67044139 SHOCK, REARSHOCK, REAR
-
77710440 RING, RETAININGRING, RETAINING
-
85138797 SHAFT, PIVOTSHAFT, PIVOT
-
95439874 BUSHINGBUSHING
-
107080510 FITTING, ZERKFITTING, ZERK
-
117519043 SCREWSCREW
-
127547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
137556153 WASHERWASHER
-
145138794 SHAFT, PIVOTSHAFT, PIVOT
-
155138796 SHAFT, PIVOTSHAFT, PIVOT
-
167518566 BOLTBOLT
-
177519042 SCREWSCREW
-
185251753 RETAINER, SPRING, STEELRETAINER, SPRING, STEEL
-
195253768 CAM, ADJUSTING, SPRING, STEELCAM, ADJUSTING, SPRING, STEEL
-
207043884-458 SPRING, REAR, (MATTE BLACK)SPRING, REAR, (MATTE BLACK)
