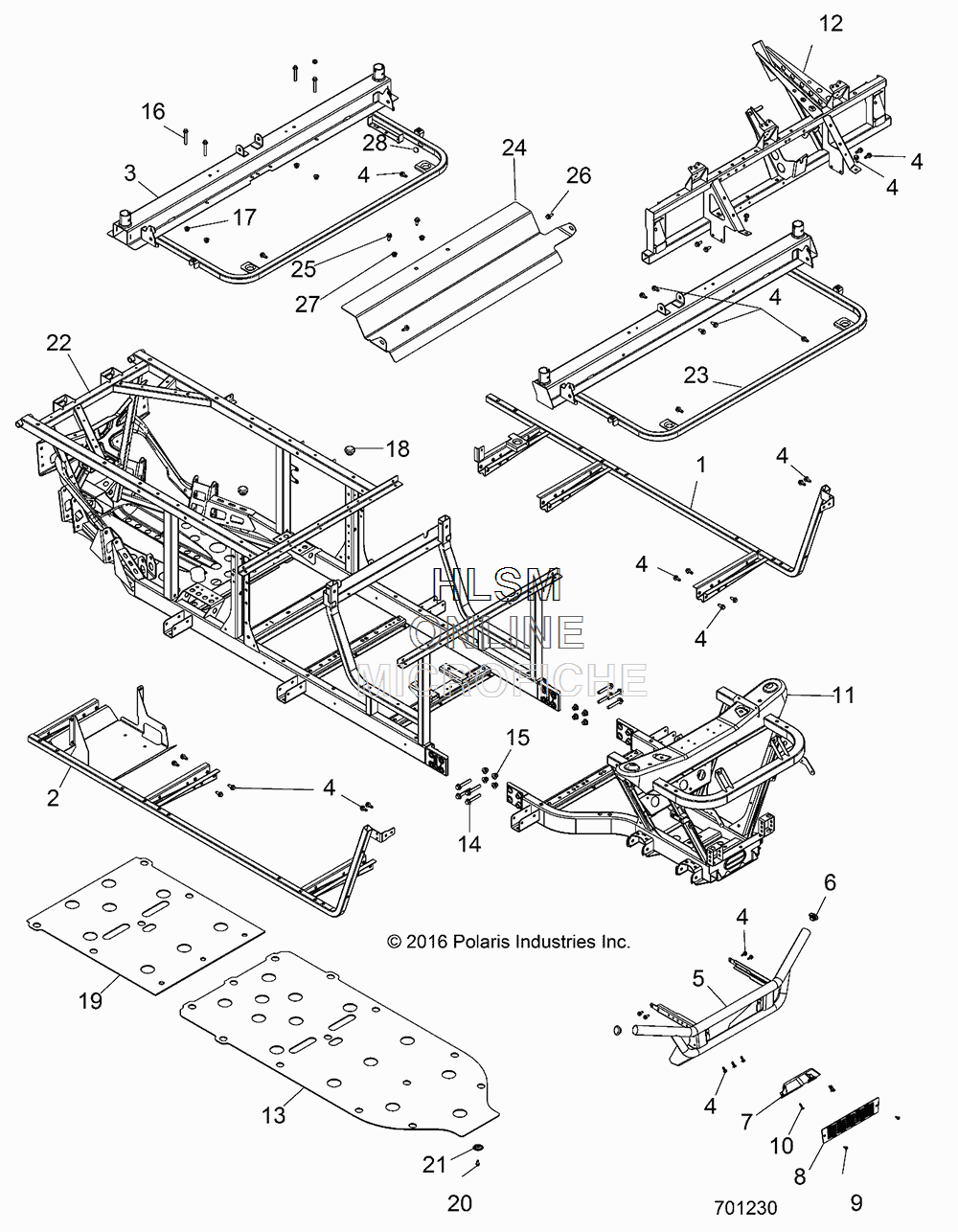

FRAME AND FRONT BUMPER для Polaris RGR 570 EFI CREW CAMO (R07) - [R17RNA57A9] - 2017 года выпуска
-
№АртикулНазвание
-
11020149-329 SUPPORT, FLOOR, LH, BLACKSUPPORT, FLOOR, LH, BLACK
-
21020150-329 SUPPORT, FLOOR, RH, BLACKSUPPORT, FLOOR, RH, BLACK
-
31022550-458 SEAT, BASE, CAB SUPPORT, MATTE BLACKSEAT, BASE, CAB SUPPORT, MATTE BLACK
-
47518555 BOLTBOLT
-
51020136-458 BUMPER, MATTE BLACKBUMPER, MATTE BLACK
-
65434191 CAP, BUMPERCAP, BUMPER
-
75438181-070 BRACKET, BUMPER, GUARD, BLACKBRACKET, BUMPER, GUARD, BLACK
-
85438240-070 SCREEN, BUMPER, UPPER, BLACKSCREEN, BUMPER, UPPER, BLACK
-
97519650 SCREWSCREW
-
107518158 SCREWSCREW
-
111022486-458 FRAME, MAIN, FRONT, MATTE BLACKFRAME, MAIN, FRONT, MATTE BLACK
-
121020151-329 SUPPORT, CAB, FRONT, BLACKSUPPORT, CAB, FRONT, BLACK
-
135813381 PLATE, SKIDPLATE, SKID
-
147518563 BOLTBOLT
-
157547333 NUT, M10, NYLOCKNUT, M10, NYLOCK
-
167517281 SCREWSCREW
-
177547332 NUTNUT
-
185411435 BUMPER, RUBBERBUMPER, RUBBER
-
195450137 PLATE, SKID, REARPLATE, SKID, REAR
-
207517386 SCREWSCREW
-
217556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
221021396-458 FRAME, REAR, MATTE BLACKFRAME, REAR, MATTE BLACK
-
231022552-458 SEAT, BASE, CAB SUPPORT, MATTE BLACKSEAT, BASE, CAB SUPPORT, MATTE BLACK
-
245510898 PANEL-HEAT-SHIELDPANEL-HEAT-SHIELD
-
257518591 SCR-HXFL-M6X1.0X16 8.8 ZPBSCR-HXFL-M6X1.0X16 8.8 ZPB
-
267519092 SCR-TXTH-M6X1.0X15 ZPB TAPSCR-TXTH-M6X1.0X15 ZPB TAP
-
277547453 NUT-HXFL-M6X1.0 8 ZB3 NYLNUT-HXFL-M6X1.0 8 ZB3 NYL
-
285453007 PLUG-GROMMETPLUG-GROMMET
