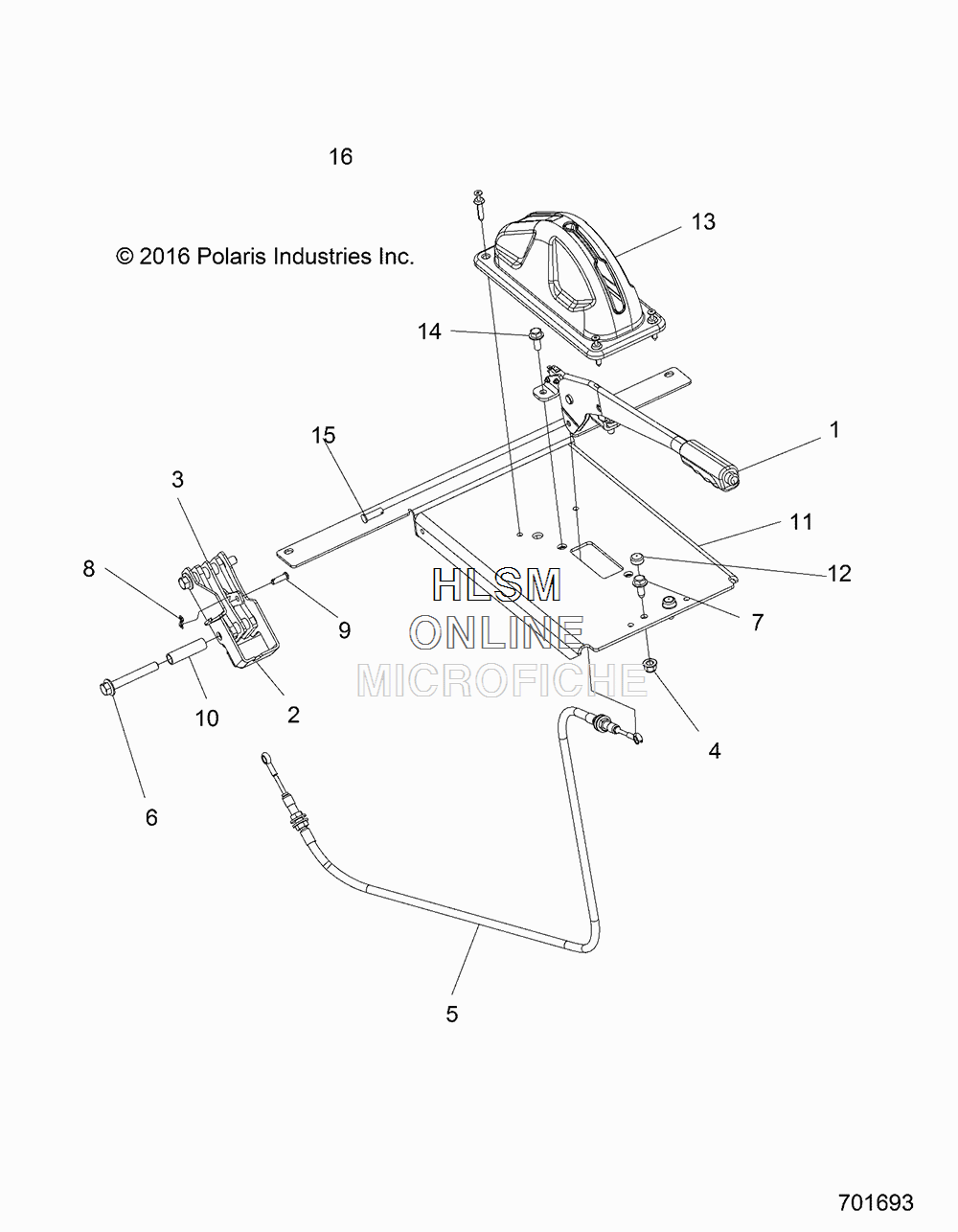

BRAKES - PARKING BRAKE для Polaris RGR 570 EPS HDPS EU SAGE BRUSH GREEN [R17RMA57F1] - 2017 года выпуска
-
№АртикулНазвание
-
11912254 ASM-LEVER,PARK BRAKEASM-LEVER,PARK BRAKE
-
21021301-458 WELD-BRKT-SHIFT,PB,CABLE,BLKWELD-BRKT-SHIFT,PB,CABLE,BLK
-
31911972 ASM., CALIPER, PB, AFT-SB230C, RIVETED, MNIASM., CALIPER, PB, AFT-SB230C, RIVETED, MNI
-
47547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
57081734 CABLE-PARKING BRAKE, 44"CABLE-PARKING BRAKE, 44"
-
67518561 BOLTBOLT
-
77518555 SCR-TFHFL-M8X1.25X20 CHS ZODSCR-TFHFL-M8X1.25X20 CHS ZOD
-
87661140 PIN, CLIP, 14MMPIN, CLIP, 14MM
-
97661843 PIN, CLEVISPIN, CLEVIS
-
105336804 SPACER,PARKING BRAKE, 2"SPACER,PARKING BRAKE, 2"
-
111023116-458 WELD-PARK BRAKE MOUNT,TR,BLKWELD-PARK BRAKE MOUNT,TR,BLK
-
125414017 CAP-SCREWCAP-SCREW
-
135415050 BOOT-RUBBER,PARK,BRAKEBOOT-RUBBER,PARK,BRAKE
-
147518702 SCR-HXFL-M8X1.25X20 8.8 ZY3SCR-HXFL-M8X1.25X20 8.8 ZY3
-
157661106 PIN-5/16X1 CLEVISPIN-5/16X1 CLEVIS
-
167662085 RIVET,PUSH,1/4",BLK NYLONRIVET,PUSH,1/4",BLK NYLON
