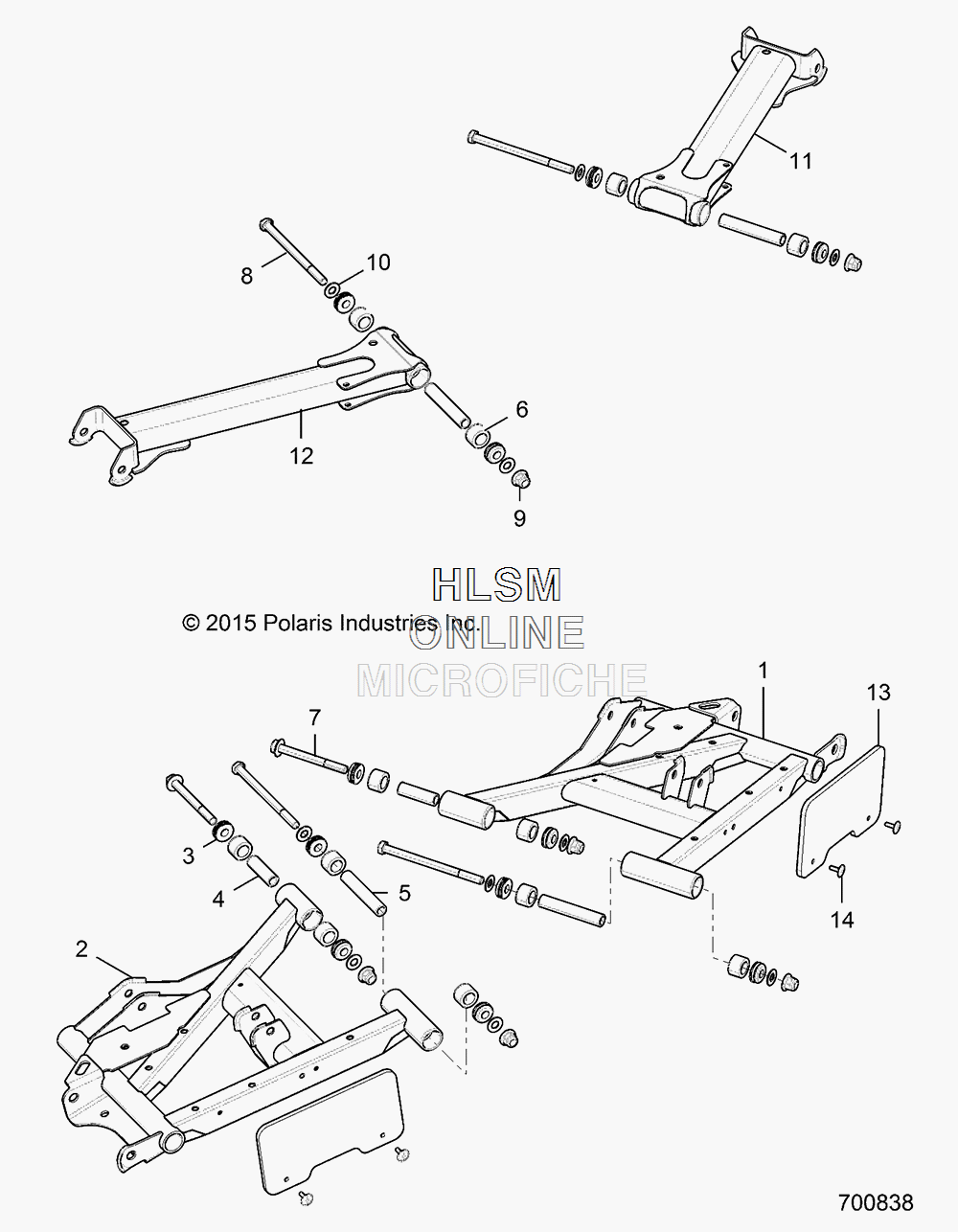

REAR CONTROL ARMS для Polaris GENERAL 1000 EPS INDY RED (R18RGE99B7) - 2018 года выпуска
-
№АртикулНазвание
-
11021414-458 WELD-A-ARM, REAR, LOWER, LEFT HAND, 60, BLACKWELD-A-ARM, REAR, LOWER, LEFT HAND, 60, BLACK
-
21021415-458 WELD-A-ARM, REAR, LOWER, RIGHT HAND, 60, BLACKWELD-A-ARM, REAR, LOWER, RIGHT HAND, 60, BLACK
-
31543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
45139966 SHAFT-PIVOT, SHORT, M10SHAFT-PIVOT, SHORT, M10
-
55139967 SHAFT-PIVOT, LONG, M10SHAFT-PIVOT, LONG, M10
-
65452233 BUSHING-STANDARD, SUSP, M10BUSHING-STANDARD, SUSP, M10
-
77519043 SCR-HXFL-M10X1.25X95 10.9 ZODSCR-HXFL-M10X1.25X95 10.9 ZOD
-
87519897 SCR-HH-M10X1.25X140, 10.9 ZODSCR-HH-M10X1.25X140, 10.9 ZOD
-
97547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
107556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
-
111021412-458 WELD-A-ARM, REAR, UPPER, LEFT HAND, 60, BLACKWELD-A-ARM, REAR, UPPER, LEFT HAND, 60, BLACK
-
121021413-458 WELD-A-ARM, REAR, UPPER, RIGHT HAND, 60, BLACKWELD-A-ARM, REAR, UPPER, RIGHT HAND, 60, BLACK
-
135451336-070 SHIELD-CV, REAR, BLACKSHIELD-CV, REAR, BLACK
-
147621467 RVT-3/16(.251-.375)ST-ST-LF-BRVT-3/16(.251-.375)ST-ST-LF-B
