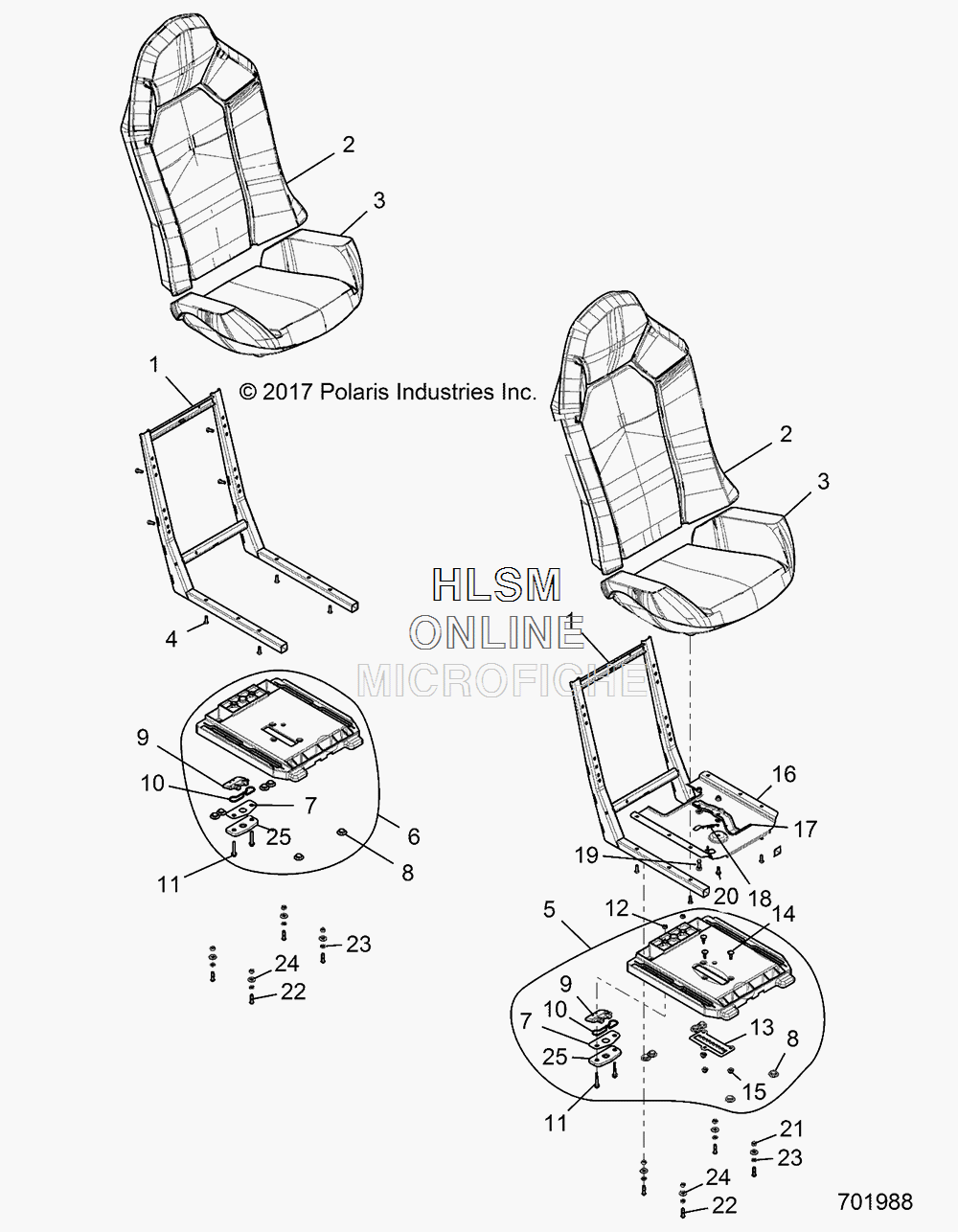

SEAT ASM. AND SLIDER для Polaris GENERAL 1000 PS MD EU (R18RGS99FM) - 2018 года выпуска
-
№АртикулНазвание
-
11022256 WELD-SEAT FRAMEWELD-SEAT FRAME
-
22688017 ASM-SEAT, BACK, BLACK/ORG/ORG ST (BUILT UP TO 1/31/2018)ASM-SEAT, BACK, BLACK/ORG/ORG ST (BUILT UP TO 1/31/2018)
-
22688907 ASM-SEAT, BACK, BLACK/ORG/ORG ST (BUILT AFTER 1/31/2018)ASM-SEAT, BACK, BLACK/ORG/ORG ST (BUILT AFTER 1/31/2018)
-
32688020 ASM-SEAT, BTM, BLACK/ORG/ORG ST (BUILT UP TO 1/31/2018)ASM-SEAT, BTM, BLACK/ORG/ORG ST (BUILT UP TO 1/31/2018)
-
32688908 ASM-SEAT, BTM, BLACK/ORG/ORG ST (BUILT AFTER 1/31/2018)ASM-SEAT, BTM, BLACK/ORG/ORG ST (BUILT AFTER 1/31/2018)
-
47515177 SCREWSCREW
-
52685704 ASM., BASE, SEAT SLIDER (INCL. 7-14, AND 25, QTY 3 OF 15)ASM., BASE, SEAT SLIDER (INCL. 7-14, AND 25, QTY 3 OF 15)
-
62634889 ASM-BASE, SEAT (INCL. 7-11, AND 25)ASM-BASE, SEAT (INCL. 7-11, AND 25)
-
75258647 PLATE, SEAT LATCHPLATE, SEAT LATCH
-
85413441 GROMMET, SEAT BASEGROMMET, SEAT BASE
-
95437121 LEVER, LATCH, SEATLEVER, LATCH, SEAT
-
107081466 SPRING, LATCH, SEATSPRING, LATCH, SEAT
-
117517610 SCREWSCREW
-
127546703 NUT, NYLOKNUT, NYLOK
-
135257975 BRACKET, SEAT SLIDER ADJUSTMENT PLATEBRACKET, SEAT SLIDER ADJUSTMENT PLATE
-
147518994 BOLT, CARRIAGEBOLT, CARRIAGE
-
157547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
165257974 BRACKET, SEAT SLIDER MOUNTING PLATEBRACKET, SEAT SLIDER MOUNTING PLATE
-
175260101 BRACKET, SEAT SLIDER LEVERBRACKET, SEAT SLIDER LEVER
-
187044099 SPRINGSPRING
-
197518786 BOLT, SHOULDERBOLT, SHOULDER
-
207518897 BOLT, SHOULDERBOLT, SHOULDER
-
215340145 TUBE, SPACERTUBE, SPACER
-
227519296 SCREWSCREW
-
237552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247555859 WASHER, FLATWASHER, FLAT
-
255450510-070 LATCH-COVER PLATE, BLACKLATCH-COVER PLATE, BLACK
