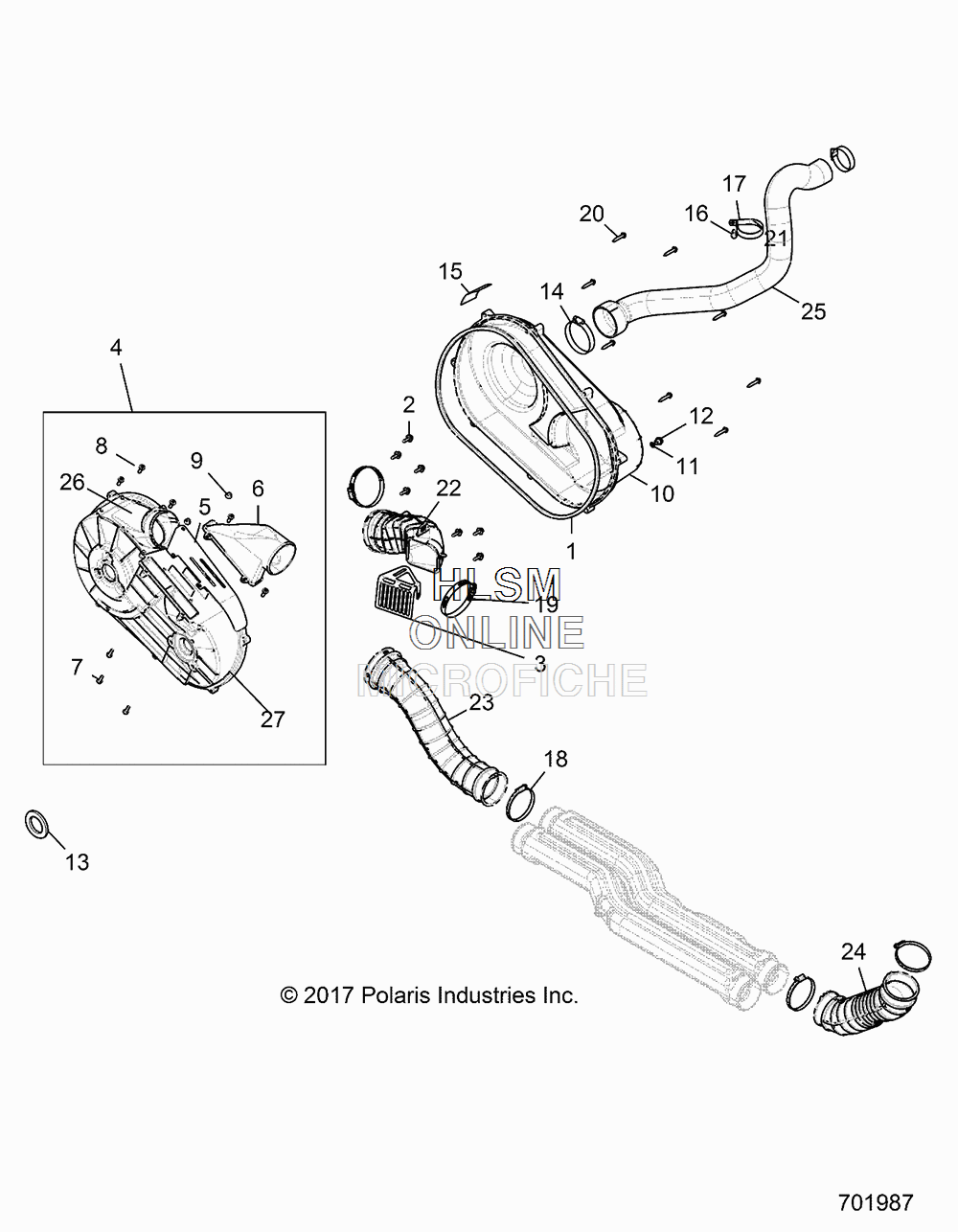

CLUTCH COVER AND DUCTING для Polaris GENERAL 1000 PS MD EU RADAR BLUE (R18RGE99EFB) - 2018 года выпуска
-
№АртикулНазвание
-
15521831 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
27519278 ASM-BOLT/WASHER, 20 MMASM-BOLT/WASHER, 20 MM
-
35256732 BRKT-BELT SCREENBRKT-BELT SCREEN
-
42635158 ASM., COVER, CLUTCH, INNER (INCL. 5-9, 26, 27)ASM., COVER, CLUTCH, INNER (INCL. 5-9, 26, 27)
-
55256223 BRACKET, GUARD, CLUTCH COVERBRACKET, GUARD, CLUTCH COVER
-
65439086 DUCT, CLUTCH, AIR INLET BRKT-BELT SCREENDUCT, CLUTCH, AIR INLET BRKT-BELT SCREEN
-
77518546 SCREWSCREW
-
87519205 SCREWSCREW
-
97547453 NUT, NYLOKNUT, NYLOK
-
102207410 K-CVR, CLUTCH, GEN, EU (INCL. DECAL , 11-12)K-CVR, CLUTCH, GEN, EU (INCL. DECAL , 11-12)
-
115410542 O-RINGO-RING
-
125434264 PLUG, DRAIN, CLUTCH COVERPLUG, DRAIN, CLUTCH COVER
-
135813708 SEAL, COVER, PTOSEAL, COVER, PTO
-
147080907 CLAMP, HOSECLAMP, HOSE
-
157181427 DECAL-WARN, CLUTCH COVER, EUDECAL-WARN, CLUTCH COVER, EU
-
167518529 SCREWSCREW
-
177081129 CLAMP-FUEL FILTERCLAMP-FUEL FILTER
-
187081279 CLAMP-BAND, NARROW 70-90MMCLAMP-BAND, NARROW 70-90MM
-
197081969 CLAMP-HOSE SLOTTED, 89-100 DIACLAMP-HOSE SLOTTED, 89-100 DIA
-
207519330 SCR-HXFL-M6X35 ZOD HILOSCR-HXFL-M6X35 ZOD HILO
-
217080451 CLAMP-HOSE, 2.50, SSCLAMP-HOSE, 2.50, SS
-
225451061 HOSE-CLUTCH, AIR OUTLETHOSE-CLUTCH, AIR OUTLET
-
235415467 HOSE-CLUTCH, INLETHOSE-CLUTCH, INLET
-
245415468 HOSE-INTAKE, DUCTHOSE-INTAKE, DUCT
-
255416058 HOSE-CLUTCH, SCNDRY INTK, RBRHOSE-CLUTCH, SCNDRY INTK, RBR
-
265450846 DUCT-CLUTCH, AIR OUTLETDUCT-CLUTCH, AIR OUTLET
-
275454487-070 COVER-CLUTCH, INNER, BLACKCOVER-CLUTCH, INNER, BLACK
