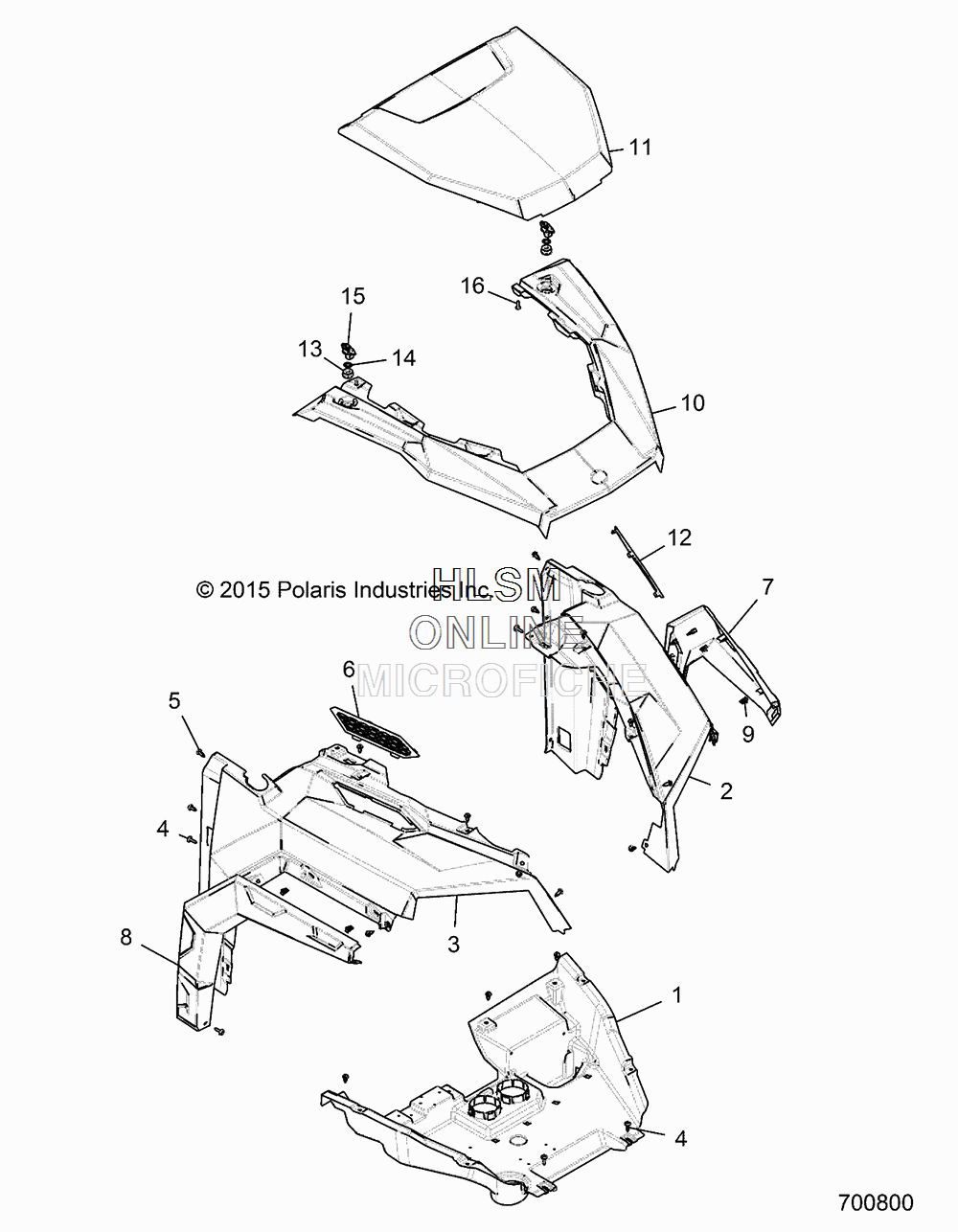

HOOD AND DASHBOARD для Polaris GENERAL 4 1000 EPS BLACK PEARL (R18RHE99BK) - 2018 года выпуска
-
№АртикулНазвание
-
15453314-070 LINER-HOOD, BLACKLINER-HOOD, BLACK
-
25453151-666 FENDER-FR, PNT, LEFT HAND, BLACK PEARLFENDER-FR, PNT, LEFT HAND, BLACK PEARL
-
35453152-666 FENDER-FR, PNT, RIGHT HAND, BLACK PEARLFENDER-FR, PNT, RIGHT HAND, BLACK PEARL
-
47519650 SCREWSCREW
-
57661855 RIVET TUFLOKRIVET TUFLOK
-
65452184-070 VENT-HOOD, RIGHT HAND, BLACKVENT-HOOD, RIGHT HAND, BLACK
-
72636175-070 ASM-FNDR, FLR, FL, CLIP, BLACK (INCL. QTY 5 OF 9)ASM-FNDR, FLR, FL, CLIP, BLACK (INCL. QTY 5 OF 9)
-
82636176-070 ASM-FNDR, FLR, FR, CLIP, BLACK (INCL. QTY 5 OF 9)ASM-FNDR, FLR, FR, CLIP, BLACK (INCL. QTY 5 OF 9)
-
97519806 CLIP-DASH, TRIM, METALCLIP-DASH, TRIM, METAL
-
105452452-293 HOOD-OUTER, PNT, INDY REDHOOD-OUTER, PNT, INDY RED
-
115452181-070 HOOD-INNER, BLACKHOOD-INNER, BLACK
-
125452183-070 VENT-HOOD, LEFT HAND, BLACKVENT-HOOD, LEFT HAND, BLACK
-
135413428 GROMMET-LATCHGROMMET-LATCH
-
147555919 WASHER-.510X.840X.031 YWASHER-.510X.840X.031 Y
-
155451143 LATCH-1/4 TURNLATCH-1/4 TURN
-
167519731 SCR-TXPH-#14 X .75 HI-LO RIESCR-TXPH-#14 X .75 HI-LO RIE
