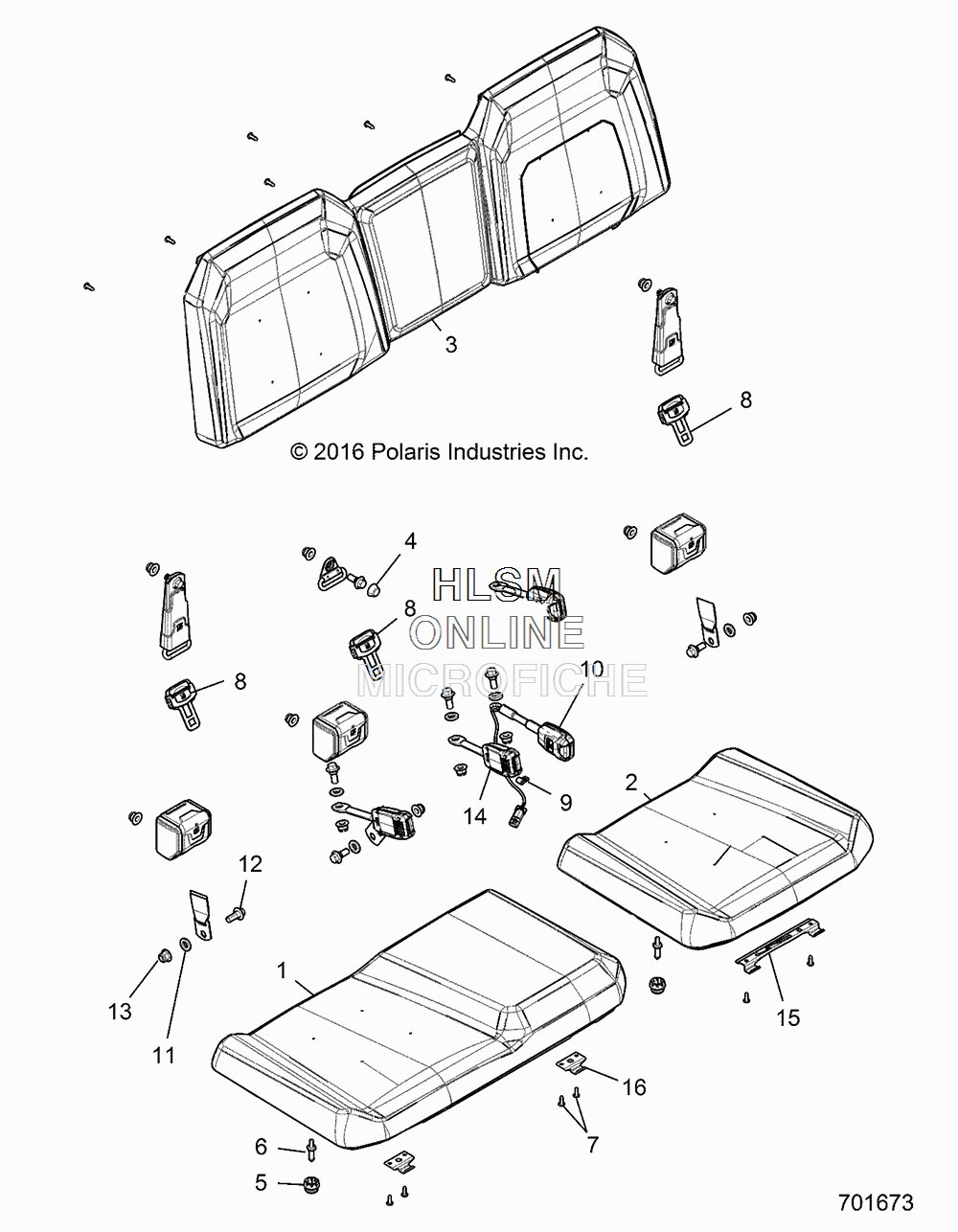

SEAT для Polaris RANGER 1000 DIESEL EU (R18RTED1F1) - 2018 года выпуска
-
№АртикулНазвание
-
12687901-070 ASM-SEAT, BTM, 60, BLACK (INCL QTY 1 OF 6, QTY 4 OF 7, 16)ASM-SEAT, BTM, 60, BLACK (INCL QTY 1 OF 6, QTY 4 OF 7, 16)
-
22687934-070 ASM-SEAT, BTM, 40, BLACK (INCL QTY 1 OF 6, QTY 2 OF 7, 15)ASM-SEAT, BTM, 40, BLACK (INCL QTY 1 OF 6, QTY 2 OF 7, 15)
-
32687899-070 ASM-SEAT, RGR, BACK, BLACK (BUILT UP TO 11/17/2017) (FROM 12/1/2017)ASM-SEAT, RGR, BACK, BLACK (BUILT UP TO 11/17/2017) (FROM 12/1/2017)
-
32685653-070 ASM-SEAT, RNGR, BACK, BLACK (BUILT AFTER 11/17/2017) (TO12/1/2017)ASM-SEAT, RNGR, BACK, BLACK (BUILT AFTER 11/17/2017) (TO12/1/2017)
-
55439179 GROMMETGROMMET
-
65910404 PIN, SEAT LATCHPIN, SEAT LATCH
-
77519045 SCREWSCREW
-
82636338 ASM-SEAT BELT, 3PT TRASM-SEAT BELT, 3PT TR
-
97081246 CLAMP-WIRE/TUBE .25 DIACLAMP-WIRE/TUBE .25 DIA
-
102636437 BUCKLE-SEATBELT, 90, SWITCH, TRBUCKLE-SEATBELT, 90, SWITCH, TR
-
115813829 WASHER, RUBBERWASHER, RUBBER
-
127519770 SCREWSCREW
-
137547441 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
142636438 BUCKLE-SEATBELT, PASSENGER, TRBUCKLE-SEATBELT, PASSENGER, TR
-
155259065 BRACKET, SEAT HINGE, DOUBLEBRACKET, SEAT HINGE, DOUBLE
-
165259064 BRACKET, SEAT HINGEBRACKET, SEAT HINGE
