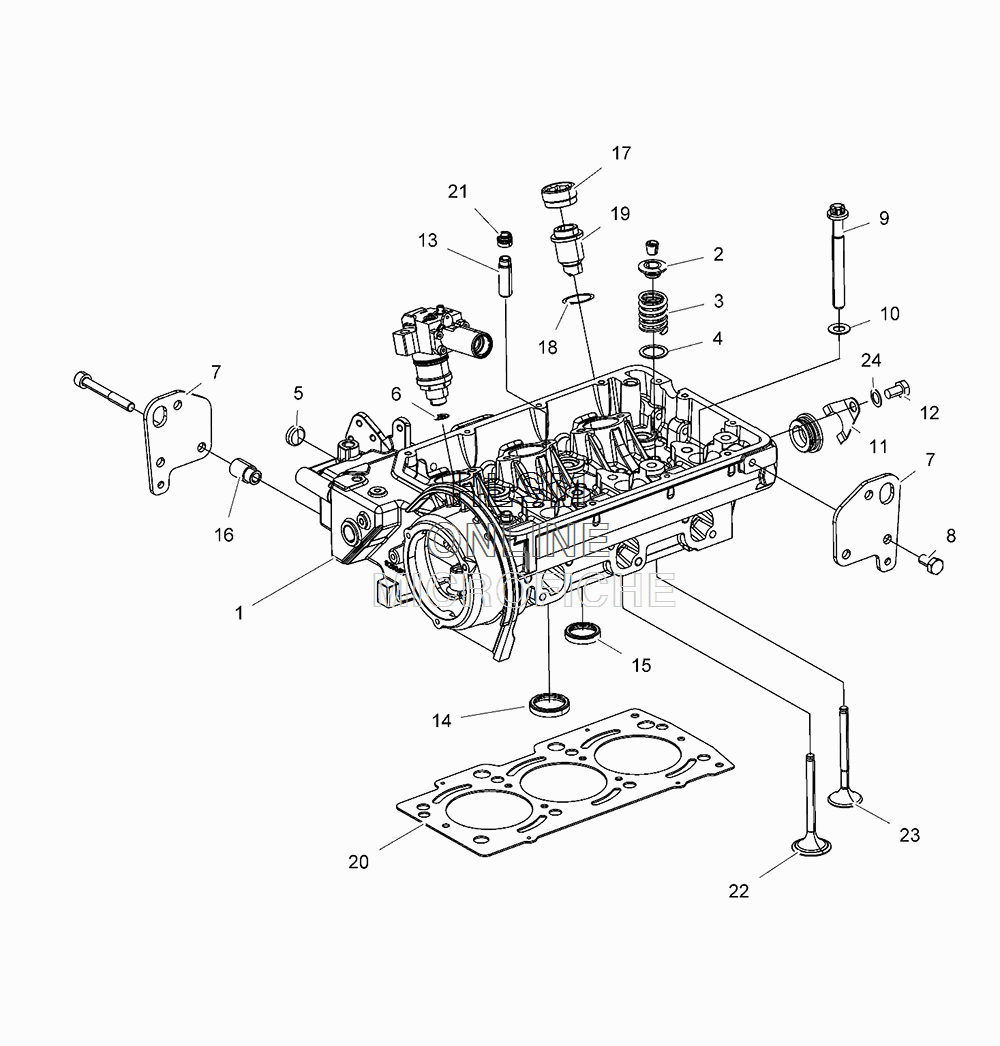

CYLINDER HEAD для Polaris RANGER 1000 DIESEL TR (R18RTED1C1) - 2018 года выпуска
-
№АртикулНазвание
-
13040255 HEAD, CYLINDERHEAD, CYLINDER
-
23040274 RETAINER, W/HALF COLLETSRETAINER, W/HALF COLLETS
-
33040273 SPRING, VALVESPRING, VALVE
-
43040149 WASHER, 19X25X1WASHER, 19X25X1
-
53040190 SHUTTER CAP, D18SHUTTER CAP, D18
-
63040114 SPARK, ARRESTORSPARK, ARRESTOR
-
73040184 LIFTING BRACELIFTING BRACE
-
83040022 SCREW, HXHD M8X16SCREW, HXHD M8X16
-
93040230 SCREW, TORX, M10X90SCREW, TORX, M10X90
-
103040148 WASHER, DIAM. 10.2WASHER, DIAM. 10.2
-
113040108 LEAF, SPRINGLEAF, SPRING
-
123040026 SCREW, M8X14SCREW, M8X14
-
133040100 VALVE GUIDE, STD.VALVE GUIDE, STD.
-
133040254 VALVE GUIDE, +0.50VALVE GUIDE, +0.50
-
143040154 SEAT, INTAKE VALVESEAT, INTAKE VALVE
-
153040155 SEAT, EXHAUST VALVESEAT, EXHAUST VALVE
-
163040061 SPACERSPACER
-
173040070 NUT, LOCK, PRECHAMBERNUT, LOCK, PRECHAMBER
-
183040060 SPACER, PRECHAMBERSPACER, PRECHAMBER
-
193040127 CHAMBER, PRECOMBUSTIONCHAMBER, PRECOMBUSTION
-
203040097 GASKET, HEAD, 1 HOLEGASKET, HEAD, 1 HOLE
-
203040098 GASKET, HEAD, 2 HOLEGASKET, HEAD, 2 HOLE
-
203040099 GASKET, HEAD, 3 HOLEGASKET, HEAD, 3 HOLE
-
213040056 NUT, M10X1.5NUT, M10X1.5
-
223040213 VALVE, INTAKEVALVE, INTAKE
-
233040215 VALVE, EXHAUSTVALVE, EXHAUST
-
243040145 WASHER 8X15X1.5WASHER 8X15X1.5
