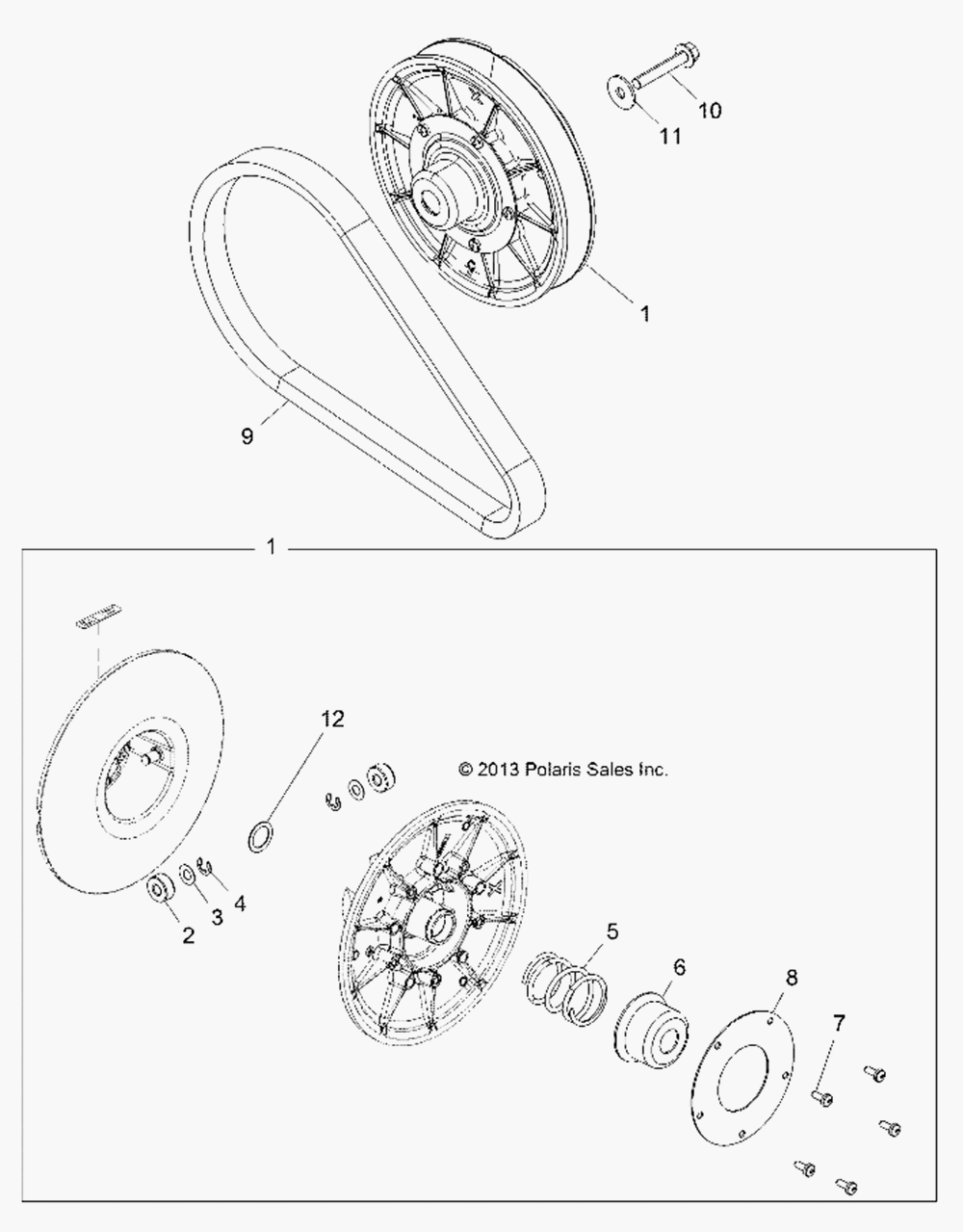

CLUTCH- SECONDARY для Polaris RANGER 500 SAGE GREEN (R18RMA50B1) - 2018 года выпуска
-
№АртикулНазвание
-
11323432 ASM., CLUTCH, DRIVEN (INCL. 2-8, 12)ASM., CLUTCH, DRIVEN (INCL. 2-8, 12)
-
25439831 ROLLER, CLUTCHROLLER, CLUTCH
-
37556226 WASHER, THRUSTWASHER, THRUST
-
47710523 RING, RETAININGRING, RETAINING
-
57044015 SPRING, COMPRESSIONSPRING, COMPRESSION
-
65256403 CUP, SPRING BOSSCUP, SPRING BOSS
-
77519735 SCREWSCREW
-
85258673 PLATE, RETAINERPLATE, RETAINER
-
93211169 BELT-DRIVEBELT-DRIVE
-
107519210 SCREWSCREW
-
117555846 WASHER, FLATWASHER, FLAT
-
127556745 WASHER, THRUSTWASHER, THRUST
-
127556483 WASHER, THRUST (OPT. FOR ALIGNMENT OF CLUTCH)WASHER, THRUST (OPT. FOR ALIGNMENT OF CLUTCH)
