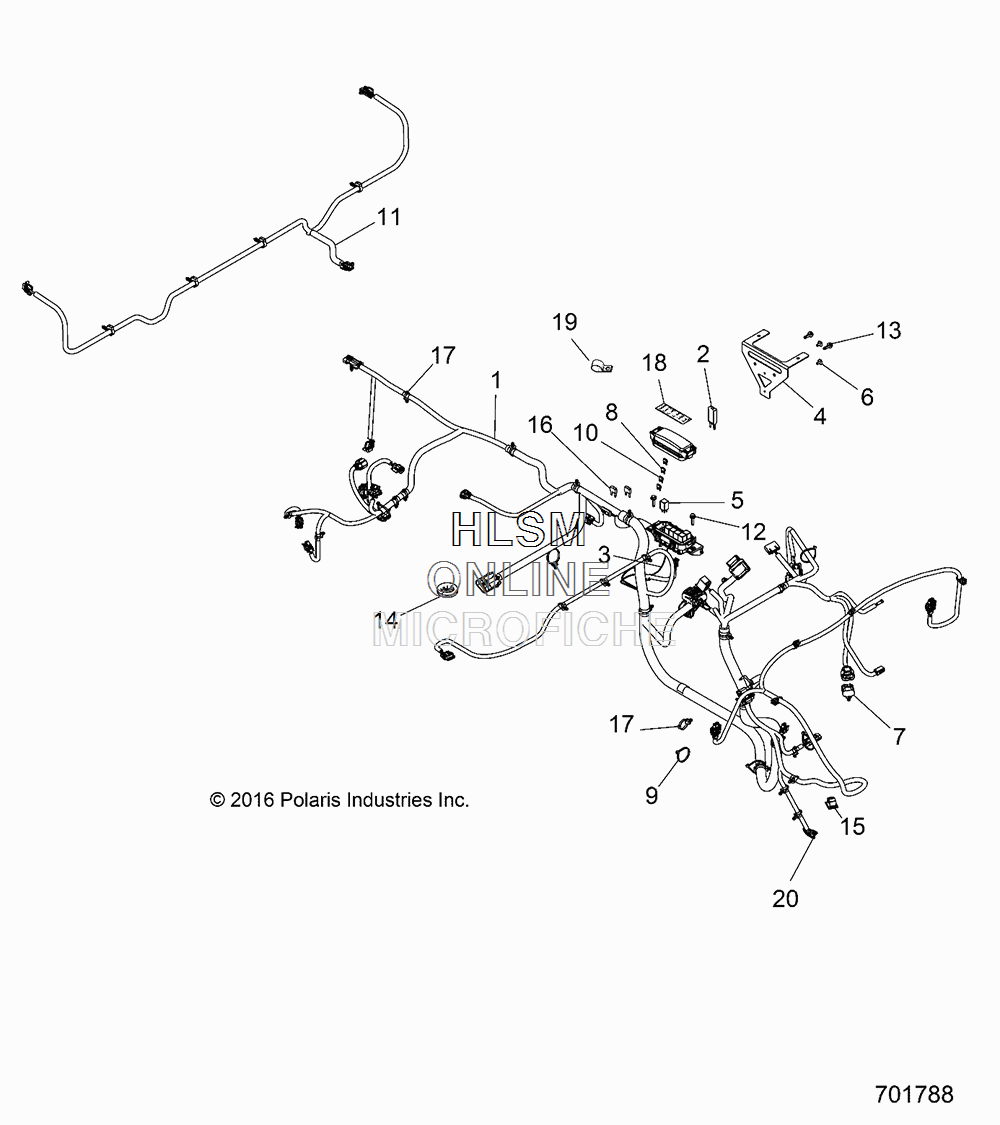

WIRE HARNESSES для Polaris RANGER 500 SOLAR RED (R18RMA50B4) - 2018 года выпуска
-
№АртикулНазвание
-
12413553 HARNESS-CHASSIS, 500 (INCL. 2, 3, 5, 7, 8, 10, 16-18, ALL KITS)HARNESS-CHASSIS, 500 (INCL. 2, 3, 5, 7, 8, 10, 16-18, ALL KITS)
-
24011372 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
32202670 KIT, FUSIBLE LINK, 1MMKIT, FUSIBLE LINK, 1MM
-
45256408-329 BRACKET, MOUNT, FUSE BLOCK, BLACKBRACKET, MOUNT, FUSE BLOCK, BLACK
-
54011283 RELAY, SEALED, 12V, 20ARELAY, SEALED, 12V, 20A
-
67512084 SCREWSCREW
-
74012170 COVER, DIAGNOSTIC W/CLIPCOVER, DIAGNOSTIC W/CLIP
-
82434016 FUSE, 10 AMP, IGNITIONFUSE, 10 AMP, IGNITION
-
97080761 CABLE TIE, 14 INCABLE TIE, 14 IN
-
102434017 FUSE, 20 AMP, PARKFUSE, 20 AMP, PARK
-
112413937 HARNESS, CARGO BOXHARNESS, CARGO BOX
-
127518535 SCREWSCREW
-
137518529 SCREWSCREW
-
145414440 GROMMET, ELECTRICAL, CABGROMMET, ELECTRICAL, CAB
-
157670134 CLIP, WIRE, 1/2 INCLIP, WIRE, 1/2 IN
-
164011652 FUSE, 5A, MINI BLADEFUSE, 5A, MINI BLADE
-
177081496 CLIP, ROUTINGCLIP, ROUTING
-
187180388 LABEL, FUSE BOXLABEL, FUSE BOX
-
197081116 CLAMP, RUBBER COATED, .75 IN, IDCLAMP, RUBBER COATED, .75 IN, ID
