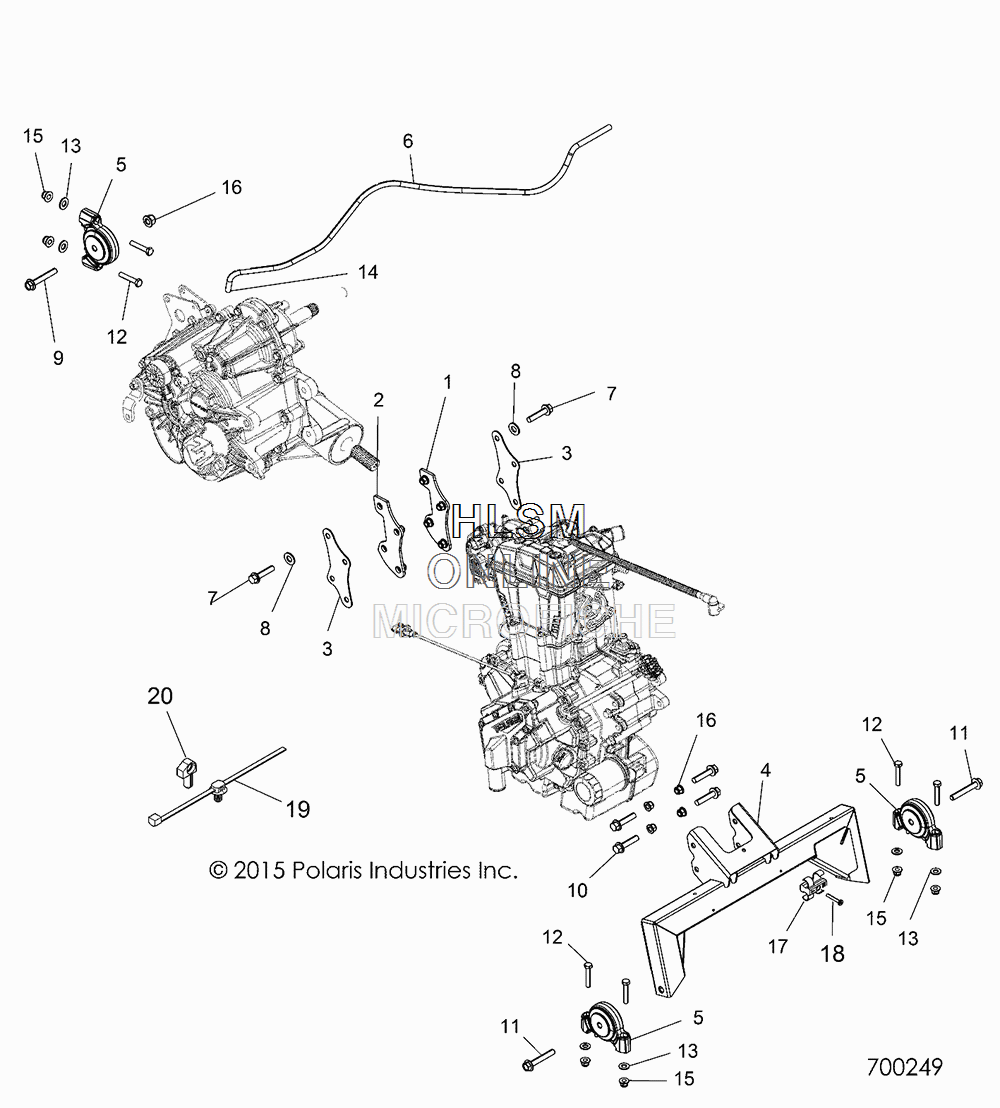

ENGINE AND TRANSMISSION MOUNTING для Polaris RANGER 570 FULL-SIZE SAGE GREEN (CALIF ONLY) (R18RCA57B1) - 2018 года выпуска
-
№АртикулНазвание
-
11018420 TRANSMISSION, INNER, LEFTTRANSMISSION, INNER, LEFT
-
21018421 TRANSMISSION, INNER, RIGHTTRANSMISSION, INNER, RIGHT
-
35255321 BRACKET, COUPLER, TRANSMISSION, OUTERBRACKET, COUPLER, TRANSMISSION, OUTER
-
41018903-329 MOUNT, ENGINE, BLACKMOUNT, ENGINE, BLACK
-
51332955 MOUNT, ISOLATOR, DRIVELINEMOUNT, ISOLATOR, DRIVELINE
-
68450040-46 LINE, FUEL-46 CMLINE, FUEL-46 CM
-
77518971 SCREWSCREW
-
87556153 WASHERWASHER
-
97518563 BOLTBOLT
-
107519332 SCREWSCREW
-
117518563 BOLTBOLT
-
127519097 SCREWSCREW
-
137547030 NUT, PALNUT, PAL
-
147081432 CLAMP, HOSECLAMP, HOSE
-
157547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
167547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
177081689 T-CLIP, T15T-CLIP, T15
-
187512025 SCR-10-24X1.25TFM PN TRX TRI-YSCR-10-24X1.25TFM PN TRX TRI-Y
-
197081496 CLIP-ROUTINGCLIP-ROUTING
-
207670102 CLIP-SILENCER BOX-C, 98 INDYCLIP-SILENCER BOX-C, 98 INDY
