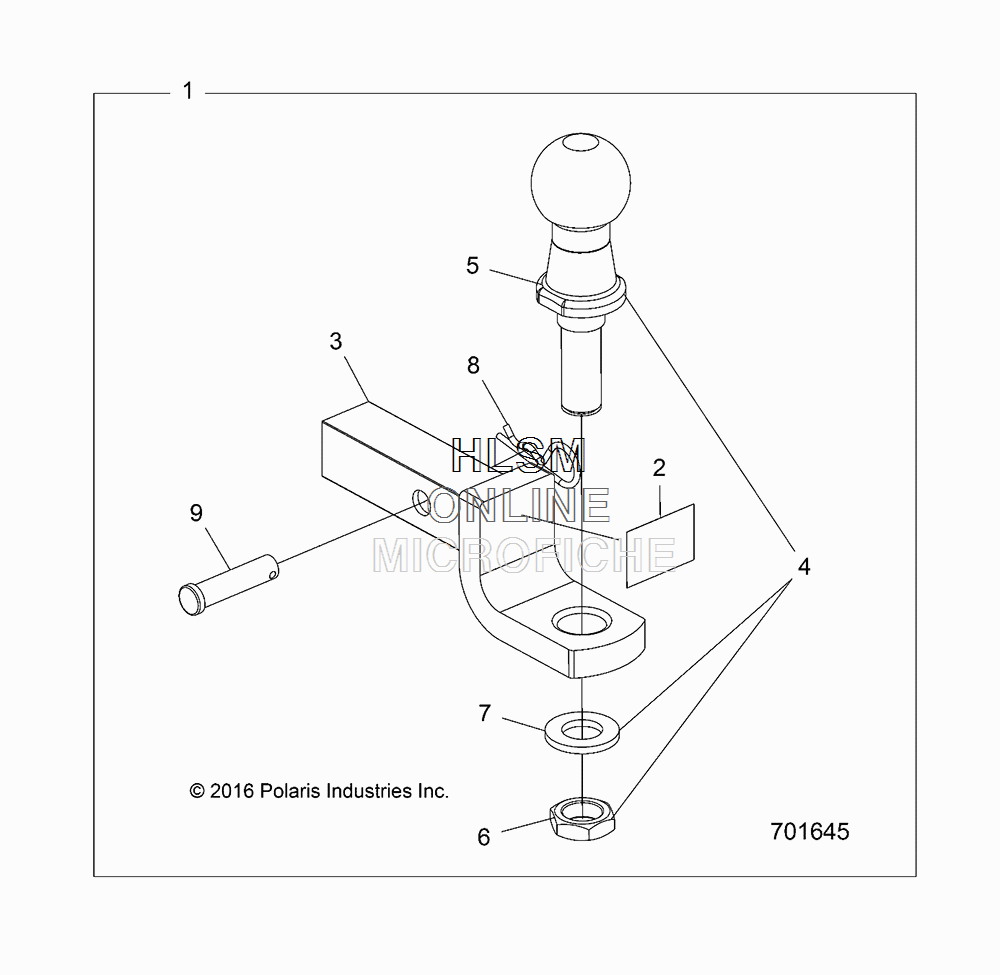

HITCH для Polaris RANGER 570 TR EPS MID SIZE SAGE GREEN (R18RMS57C1) - 2018 года выпуска
-
№АртикулНазвание
-
12881775 HITCH-RGR NOT SHOWN (INCL. ALL)HITCH-RGR NOT SHOWN (INCL. ALL)
-
27184769 DECAL-HITCH, RGR, CERTIFD, REG55DECAL-HITCH, RGR, CERTIFD, REG55
-
31022495-458 WELD-HITCH, RGR, EU, MATTE BLACKWELD-HITCH, RGR, EU, MATTE BLACK
-
42882047 K-BALL, REAR, TRC/ZUG, R55 (INCL 6, 7)K-BALL, REAR, TRC/ZUG, R55 (INCL 6, 7)
-
55910571 HITCH-BALL, REG 55, ATV, TRC/ZUGHITCH-BALL, REG 55, ATV, TRC/ZUG
-
67547019 NUT-HEX, M20X1.5X10NUT-HEX, M20X1.5X10
-
77556311 WASHER-3/4IN, HARDENEDWASHER-3/4IN, HARDENED
-
87661067 CLIP-HITCHPIN .148X3 1/16CLIP-HITCHPIN .148X3 1/16
-
97662279 PIN-TRAILER, RGRPIN-TRAILER, RGR
