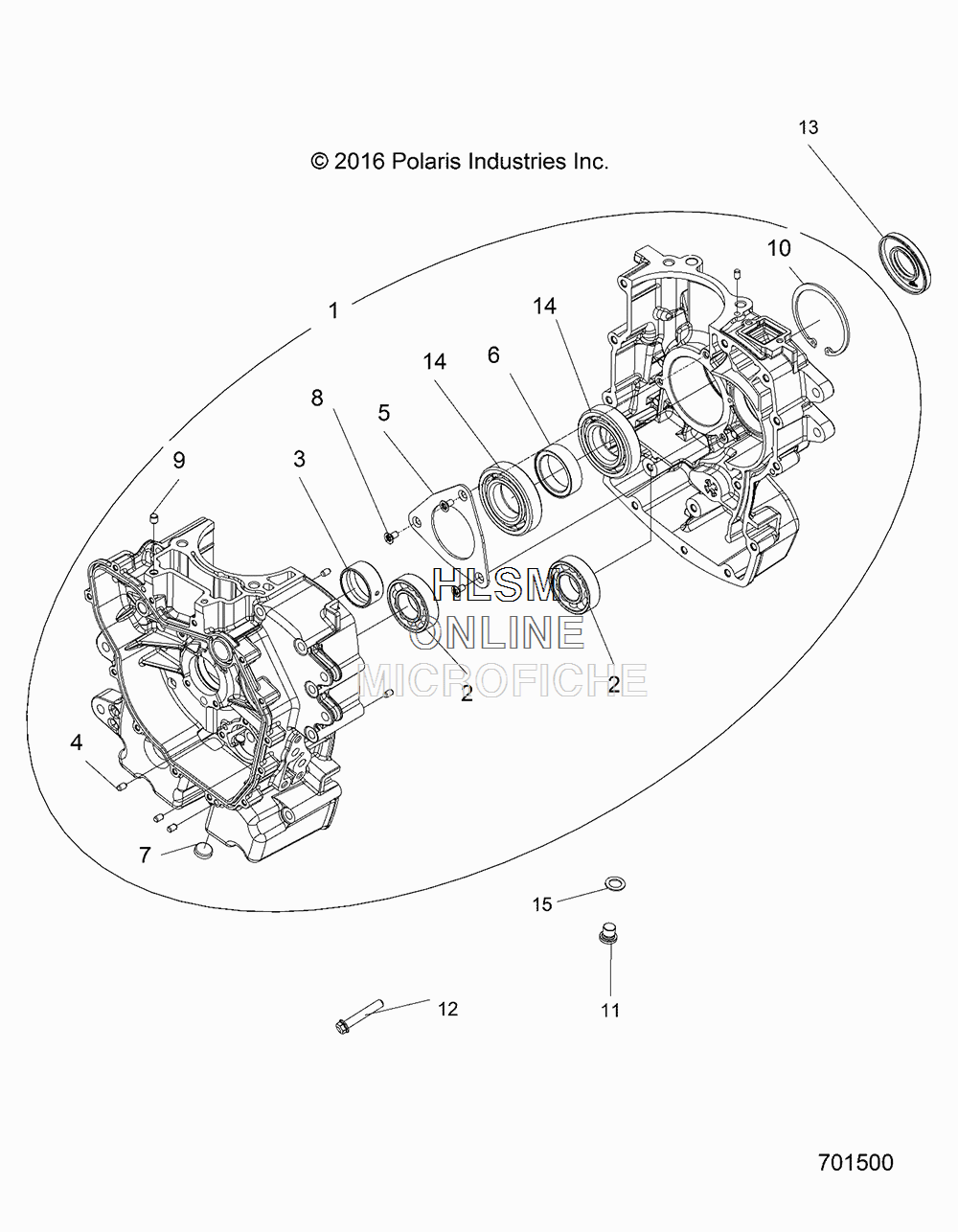

CRANKCASE для Polaris RANGER CREW 570 EPS MD (R18RNE57NV) - 2018 года выпуска
-
№АртикулНазвание
-
12206362 K-CRANKCASE 570 (INCL. 2-10, 14)K-CRANKCASE 570 (INCL. 2-10, 14)
-
23514426 BEARING, BALLBEARING, BALL
-
45136879 PIN, DOWELPIN, DOWEL
-
55256915 PLATE, BEARING RETAINERPLATE, BEARING RETAINER
-
65140919 SPACER, BEARINGSPACER, BEARING
-
77051530 PLUG, EXPANSION, 19MMPLUG, EXPANSION, 19MM
-
87517598 SCREWSCREW
-
97661977 DOWELDOWEL
-
107710660 RING, SNAPRING, SNAP
-
117052306 PLUG, SOCKETPLUG, SOCKET
-
127520104 SCREWSCREW
-
133610171 SEAL, CRANKSHAFTSEAL, CRANKSHAFT
-
143514389 BEARING, BALLBEARING, BALL
-
155812232 WASHER, COPPERWASHER, COPPER
