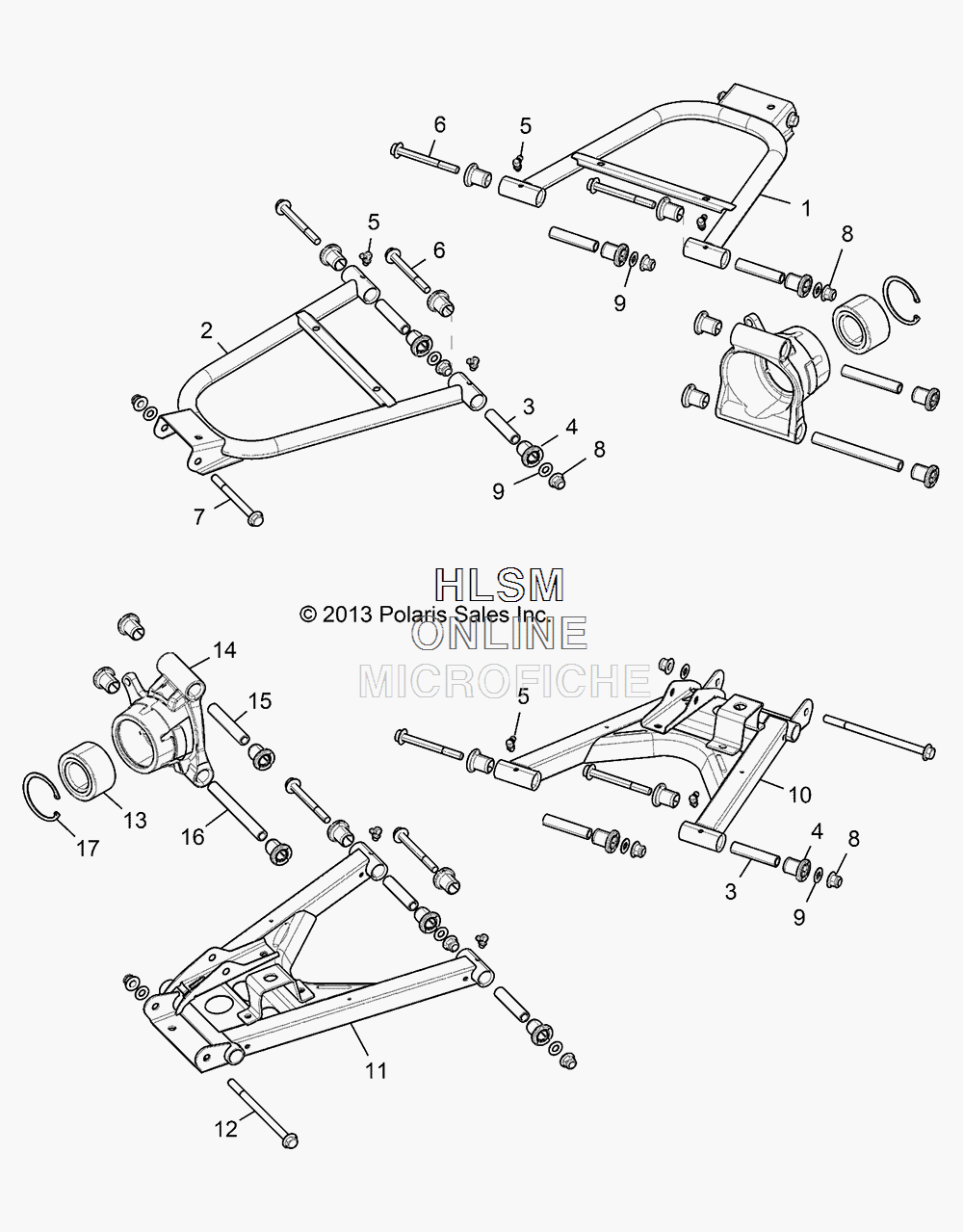

REAR SUSPENSION для Polaris RANGER CREW XP 1000 EPS POLARIS PURSUIT CAMO (R18RVE99A9) - 2018 года выпуска
-
№АртикулНазвание
-
11018465-458 ARM, CONTROL, RR, UPPER, LEFT HAND, MATTE BLACKARM, CONTROL, RR, UPPER, LEFT HAND, MATTE BLACK
-
21018466-458 ARM, CONTROL, RR, UPPER, RIGHT HAND, MATTE BLACKARM, CONTROL, RR, UPPER, RIGHT HAND, MATTE BLACK
-
35138797 SHAFT, PIVOT, 70.99MM, 15.88ODSHAFT, PIVOT, 70.99MM, 15.88OD
-
45439874 BUSHING, STANDARDBUSHING, STANDARD
-
57080510 FITTING, ZERK, 90 DEGFITTING, ZERK, 90 DEG
-
67519043 SCREWSCREW
-
77519365 SCREWSCREW
-
87547333 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
97556153 WASHERWASHER
-
101018460-458 ARM, CONTROL, RR, LOWER, LEFT HAND, BLACKARM, CONTROL, RR, LOWER, LEFT HAND, BLACK
-
111018461-458 ARM, CONTROL, RR, LOWER, RIGHT HAND, BLACKARM, CONTROL, RR, LOWER, RIGHT HAND, BLACK
-
127519042 SCREWSCREW
-
133514635 BEARING, WHEEL, 40X74X40MMBEARING, WHEEL, 40X74X40MM
-
145138052 CARRIER, BEARING, WHEEL, LEFT HANDCARRIER, BEARING, WHEEL, LEFT HAND
-
145138053 CARRIER, BEARING, WHEEL, RIGHT HANDCARRIER, BEARING, WHEEL, RIGHT HAND
-
155138794 SHAFT, PIVOT, 89.71MM, 15.88ODSHAFT, PIVOT, 89.71MM, 15.88OD
-
165138796 SHAFT, PIVOT, 139.1MM, 15.88ODSHAFT, PIVOT, 139.1MM, 15.88OD
-
177710440 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
