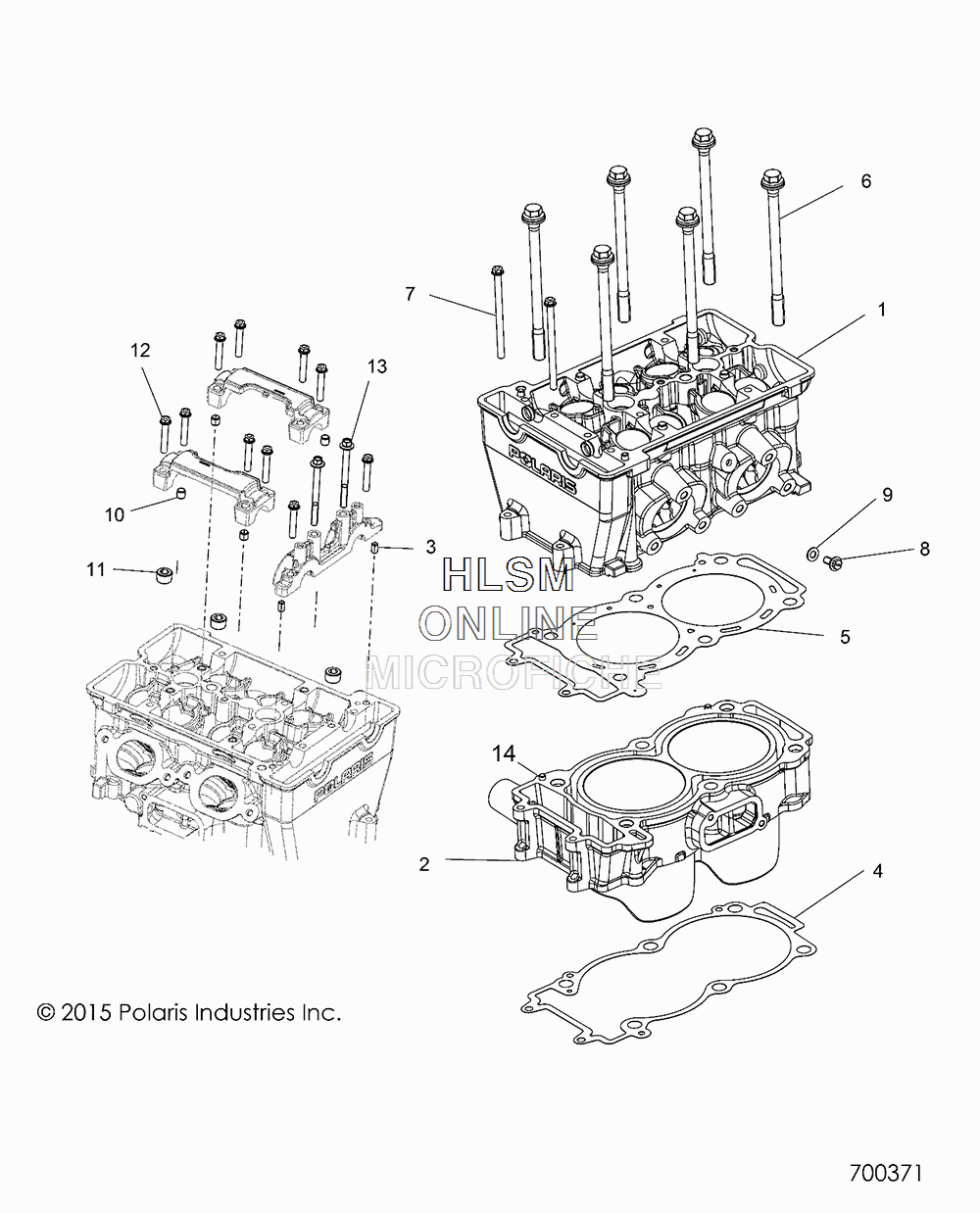

CYLINDER W/ HEAD для Polaris RANGER CREW XP 6P 900 SAGE GREEN (R18RVA87A1) - 2018 года выпуска
-
№АртикулНазвание
-
13022441 ASM-HEAD, MACHINED, DOHC (INCL. HEAD, SEATS, GUIDES, CARRIERS, 3, 10-13)ASM-HEAD, MACHINED, DOHC (INCL. HEAD, SEATS, GUIDES, CARRIERS, 3, 10-13)
-
23023155 ASM-CYLINDER, 875 (INCL. 14)ASM-CYLINDER, 875 (INCL. 14)
-
35132835 PIN-DOWEL, M6X10PIN-DOWEL, M6X10
-
45253037 GASKET, BASEGASKET, BASE
-
55813737 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
67519123 BOLT, HEADBOLT, HEAD
-
77519153 SCREWSCREW
-
87520470 SCREW, BLEEDSCREW, BLEED
-
97555998 WASHER, FLATWASHER, FLAT
-
107661977 DWL-HOL, M8X8DWL-HOL, M8X8
-
117052413 PLUGPLUG
-
127519996 SCR-HXFL-M6X1.0X35 10.9 ZY3SCR-HXFL-M6X1.0X35 10.9 ZY3
-
137519197 SCR-HXFL M6X1.0X70 B18.2.3.4MSCR-HXFL M6X1.0X70 B18.2.3.4M
-
145132835 PIN, DOWELPIN, DOWEL
