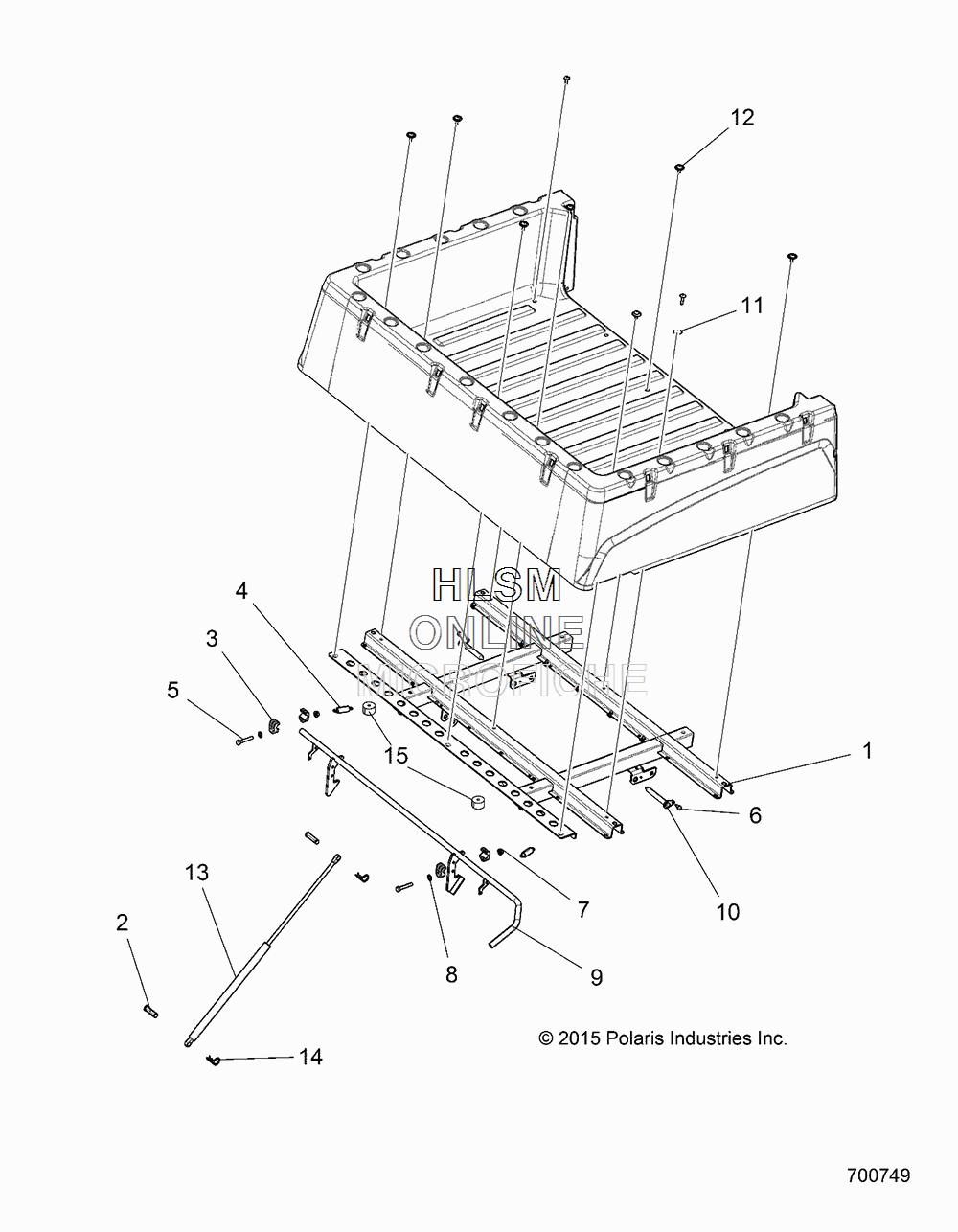

BOX SUPPORT W/SHOCK для Polaris RANGER EV POLARIS PURSUIT CAMO (R17RMAE4G9) - 2018 года выпуска
-
№АртикулНазвание
-
11020597-329 SUPPORT, BOX, SHORT, BLACKSUPPORT, BOX, SHORT, BLACK
-
27661878 PIN, CLEVISPIN, CLEVIS
-
35434226 BUSHING, BOX, LATCHBUSHING, BOX, LATCH
-
47041687 SPRING, EXHAUSTSPRING, EXHAUST
-
57515319 BOLTBOLT
-
67518529 SCREWSCREW
-
77542343 NUT, FLANGENUT, FLANGE
-
87558402 WASHER, FLATWASHER, FLAT
-
91019120-458 LATCH, DOUBLE, MATTE BLACKLATCH, DOUBLE, MATTE BLACK
-
101016695-329 PIN, BOX HINGE, BLACKPIN, BOX HINGE, BLACK
-
117556329 WASHERWASHER
-
127517686 SCREWSCREW
-
137044675 SHOCK-BOX, DUMP, LG, SINGLE LOBESHOCK-BOX, DUMP, LG, SINGLE LOBE
-
147661067 CLIP, HITCH PINCLIP, HITCH PIN
-
155411435 BUMPER-RUBBER, .62 STEALTHBUMPER-RUBBER, .62 STEALTH
