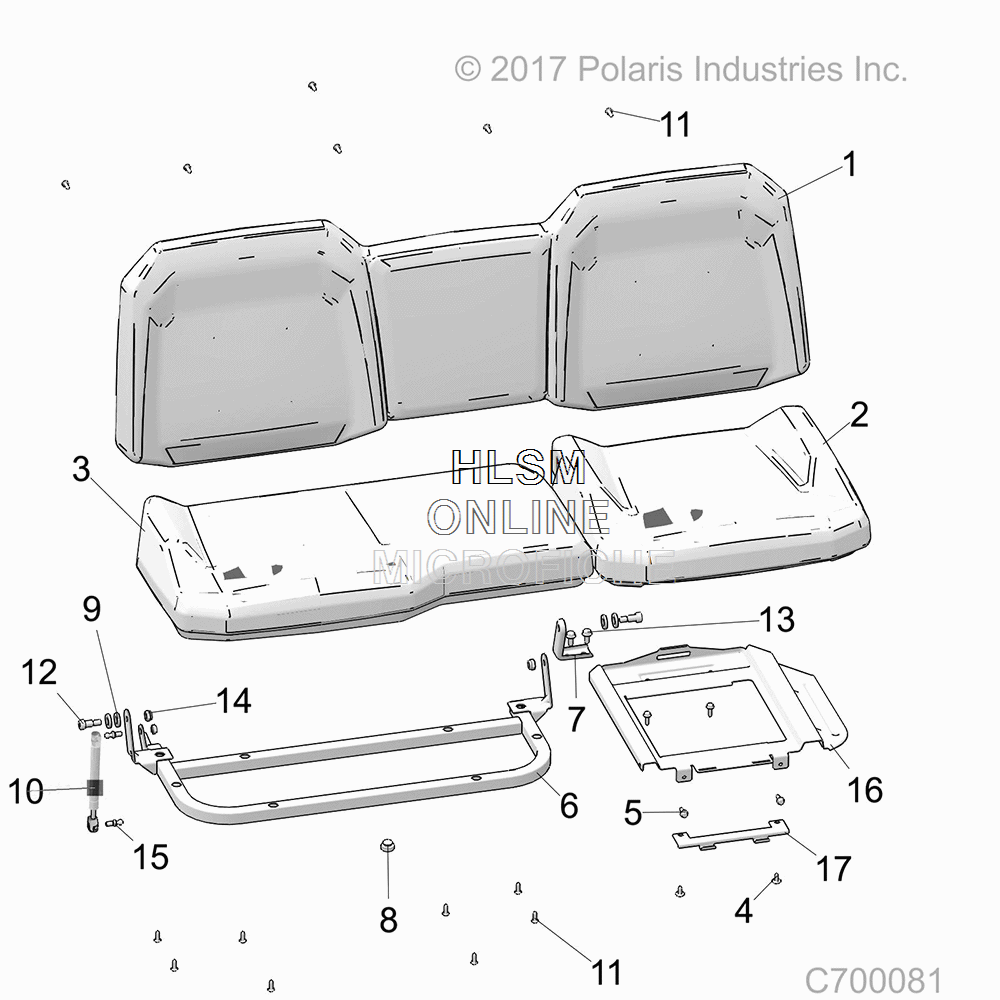

SEAT для Polaris RANGER XP 1000 EPS SAGE GREEN (R18RRE99A1) - 2018 года выпуска
-
№АртикулНазвание
-
12685653-070 ASM-SEAT, RNGR, BACK, BLACKASM-SEAT, RNGR, BACK, BLACK
-
22688636 ASM-SEAT, BTM, 40, VINYL, BLACKASM-SEAT, BTM, 40, VINYL, BLACK
-
32688635 ASM-SEAT, BTM, 60, VINYL, BLACKASM-SEAT, BTM, 60, VINYL, BLACK
-
47518936 SCR-M6X1X16 TR/TX-MSCR-M6X1X16 TR/TX-M
-
57518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BKSCR-M6X1.0X20, HXHD, FLG, TDFM, BK
-
61023099-458 WELD-SEAT BASE, PASS, MATTE BLACKWELD-SEAT BASE, PASS, MATTE BLACK
-
75263494-458 BRKT-SEAT PIVOT, BLACKBRKT-SEAT PIVOT, BLACK
-
85412067 BUMPER-RUBBERBUMPER-RUBBER
-
95813829 WASHER-SEATBELT, RUBBERWASHER-SEATBELT, RUBBER
-
107044799 SHOCK-GAS, 285MMSHOCK-GAS, 285MM
-
117082301 BALL-ENDBALL-END
-
127519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBKSCR-TX TRUSS-#14X3/4, HI/LO ZBK
-
137519355 SCR-SHS-M10X1.5-M12X16 RIESCR-SHS-M10X1.5-M12X16 RIE
-
147519780 SCR-HWH-M8X1.25X20 TAP/R ZPBSCR-HWH-M8X1.25X20 TAP/R ZPB
-
157547442 NUT-HEX M10X1.5 8 ZOD NYLNUT-HEX M10X1.5 8 ZOD NYL
-
165265945-458 BRKT-SEAT SUPPORT, FIXED, BLACKBRKT-SEAT SUPPORT, FIXED, BLACK
-
175265946-458 BRKT-SEAT PIVOT, FIXED, BLACKBRKT-SEAT PIVOT, FIXED, BLACK
