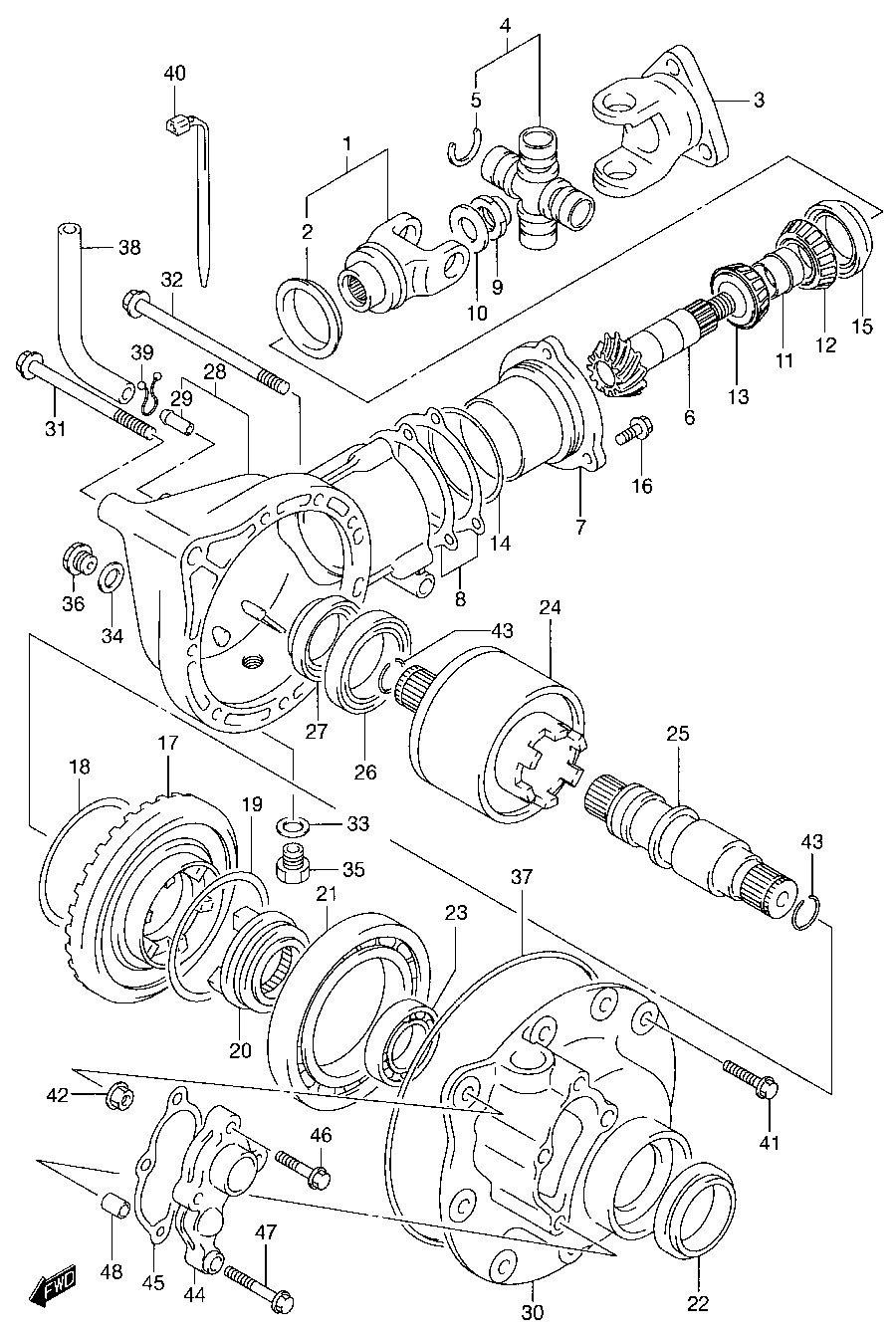

DIFFERENTIAL - FRONT для Suzuki LT-A500FY 4X4 - 2001 года выпуска
-
№АртикулНазвание
-
127130-38F00 YOKE, DRIVE BEVEL GEAR (FRONT)YOKE, DRIVE BEVEL GEAR (FRONT)
-
227592-38F00 ...PLATE, OUTPUT FLANGE...PLATE, OUTPUT FLANGE
-
327161-38F10 YOKE, PROP SHAFT JOINT (FRONT)YOKE, PROP SHAFT JOINT (FRONT)
-
427200-19810 JOINT SET, UNIVERSALJOINT SET, UNIVERSAL
-
509380-20016 CIRCLIP, UNIVERSAL JOINTCIRCLIP, UNIVERSAL JOINT
-
627311-44D60 GEAR, DRIVE BVL (FRONT)GEAR, DRIVE BVL (FRONT)
-
727441-19B00 HOUSING, DRIVE BVL GEAR (FRONT)HOUSING, DRIVE BVL GEAR (FRONT)
-
827445-19810 SHIM SET, DRIVE BVL HOUSING (FRONT) (T:0.15/0.30/0.35/0.40)SHIM SET, DRIVE BVL HOUSING (FRONT) (T:0.15/0.30/0.35/0.40)
-
909159-16004 NUT, DRIVE BVL GEAR (FRONT)NUT, DRIVE BVL GEAR (FRONT)
-
1009160-16026 WASHER, DRIVE BVL GEAR (FRONT) (16X30X3)WASHER, DRIVE BVL GEAR (FRONT) (16X30X3)
-
1109180-25085 SPACER, DRIVE BVL GEAR (FRONT) (25.3X28X28)SPACER, DRIVE BVL GEAR (FRONT) (25.3X28X28)
-
1209265-25024 BEARING DRIVE BVL GEAR (FRONT) (25X52X16.25)BEARING DRIVE BVL GEAR (FRONT) (25X52X16.25)
-
1309265-25013 BEARING, DRIVE BVL GEAR (FRONT) (25X52X19.25)BEARING, DRIVE BVL GEAR (FRONT) (25X52X19.25)
-
1409280-63004 O-RING, DRIVE BVL GEAR HOUSING (ID:62.6,DD:2.4)O-RING, DRIVE BVL GEAR HOUSING (ID:62.6,DD:2.4)
-
1509283-34008 SEAL, DRIVE BVL GEAR JOINT (FRONT) (34X52X9)SEAL, DRIVE BVL GEAR JOINT (FRONT) (34X52X9)
-
1601550-08253 BOLT, DRIVE BVL GEAR HOUSING (FRONT)BOLT, DRIVE BVL GEAR HOUSING (FRONT)
-
1727321-09F50 GEAR, DRIVEN BEVEL (FRONT)GEAR, DRIVEN BEVEL (FRONT)
-
1827326-19810 SHIM SET, DRIVEN BVL GEAR (FRONT) (T:0.35/0.40/0.50/0.60)SHIM SET, DRIVEN BVL GEAR (FRONT) (T:0.35/0.40/0.50/0.60)
-
1927327-34810 SHIM SET, DRIVEN GEAR BEARING (FRONT) (T:0.35/0.40/0.50/0.60)SHIM SET, DRIVEN GEAR BEARING (FRONT) (T:0.35/0.40/0.50/0.60)
-
2027371-19B01 DOG, DIF LOCK SLIDING (FRONT)DOG, DIF LOCK SLIDING (FRONT)
-
2109262-70001 BRG, DRIVEN BEVEL GEAR (FRONT) (70X110X13)BRG, DRIVEN BEVEL GEAR (FRONT) (70X110X13)
-
2209283-34008 SEAL, DRIVEN OUTPUT (LEFT) (FRONT) (34X52X9)SEAL, DRIVEN OUTPUT (LEFT) (FRONT) (34X52X9)
-
2308113-60050 BRG, DRIVEN OUTPUT SFT (LEFT) (FRONT)BRG, DRIVEN OUTPUT SFT (LEFT) (FRONT)
-
2427300-09F70 DIFFERENTIAL ASSY. (FRONT)DIFFERENTIAL ASSY. (FRONT)
-
2527361-09F70 SHAFT, DRIVEN OUTPUT (FRONT)SHAFT, DRIVEN OUTPUT (FRONT)
-
2609262-40006 BRG, DIFFERENTIAL CASE (RIGHT) (40X62X12)BRG, DIFFERENTIAL CASE (RIGHT) (40X62X12)
-
2709283-34008 SEAL, DIF SIDE OUTPUT OIL (FRONT) (34X52X9)SEAL, DIF SIDE OUTPUT OIL (FRONT) (34X52X9)
-
2827450-19B13 HOUSING, DIF GEAR (FRONT)HOUSING, DIF GEAR (FRONT)
-
2909364-08003 ...UNION, BREATHER...UNION, BREATHER
-
3027461-19B10 CASE, DRIVEN GEAR BEARING (FRONT)CASE, DRIVEN GEAR BEARING (FRONT)
-
3109103-10148 BOLT, DIFF HOUSING MOUNTING (FRONT) (10X110)BOLT, DIFF HOUSING MOUNTING (FRONT) (10X110)
-
3209103-10052 BOLT, DIFF HOUSING MOUNTING (FRONT) (10X120)BOLT, DIFF HOUSING MOUNTING (FRONT) (10X120)
-
3309168-14002 GASKET, GEAR OIL DRAIN PLUG (13.8X18.8X0.4)GASKET, GEAR OIL DRAIN PLUG (13.8X18.8X0.4)
-
3409168-16002 GASKET, OIL FILLER PLUG (16X22X2.0)GASKET, OIL FILLER PLUG (16X22X2.0)
-
3509247-14001 PLUG, GR OIL DRAINPLUG, GR OIL DRAIN
-
3609248-16012 PLUG, GR OIL FILLERPLUG, GR OIL FILLER
-
3709280-00022 O-RING, DRIVEN GEAR BEARING CASE (FRONT) (ID:131.4,DD:2.4)O-RING, DRIVEN GEAR BEARING CASE (FRONT) (ID:131.4,DD:2.4)
-
3809352-70103-00B HOSE, BREATHER (7X10.2X2000) (L:2000?700)HOSE, BREATHER (7X10.2X2000) (L:2000?700)
-
3909401-10403 CLIPCLIP
-
4009407-18402 CLAMP (L:165)CLAMP (L:165)
-
4101550-08253 BOLT, DRIVEN GEAR CASE (FRONT)BOLT, DRIVEN GEAR CASE (FRONT)
-
4208319-31103 NUT, DIFF HOUSING HTG (FRONT)NUT, DIFF HOUSING HTG (FRONT)
-
4309381-22007 RING, DRIVE SHAFT (FRONT)RING, DRIVE SHAFT (FRONT)
-
4427471-19B01 COVER, DRIVEN GEAR CASE (FRONT)COVER, DRIVEN GEAR CASE (FRONT)
-
4527473-19B11 GASKET, CASE COVERGASKET, CASE COVER
-
4601547-06253 BOLT, CASE COVERBOLT, CASE COVER
-
4701547-06353 BOLT, CASE COVERBOLT, CASE COVER
-
4804211-09109 PIN, CASE COVERPIN, CASE COVER
