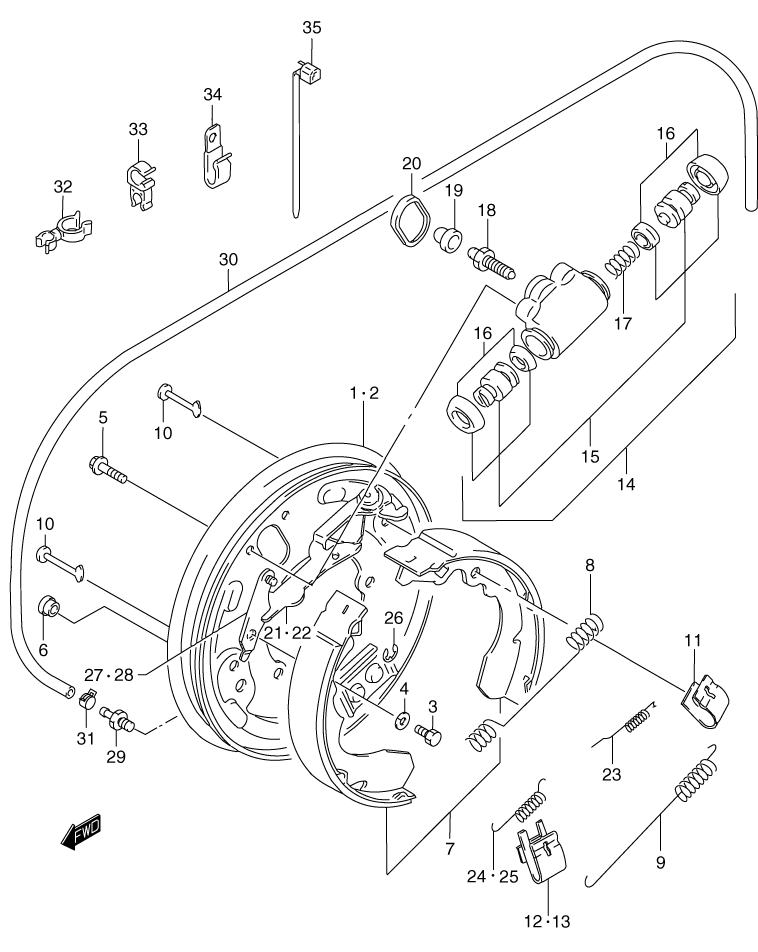

BRAKE - FRONT для Suzuki LT-F300FK1 4X4 - 2001 года выпуска
-
№АртикулНазвание
-
1-254510-39D30 PLATE, BRAKE BACK (RIGHT/BLACK PAINTING)PLATE, BRAKE BACK (RIGHT/BLACK PAINTING)
-
2-254810-39D30 PLATE, BRAKE BACK (LEFT/BLACK PAINTING)PLATE, BRAKE BACK (LEFT/BLACK PAINTING)
-
301500-08163 BOLTBOLT
-
408321-01083 LOCK WASHERLOCK WASHER
-
501550-06103 BOLT, WHEEL CYLINDERBOLT, WHEEL CYLINDER
-
654515-39D00 PLUG, BACK PLATEPLUG, BACK PLATE
-
754400-39840 SHOE SET, BRAKESHOE SET, BRAKE
-
854531-39D01 SPRING, SHOE RETURN UPPERSPRING, SHOE RETURN UPPER
-
954532-39D01 SPRING, SHOE RETURN LOWERSPRING, SHOE RETURN LOWER
-
1053241-82030 PIN, SHOE HOLD DOWNPIN, SHOE HOLD DOWN
-
1153243-85010 SPRING, SHOE HOLD DOWNSPRING, SHOE HOLD DOWN
-
1253245-82031 SPRING, SHOE HOLD DOWN (RIGHT)SPRING, SHOE HOLD DOWN (RIGHT)
-
1353244-82031 SPRING, SHOE HOLD DOWN (LEFT)SPRING, SHOE HOLD DOWN (LEFT)
-
1454540-19B10 CYLINDER ASSY., WHEEL (REAR)CYLINDER ASSY., WHEEL (REAR)
-
1554500-19810 ...PISTON SET...PISTON SET
-
1653400-82811 ......CUP SET, WHEEL CYLINDER......CUP SET, WHEEL CYLINDER
-
1753432-82030 ...SPRING, WHEEL CYLINDER...SPRING, WHEEL CYLINDER
-
1854542-19B00 ...PLUG, BLEEDER...PLUG, BLEEDER
-
1955156-66310 ...CAP, BLEEDER PLUG...CAP, BLEEDER PLUG
-
2053417-82030 GASKET, REAR WHEEL CYLINDERGASKET, REAR WHEEL CYLINDER
-
2154520-39D01 STRUT ASSY., BRAKE (RIGHT)STRUT ASSY., BRAKE (RIGHT)
-
2254820-39D01 STRUT ASSY., BRAKE (LEFT)STRUT ASSY., BRAKE (LEFT)
-
2353714-82030 SPRING, QUADRANTSPRING, QUADRANT
-
2454524-56B00 SPRING, ANTIRATTLE (RIGHT)SPRING, ANTIRATTLE (RIGHT)
-
2554824-56B00 SPRING, ANTIRATTLE (LEFT)SPRING, ANTIRATTLE (LEFT)
-
2653753-82030 RETAINER, BRAKE STOPPERRETAINER, BRAKE STOPPER
-
2754530-39D00 STOPPER, FRONT BRAKE (RIGHT)STOPPER, FRONT BRAKE (RIGHT)
-
2854830-39D00 STOPPER, FRONT BRAKE (LEFT)STOPPER, FRONT BRAKE (LEFT)
-
2954516-39D00 UNION, BREATHERUNION, BREATHER
-
3009352-40703-00B HOSE (L:2000->1250)HOSE (L:2000->1250)
-
3109401-06405 CLIPCLIP
-
3209408-00056 CLAMPCLAMP
-
3309408-00111 CLAMPCLAMP
-
3409403-09325 CLAMPCLAMP
-
3509407-14403 CLAMPCLAMP
