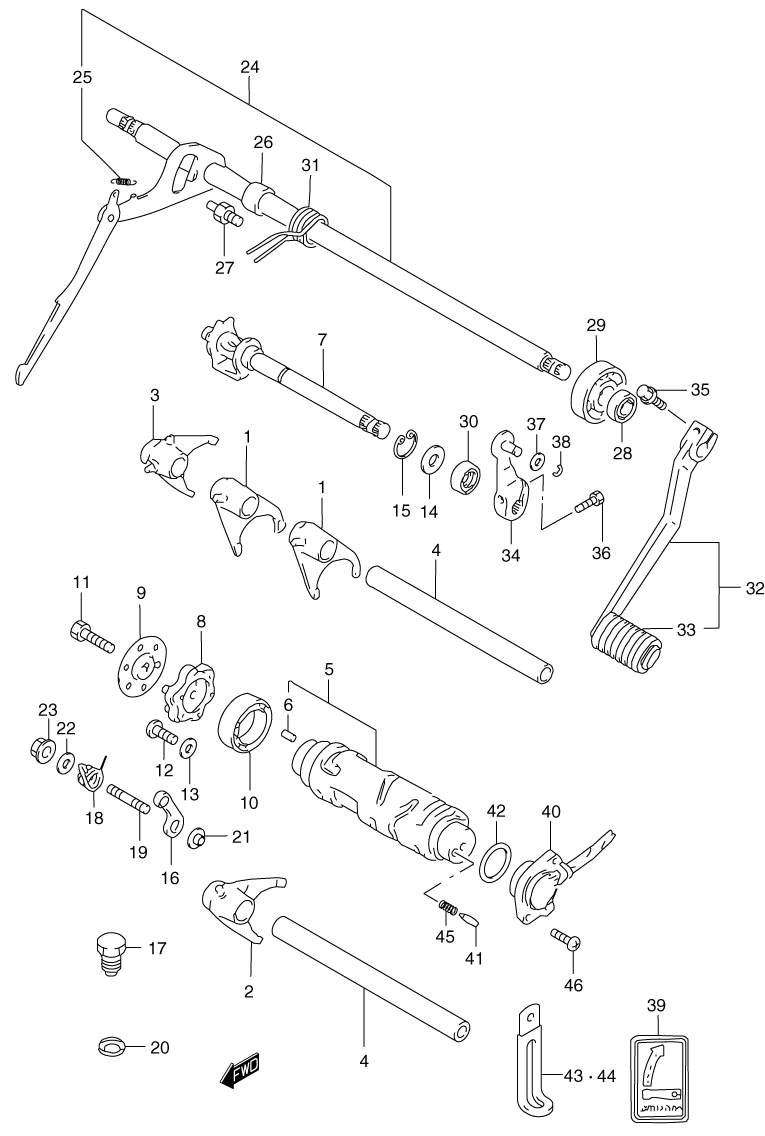

GEAR SHIFTING (1) для Suzuki LT-F500FK1 QUADRUNNER 4x4 - 2001 года выпуска
-
№АртикулНазвание
-
125221-44B00 FORK, GEAR SHIFT,NO.2FORK, GEAR SHIFT,NO.2
-
225231-44D00 FORK, GEAR SHIFT,NO.3FORK, GEAR SHIFT,NO.3
-
325241-44D00 FORK, GEAR SHIFT,REVERSEFORK, GEAR SHIFT,REVERSE
-
425411-38B01 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
525310-44D00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
604221-04089 ...PIN, GEAR SHIFT...PIN, GEAR SHIFT
-
725320-44D50 CAM, REVERSE SHIFTCAM, REVERSE SHIFT
-
825380-44D00 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
925382-44D00 GUIDE, GEAR SHIFT CAM PLATEGUIDE, GEAR SHIFT CAM PLATE
-
1009262-25006 BEARING, GEAR SHIFT CAM (25X47X8)BEARING, GEAR SHIFT CAM (25X47X8)
-
1101500-06203 BOLT, GEAR SHIFT CAM PLATEBOLT, GEAR SHIFT CAM PLATE
-
12-209125-06110 SCREW, CAM BRG RETAINERSCREW, CAM BRG RETAINER
-
1308211-06165 RETAINER, SHIFT CAM BRGRETAINER, SHIFT CAM BRG
-
1408211-12203 WASHER, REVERSE SHIFT CAMWASHER, REVERSE SHIFT CAM
-
1508331-31126 CIRCLIP, REVERSE SHIFT CAMCIRCLIP, REVERSE SHIFT CAM
-
1625350-26D01 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1725350-11000 STOPPER, REVERSE SHIFT CAMSTOPPER, REVERSE SHIFT CAM
-
1825355-16E00 SPRING. SHIFT CAM STOPPER ARMSPRING. SHIFT CAM STOPPER ARM
-
1925356-12C00 SUPPORT, SHIFT CAM STOPPERSUPPORT, SHIFT CAM STOPPER
-
2009168-14002 GASKET, CAM STOPPER HOUSING (13.8X18.8X0.4)GASKET, CAM STOPPER HOUSING (13.8X18.8X0.4)
-
2108211-06141 WASHER, GEAR SHIFT CAMWASHER, GEAR SHIFT CAM
-
2208211-06181 WASHER, CAM STOPPER ARMWASHER, CAM STOPPER ARM
-
2308316-10063 NUT, CAM STOPPER ARM SUPPORTNUT, CAM STOPPER ARM SUPPORT
-
2425510-44D11 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2509443-06074 ...SPRING...SPRING
-
2625516-44D00 SPACER, GEAR SHIFT SHAFTSPACER, GEAR SHIFT SHAFT
-
2725671-36A00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2809283-14006 SEAL, GEAR SHIFT SHAFT OIL (14X22X6)SEAL, GEAR SHIFT SHAFT OIL (14X22X6)
-
3009285-12006 SEAL, REVERSE SHIFT OILSEAL, REVERSE SHIFT OIL
-
3109444-26025 SPRING, GEAR SHIFT RETURNSPRING, GEAR SHIFT RETURN
-
3225600-44D50 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3325652-24401 ...RUBBER...RUBBER
-
3425640-19B00 ARM, REVERSE GEAR SHIFTARM, REVERSE GEAR SHIFT
-
3501550-06203 BOLT, GEAR SHIFT LEVERBOLT, GEAR SHIFT LEVER
-
3601550-06203 BOLT, REVERSE SHIFT ARMBOLT, REVERSE SHIFT ARM
-
3708322-01083 WASHER, GEAR SHIFT CABLE ARMWASHER, GEAR SHIFT CABLE ARM
-
3808332-11063 E RING, GEAR SHIFT CABLE ARME RING, GEAR SHIFT CABLE ARM
-
39-168392-24210 LABEL, GEAR SHIFT PATTERN (USA)LABEL, GEAR SHIFT PATTERN (USA)
-
39-268392-24220 LABEL, GEAR SHIFT PATTERN (CANADA)LABEL, GEAR SHIFT PATTERN (CANADA)
-
40-237720-09F10 BASE ASSY, NEUT SW TERMINALBASE ASSY, NEUT SW TERMINAL
-
4109209-05011 CONTACT, NEUT SWCONTACT, NEUT SW
-
4209280-26007 O RING, NEUT SWO RING, NEUT SW
-
4309404-06429 CLAMP, NEUT SW LEAD (L:60)CLAMP, NEUT SW LEAD (L:60)
-
44-109404-06432 CLAMP, NEUT SW LEAD (L:80,T:1.0)CLAMP, NEUT SW LEAD (L:80,T:1.0)
-
44-209404-06431 CLAMP, NEUT SW LEAD (L:80,T:0.7)CLAMP, NEUT SW LEAD (L:80,T:0.7)
-
4509440-04010 SPRING, NEUT SWSPRING, NEUT SW
-
4602112-05163 SCREW, NEUT SWSCREW, NEUT SW
