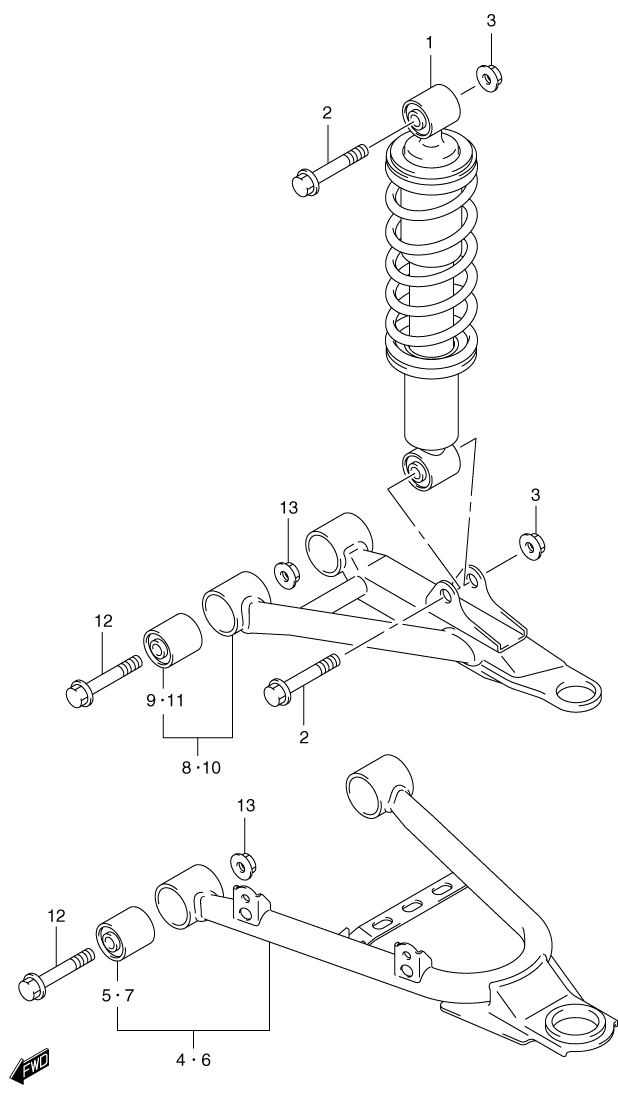

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-A400FK EIGER 4x4 AUTOMATIC - 2002 года выпуска
-
№АртикулНазвание
-
152100-38F10-019 ABSORBER ASSY., FRONT SHOCK (BLACK)ABSORBER ASSY., FRONT SHOCK (BLACK)
-
209103-10126 BOLT (10X48)BOLT (10X48)
-
308319-31103 NUTNUT
-
452410-38820 ARM SET, SUSPENSION LOWER RHARM SET, SUSPENSION LOWER RH
-
509319-10055 ...BUSH (10X35.1X38)...BUSH (10X35.1X38)
-
652420-38820 ARM SET, SUSPENSION LOWER LHARM SET, SUSPENSION LOWER LH
-
709319-10055 ...BUSH (10X35.1X38)...BUSH (10X35.1X38)
-
852430-38820 ARM SET, SUSPENSION UPPER RHARM SET, SUSPENSION UPPER RH
-
909319-10055 ...BUSH (10X35.1X38)...BUSH (10X35.1X38)
-
1052440-38820 ARM SET, SUSPENSION UPPER LHARM SET, SUSPENSION UPPER LH
-
1109319-10055 ...BUSH (10X35.1X38)...BUSH (10X35.1X38)
-
1209103-10301 BOLT (10X60)BOLT (10X60)
-
1309159-10058 NUTNUT
