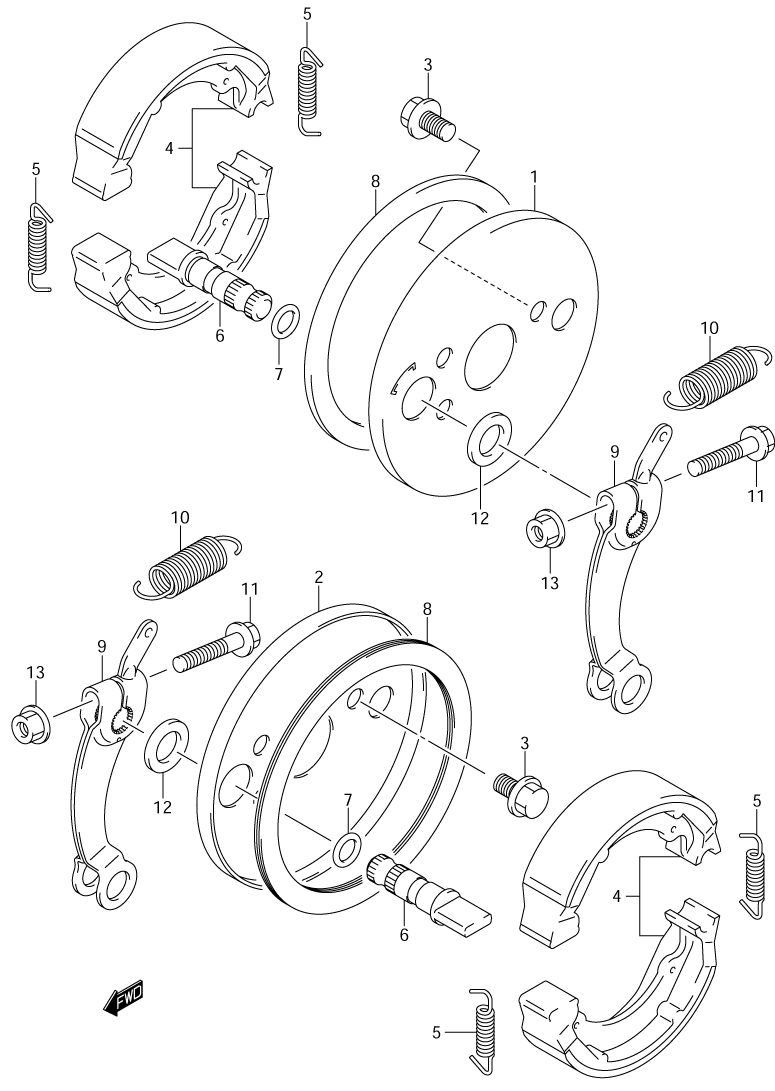

BRAKE - FRONT для Suzuki LT-A50 QUADSPORT - 2002 года выпуска
-
№АртикулНазвание
-
154511-43F00 PLATE, BRAKE ANCHOR (RIGHT)PLATE, BRAKE ANCHOR (RIGHT)
-
254811-43F00 PLATE, BRAKE ANCHOR (LEFT)PLATE, BRAKE ANCHOR (LEFT)
-
301547-06103 BOLT, BRAKE ANCHOR PANELBOLT, BRAKE ANCHOR PANEL
-
454400-40810 SHOE SET, BRAKE (FRONT)SHOE SET, BRAKE (FRONT)
-
509443-06029 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
654441-02301 CAM, BRAKE (FRONT)CAM, BRAKE (FRONT)
-
709280-10016 O-RING (ID:9.8,OD:1.90)O-RING (ID:9.8,OD:1.90)
-
854124-43F00 DUST SEALDUST SEAL
-
954450-43F00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
1009443-10044 SPRING, BRAKE CAM LEVERSPRING, BRAKE CAM LEVER
-
1109103-05012 BOLT, CAM LEVER (5X27)BOLT, CAM LEVER (5X27)
-
1208322-01103 WASHER, CAM LEVERWASHER, CAM LEVER
-
1308316-10053 NUT, CAMLEVERNUT, CAMLEVER
