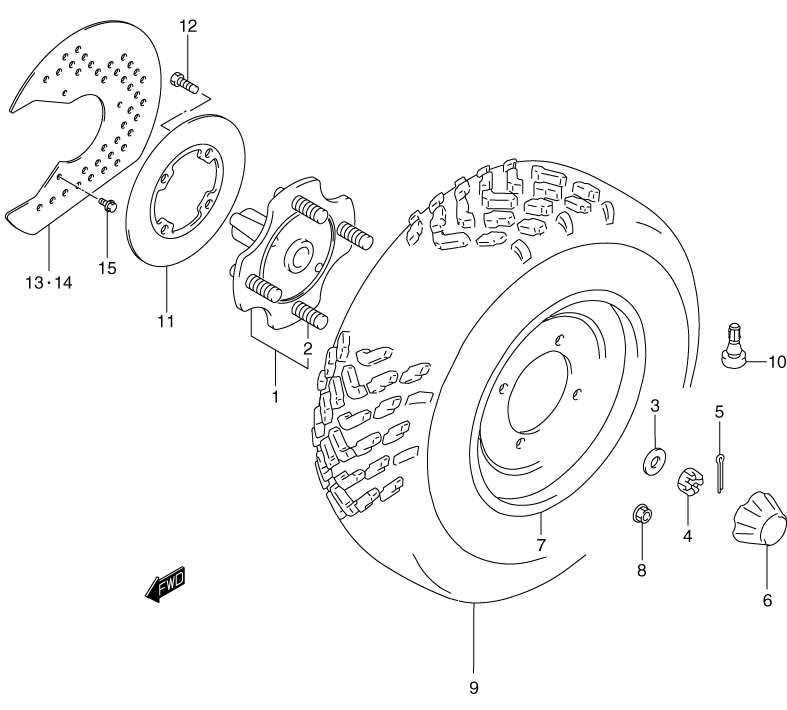

WHEEL - FRONT для Suzuki LT-F300FK KING QUAD 4x4 - 2002 года выпуска
-
№АртикулНазвание
-
154110-39D20 HUB (FRONT)HUB (FRONT)
-
209119-10049 ...BOLT, HUB (10X31.5) (FRONT)...BOLT, HUB (10X31.5) (FRONT)
-
309164-18004 WASHER, HUBWASHER, HUB
-
409141-18008 NUT, HUBNUT, HUB
-
504111-40408 COTTER PINCOTTER PIN
-
654725-39D10 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
755310-39D10-12R RIM, WHEEL (11X6.0AT) (SILVER/FRONT)RIM, WHEEL (11X6.0AT) (SILVER/FRONT)
-
809140-10029 NUT, WHEELNUT, WHEEL
-
955110-19B90 TIRE, T/L (AT24X8-11) (DUNLOP/FRONT)TIRE, T/L (AT24X8-11) (DUNLOP/FRONT)
-
1043130-24A00 VALVE ASSY., WHEEL RIM,TR412VALVE ASSY., WHEEL RIM,TR412
-
1159211-39D00 DISC, BRAKE (FRONT)DISC, BRAKE (FRONT)
-
1209106-08155 BOLTBOLT
-
1359231-39D00 COVER, DISC (FRONT/RIGHT)COVER, DISC (FRONT/RIGHT)
-
1459431-39D00 COVER, DISC (FRONT/LEFT)COVER, DISC (FRONT/LEFT)
-
1509103-06083 BOLTBOLT
