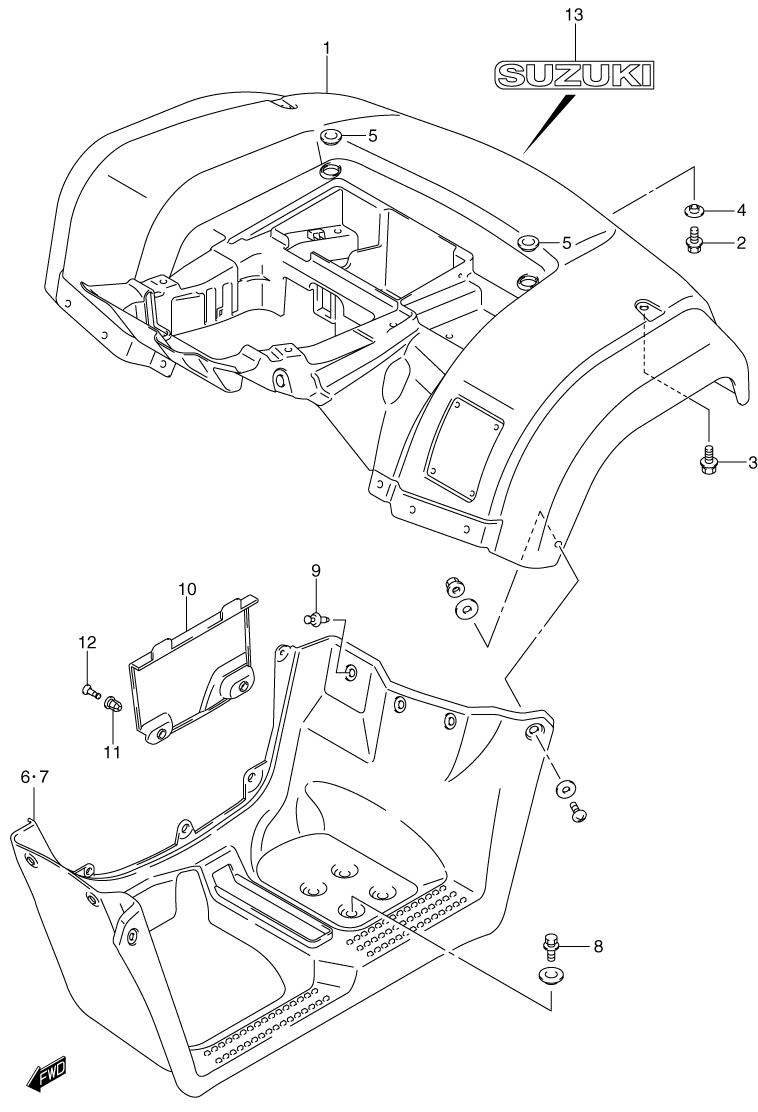

FENDER - REAR для Suzuki LT-F400FK EIGER 4x4 MANUAL - 2002 года выпуска
-
№АртикулНазвание
-
1-163111-38F00-YT8 FENDER (REAR/GREEN) (FOR YT8)FENDER (REAR/GREEN) (FOR YT8)
-
1-263111-38F00-YT9 FENDER (REAR/RED) (FOR YT9)FENDER (REAR/RED) (FOR YT9)
-
209116-06168 BOLT (FRONT)BOLT (FRONT)
-
309116-06147 BOLT, SIDEBOLT, SIDE
-
409180-06290 SPACERSPACER
-
509320-11008 CUSHIONCUSHION
-
663331-38F10-291 MUDGUARD (FRONT/RIGHT/BLACK)MUDGUARD (FRONT/RIGHT/BLACK)
-
763341-38F10-291 MUDGUARD (FRONT/LEFT/BLACK)MUDGUARD (FRONT/LEFT/BLACK)
-
809111-06061 BOLT, GUARDBOLT, GUARD
-
909409-08335 CLIPCLIP
-
1063332-38F10 LIDLID
-
1109409-08329 GROMMETGROMMET
-
1209409-08330 PLUNGERPLUNGER
-
13-168171-44B00-HV6 EMBLEM (REAR/GREEN) (FOR YT8)EMBLEM (REAR/GREEN) (FOR YT8)
-
13-268171-44B00-HV5 EMBLEM (REAR/RED) (FOR YT9)EMBLEM (REAR/RED) (FOR YT9)
