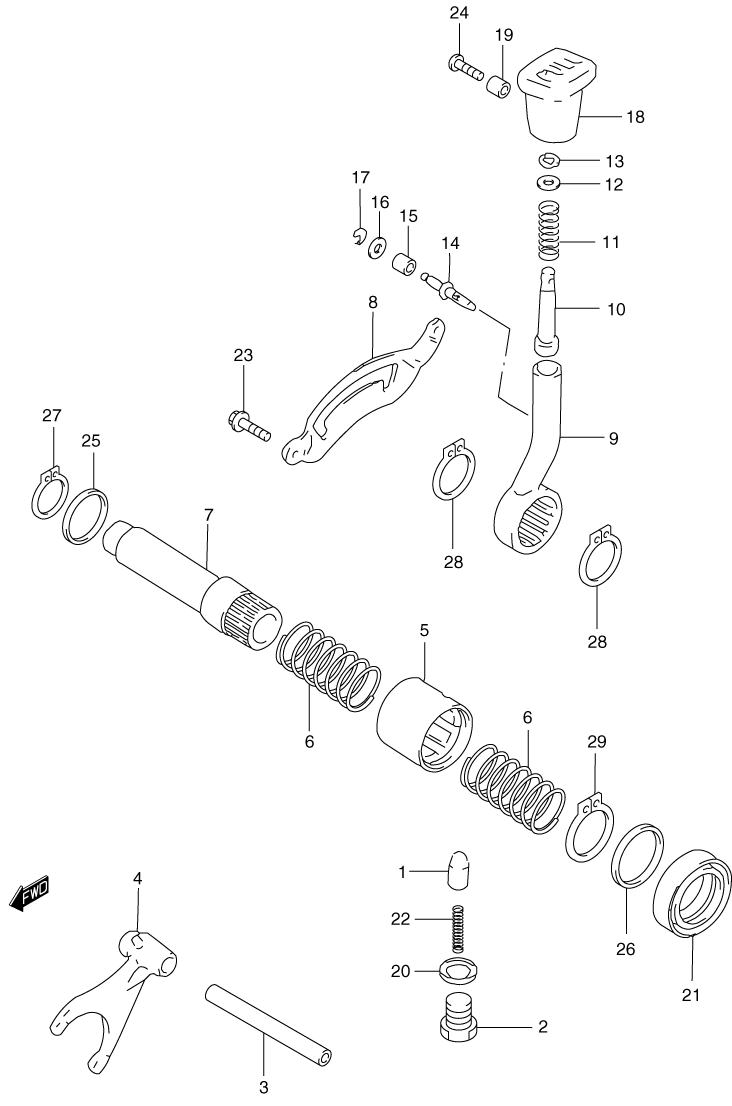

GEAR SHIFTING (2) для Suzuki LT-F500FK QUADRUNNER 4x4 - 2002 года выпуска
-
№АртикулНазвание
-
125351-44D50 STOPPER, SUB T/M SHIFT CAMSTOPPER, SUB T/M SHIFT CAM
-
225352-11010 HOUSING, SHIFT STOPHOUSING, SHIFT STOP
-
325411-14331 SHAFT, GR FORKSHAFT, GR FORK
-
429511-44D00 FORK, GR SHIFTFORK, GR SHIFT
-
529611-44D50 CAM, GR SHIFTCAM, GR SHIFT
-
629612-44D10 SPRINGSPRING
-
7-229621-44D60 SHAFT, GR SHIFTSHAFT, GR SHIFT
-
829711-44D00 PLATE, LEVER STOPPLATE, LEVER STOP
-
929800-44D10 LEVER ASSY, SHIFTLEVER ASSY, SHIFT
-
1029841-44D00 ...ROD, SUB T/M...ROD, SUB T/M
-
1129822-44D10 ...SPRING...SPRING
-
1208211-08121 ...WASHER...WASHER
-
1309381-12003 ...CIRCLIP...CIRCLIP
-
1429831-44D00 ...PIN...PIN
-
1529851-44D00 ...ROLLER...ROLLER
-
1608322-01043 ...WASHER...WASHER
-
1708332-11033 ...E RING...E RING
-
1829911-44D00 KNOBKNOB
-
1909180-04012 SPACER, SUB T/M GEARSPACER, SUB T/M GEAR
-
2009168-14002 GASKET, CAM STOP (13.8X18.8X0.4)GASKET, CAM STOP (13.8X18.8X0.4)
-
2109283-30044 OIL SEAL, SHIFT STOP (30X56X6)OIL SEAL, SHIFT STOP (30X56X6)
-
2229613-44D00 SPRINGSPRING
-
2301550-06163 BOLT, STOPPER PLTBOLT, STOPPER PLT
-
2402112-34163 SCREW, SHIFT KNOBSCREW, SHIFT KNOB
-
2509181-25139 WASHER, CAM STOP (25X32X1.0)WASHER, CAM STOP (25X32X1.0)
-
2609181-30139 WASHER, SHAFT,LH (30X38X1.0)WASHER, SHAFT,LH (30X38X1.0)
-
2708331-31256 CIRCLIP, CAM SPRINGCIRCLIP, CAM SPRING
-
2808331-31296 CIRCLIP, SHIFT LEVERCIRCLIP, SHIFT LEVER
-
2908331-31306 CIRCLIP, SHAFT,LHCIRCLIP, SHAFT,LH
