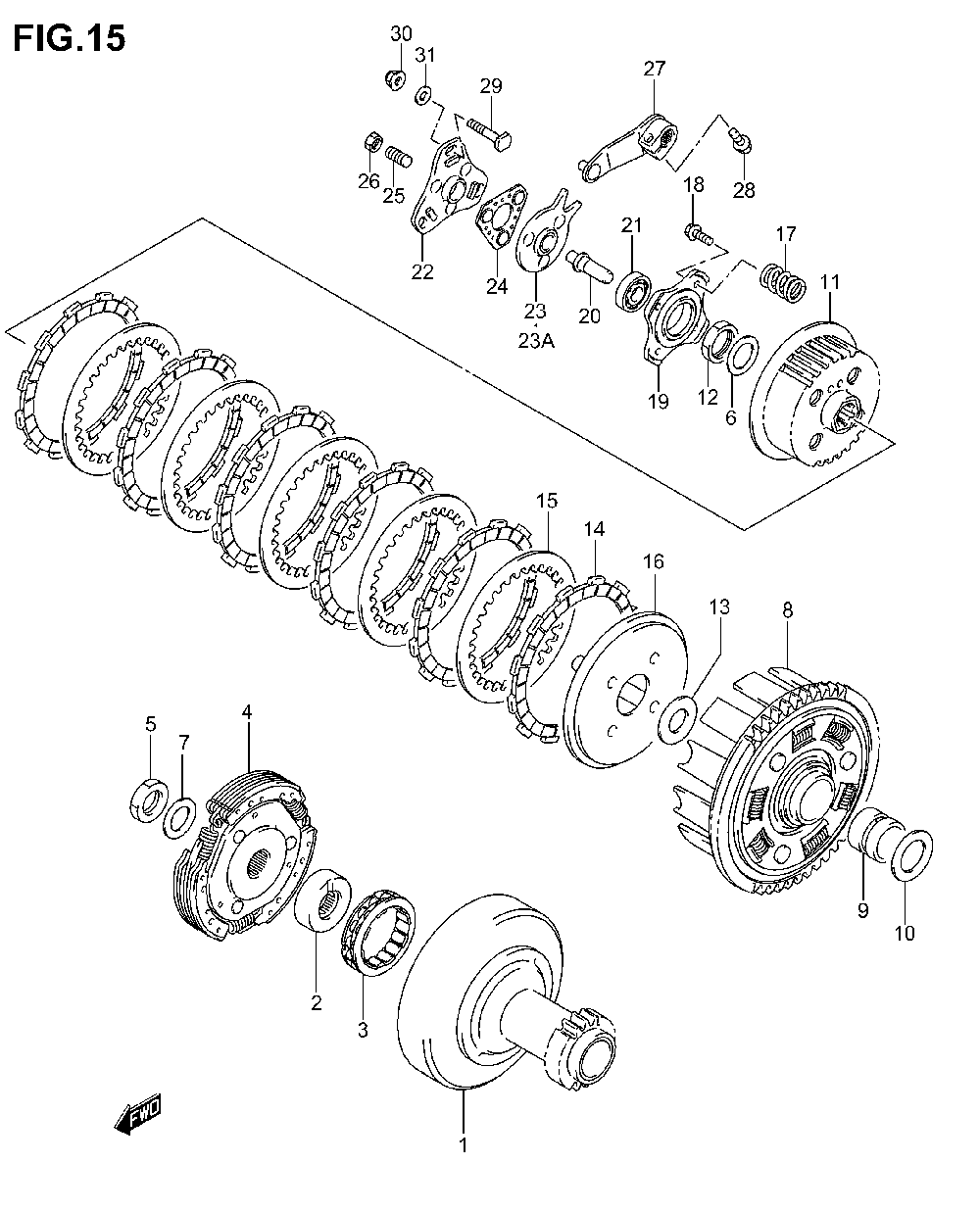

CLUTCH для Suzuki OZARK 250 - 2002 года выпуска
-
№АртикулНазвание
-
121110-05G00 GEAR, PRIMARY DRIVE (NT:20)GEAR, PRIMARY DRIVE (NT:20)
-
221631-19B11 RACE, INNERRACE, INNER
-
321273-19B10 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
421500-05G00 CLUTCH ASSYCLUTCH ASSY
-
509140-18012 NUTNUT
-
609164-20007 LOCK WASHER (ID:20.1)LOCK WASHER (ID:20.1)
-
709164-18007 LOCK WASHER (ID:18.3)LOCK WASHER (ID:18.3)
-
821200-05G00 GEAR ASSY, PRIMARY (NT:65)GEAR ASSY, PRIMARY (NT:65)
-
909180-22035 SPACER (22X28X23)SPACER (22X28X23)
-
1009181-22251 WASHER (22X36X1.0)WASHER (22X36X1.0)
-
1121410-24500 HUB, CLUTCH (UP TO JSAAJ51A22100696)HUB, CLUTCH (UP TO JSAAJ51A22100696)
-
1121410-05G00 HUB, CLUTCH (JSAAJ51A22100697 AND ABOVE)HUB, CLUTCH (JSAAJ51A22100697 AND ABOVE)
-
1209140-20001 NUTNUT
-
1308211-20323 WASHERWASHER
-
1421441-22A01 PLATE, DRIVEPLATE, DRIVE
-
1521451-36200 PLATE, DRIVEN (T:2.0)PLATE, DRIVEN (T:2.0)
-
1621462-24501 DISC, PRESSUREDISC, PRESSURE
-
1709440-19017 SPRING (UP TO JSAAJ51A22100696)SPRING (UP TO JSAAJ51A22100696)
-
1721413-05G10 SPRING (JSAAJ51A22100697 AND ABOVE)SPRING (JSAAJ51A22100697 AND ABOVE)
-
1801550-06203 BOLTBOLT
-
1921465-24500 PLATE, RELEASEPLATE, RELEASE
-
2023121-05G00 PIECE, PUSHPIECE, PUSH
-
2109262-12001 BEARING (12X28X8)BEARING (12X28X8)
-
2223231-05G00 GUIDE, BALL OUTERGUIDE, BALL OUTER
-
2323211-24201 GUIDE, BALL INNERGUIDE, BALL INNER
-
23A23211-05G00 GUIDE, BALL INNERGUIDE, BALL INNER
-
2423250-31003 BALL, RELEASEBALL, RELEASE
-
2509134-08009 SCREW, ADJUSTERSCREW, ADJUSTER
-
2609140-08019 NUT, ADJUSTERNUT, ADJUSTER
-
2723220-24500 ARM, RELEASE (UP TO JSAAJ51A22100696)ARM, RELEASE (UP TO JSAAJ51A22100696)
-
2723220-05G00 ARM, RELEASE (JSAAJ51A22100697 AND ABOVE)ARM, RELEASE (JSAAJ51A22100697 AND ABOVE)
-
2801500-06203 BOLTBOLT
-
2909119-06103 BOLTBOLT
-
3008313-20063 NUTNUT
-
3109168-06023 SEAL, BOLTSEAL, BOLT
