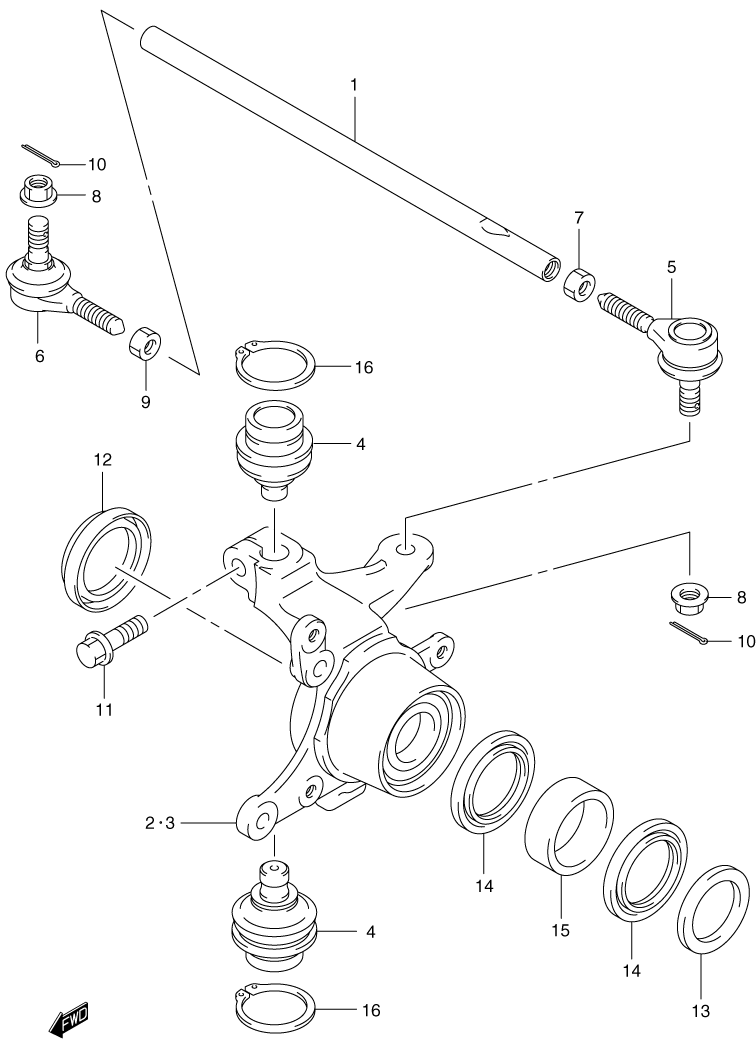

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-A500F VINSON 4x4 AUTOMATIC - 2003 года выпуска
-
№АртикулНазвание
-
151281-03G00 TIE ROD, STEERINGTIE ROD, STEERING
-
251231-03G10 KNUCKLE, STEERING (RIGHT)KNUCKLE, STEERING (RIGHT)
-
351241-03G10 KNUCKLE, STEERING (LEFT)KNUCKLE, STEERING (LEFT)
-
451210-38F00 END, KNUCKLE STEERINGEND, KNUCKLE STEERING
-
5-251260-07G01 ROD, END, RROD, END, R
-
6-251270-07G01 ROD, END, LROD, END, L
-
709140-10043 NUT, TIE ROD (RIGHT THREAD)NUT, TIE ROD (RIGHT THREAD)
-
808319-31103 NUT, ROD ENDNUT, ROD END
-
909140-10027 NUT, TIE ROD (LEFT THREAD)NUT, TIE ROD (LEFT THREAD)
-
1004111-20208 COTTER PIN, ROD ENDCOTTER PIN, ROD END
-
1151233-09F00 BOLT, KNUCKLE (10X30)BOLT, KNUCKLE (10X30)
-
1209283-38012 DUST SEAL, INNER (38X55X8)DUST SEAL, INNER (38X55X8)
-
1309283-38022 DUST SEAL, OUTER (38X55X6.4)DUST SEAL, OUTER (38X55X6.4)
-
1408123-60067 BEARINGBEARING
-
1554731-03G00 SPACER, HUB BEARINGSPACER, HUB BEARING
-
1608331-31306 CLIPCLIP
