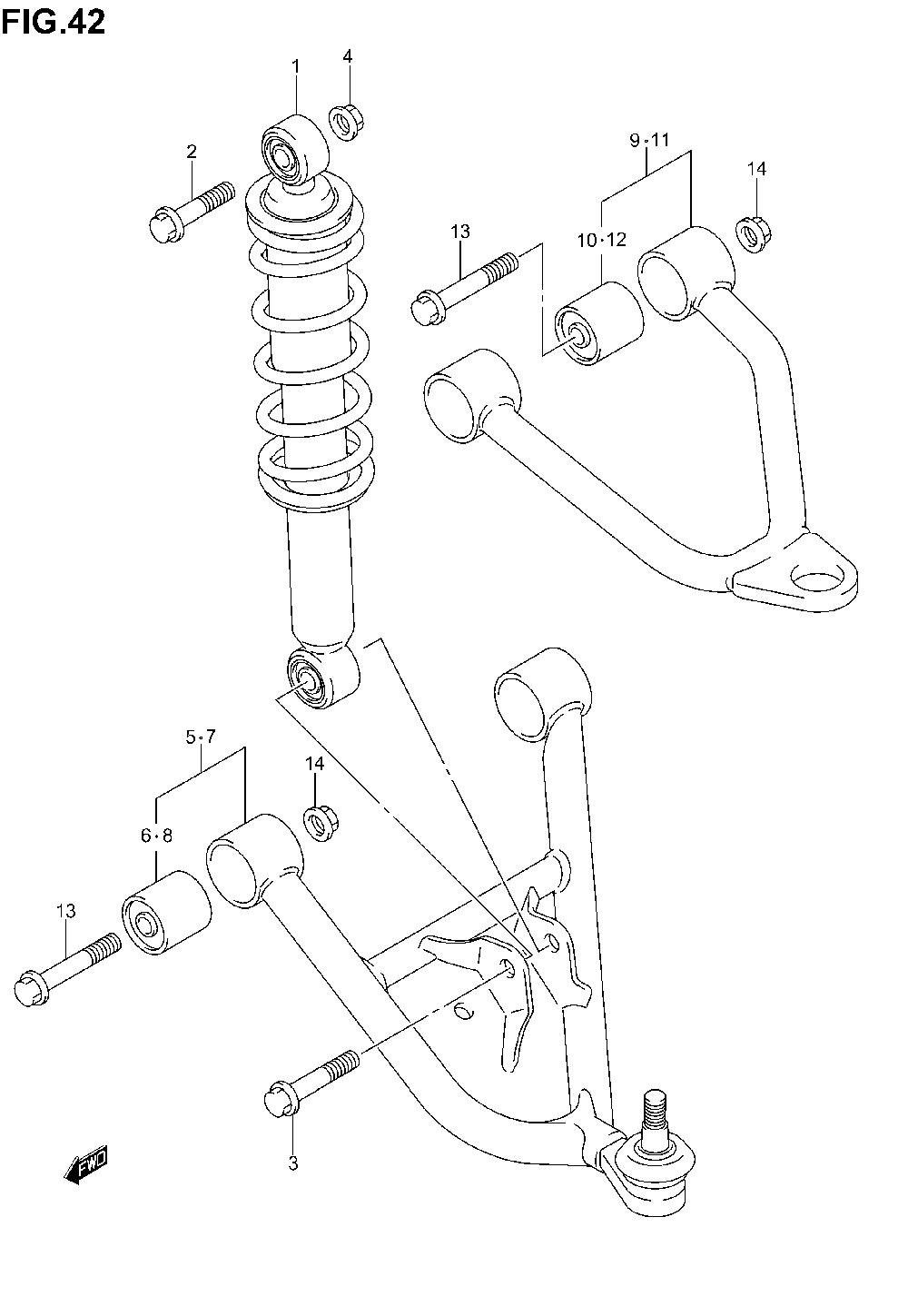

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-F250 OZARK - 2003 года выпуска
-
№АртикулНазвание
-
152100-05G00-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10019 BOLT, UPPERBOLT, UPPER
-
309103-10126 BOLT, LOWERBOLT, LOWER
-
408319-31107 NUTNUT
-
552410-05810 ARM SET, SUSPENSION LOWER RIGHT HANDARM SET, SUSPENSION LOWER RIGHT HAND
-
609319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
752420-05810 ARM SET, SUSPENSION LOWER LEFT HANDARM SET, SUSPENSION LOWER LEFT HAND
-
809319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
952430-05810 ARM SET, SUSPENSION UPPER RIGHT HANDARM SET, SUSPENSION UPPER RIGHT HAND
-
1009319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
1152440-05810 ARM SET, SUSPENSION UPPER LEFT HANDARM SET, SUSPENSION UPPER LEFT HAND
-
1209319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
1309103-10301 BOLT (10X60)BOLT (10X60)
-
1409159-10058 NUTNUT
