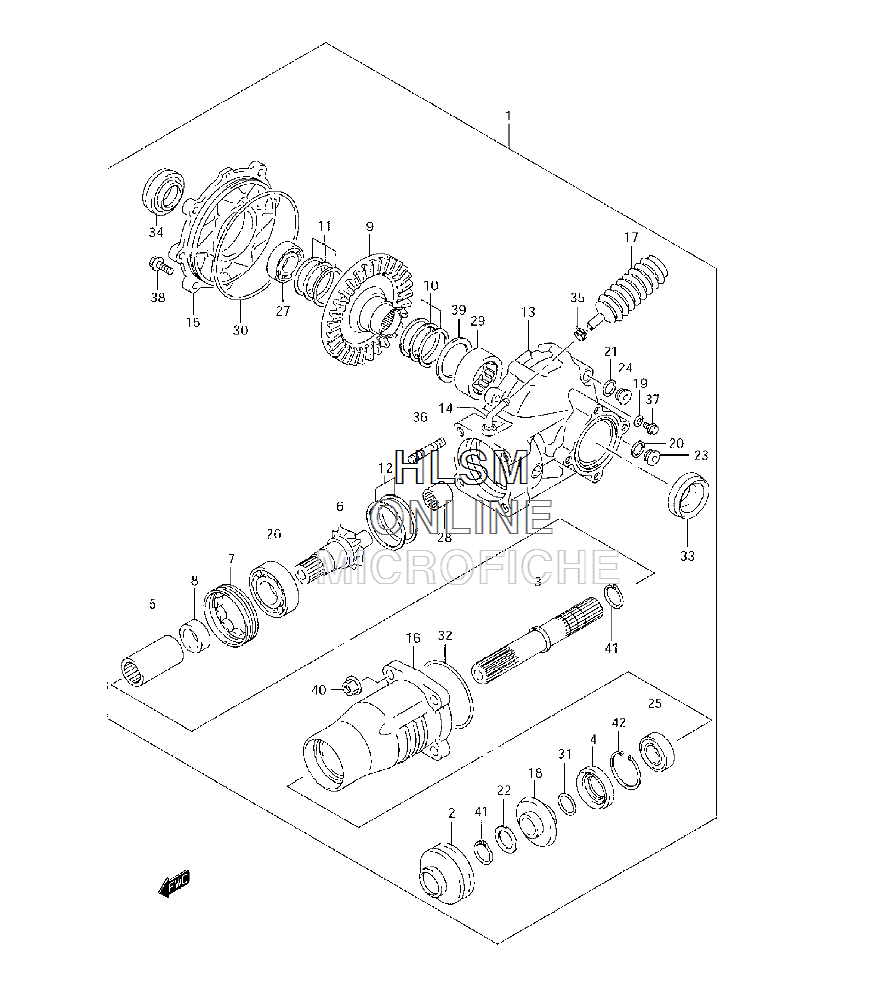

DIFFERENTIAL - REAR для Suzuki LT-F400 EIGER 4X2 MANUAL - 2003 года выпуска
-
№АртикулНазвание
-
127300-38861 GEAR SET, REAR FINAL (INCL. 2-42)GEAR SET, REAR FINAL (INCL. 2-42)
-
227153-44D80 BOOT, RR FINAL DRIVE SHAFTBOOT, RR FINAL DRIVE SHAFT
-
327155-38F00 SHAFT, REAR FINAL DRIVESHAFT, REAR FINAL DRIVE
-
427156-38F00 SEAL, FINAL DRIVE BRGSEAL, FINAL DRIVE BRG
-
527157-38F00 JOINT, REAR FINAL DRIVEJOINT, REAR FINAL DRIVE
-
627311-38F00 GEAR, REAR FINAL DRIVE NT:10GEAR, REAR FINAL DRIVE NT:10
-
727312-38F00 STOPPER, FINAL DRIVESTOPPER, FINAL DRIVE
-
827316-38F00 SPACER, REAR FINAL DRIVESPACER, REAR FINAL DRIVE
-
927321-38F00 GEAR, FINAL DRIVEN BEVEL NT:36GEAR, FINAL DRIVEN BEVEL NT:36
-
1027326-09810 SHIM SET, FINAL DRIVEN LEFT HANDSHIM SET, FINAL DRIVEN LEFT HAND
-
1127326-18810 SHIM SET, FINAL DRIVEN RIGHT HANDSHIM SET, FINAL DRIVEN RIGHT HAND
-
1227445-24810 SHIM SET, FINAL DRIVESHIM SET, FINAL DRIVE
-
1327450-38F00 CASE, REAR FINAL GEARCASE, REAR FINAL GEAR
-
1409364-08009 UNION, BREATHERUNION, BREATHER
-
1527461-38F00 CASE, REAR FINAL DRIVEN RIGHT HANDCASE, REAR FINAL DRIVEN RIGHT HAND
-
1627471-38F50 HOUSING, RR FINAL DRIVEHOUSING, RR FINAL DRIVE
-
1727491-38F00 CASE, BREATHERCASE, BREATHER
-
1827590-38F00 COLLAR, OUTPUT OIL SEALCOLLAR, OUTPUT OIL SEAL
-
1909168-06018 GASKET, OIL CHECK BOLTGASKET, OIL CHECK BOLT
-
2009168-16002 GASKET, OIL DRAINGASKET, OIL DRAIN
-
2109168-16002 GASKET, OIL FILLERGASKET, OIL FILLER
-
2209181-25223 WASHER, RR FINAL DRIVEWASHER, RR FINAL DRIVE
-
2309248-16012 PLUG, OIL DRAINPLUG, OIL DRAIN
-
2409248-16012 PLUG, OIL FILLERPLUG, OIL FILLER
-
2509262-25132 BEARING, REAR FINALBEARING, REAR FINAL
-
2609262-28014 BEARING, FINAL DRIVE GEARBEARING, FINAL DRIVE GEAR
-
2709262-45012 BEARING, FINAL DRIVEN RIGHT HANDBEARING, FINAL DRIVEN RIGHT HAND
-
2809263-20089 BEARING, FINAL DRIVE PILOTBEARING, FINAL DRIVE PILOT
-
2909263-40012 BEARING, FINAL DRIVEN LEFT HANDBEARING, FINAL DRIVEN LEFT HAND
-
3009280-00036 O RING, BEARING CASE RIGHT HANDO RING, BEARING CASE RIGHT HAND
-
3109280-24010 O RING, COLLAR OUTPUT ID:23.7, DD:2.4O RING, COLLAR OUTPUT ID:23.7, DD:2.4
-
3209280-76008 O RING, RR FINAL HOUSING ID:74.0, DD:3.1O RING, RR FINAL HOUSING ID:74.0, DD:3.1
-
3309283-38009 OIL SEAL, FINAL DRIVEN LEFT HAND 38X54X6.0OIL SEAL, FINAL DRIVEN LEFT HAND 38X54X6.0
-
3409283-42011 OIL SEAL, FINAL DRIVEN RIGHT HAND 42X62X7.0OIL SEAL, FINAL DRIVEN RIGHT HAND 42X62X7.0
-
3509401-08411 CLAMPCLAMP
-
3601421-10303 BOLT, RR FINAL GRBOLT, RR FINAL GR
-
3701550-06103 BOLT, OIL CHECKBOLT, OIL CHECK
-
3801550-08253 BOLT, REAR FINAL GRBOLT, REAR FINAL GR
-
3908211-40505 WASHER, FINAL DRIVEN LEFT HANDWASHER, FINAL DRIVEN LEFT HAND
-
4008316-10103 NUT, RR FINAL DRIVENUT, RR FINAL DRIVE
-
4108331-31256 CIRCLIP, REAR FINAL DRIVECIRCLIP, REAR FINAL DRIVE
-
4208331-41526 CIRCLIP, REAR FINAL BEARINGCIRCLIP, REAR FINAL BEARING
