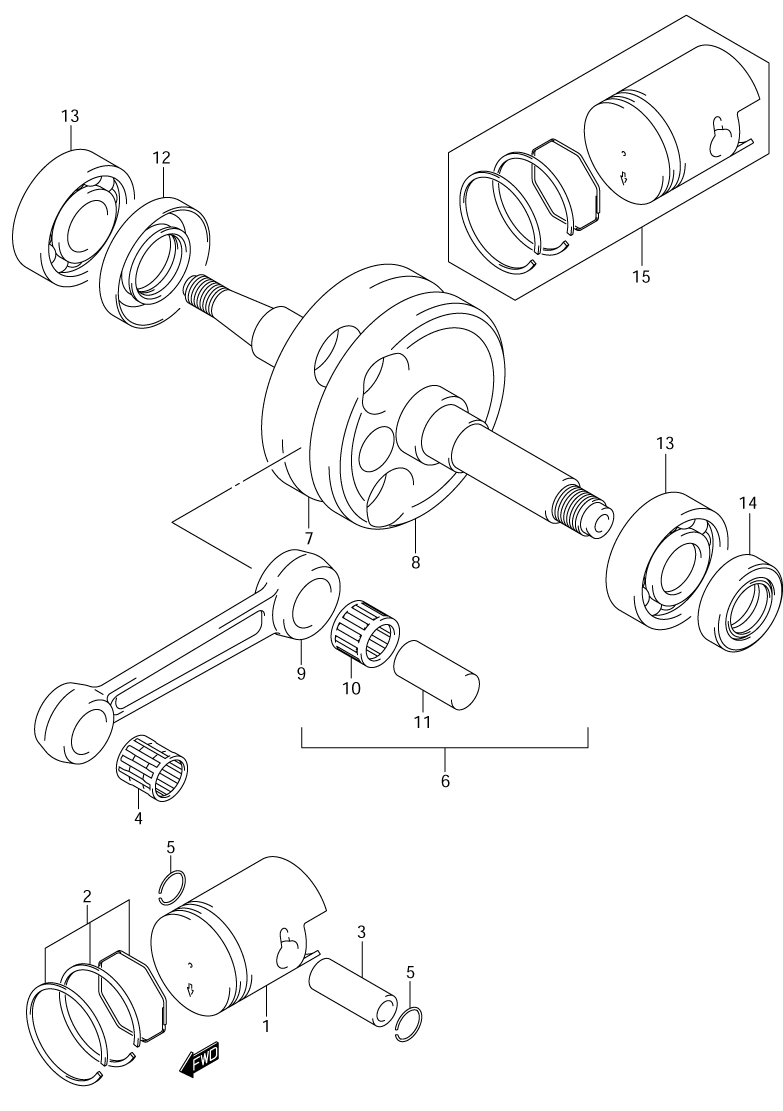

CRANKSHAFT W/ PISTON для Suzuki LT-A50 QUADSPORT - 2004 года выпуска

№

Артикул

Название
1

12110-35614-0F0 PISTON (STD)

PISTON (STD)

308 100 ₽
2

12140-16B10 RING SET, PISTON (STD)

RING SET, PISTON (STD)

4 060 ₽
2

12140-46110-050 RING SET, PISTON (OS:0.5) (OPT)

RING SET, PISTON (OS:0.5) (OPT)

195 000 ₽
2

12140-46110-100 RING SET, PISTON (OS:1.0) (OPT)

RING SET, PISTON (OS:1.0) (OPT)

195 000 ₽
3

12151-04700 PIN, PISTON

PIN, PISTON

1 310 ₽
4

09263-12023 BEARING, PISTON PIN (12X16X15.8)

BEARING, PISTON PIN (12X16X15.8)

1 780 ₽
5

09381-12001 CIRCLIP

CIRCLIP

250 ₽
6

12200-04001 CRANKSHAFT ASSY.

CRANKSHAFT ASSY.

60 200 ₽
7

12221-04000 ...CRANKSHAFT (RIGHT)

...CRANKSHAFT (RIGHT)

19 590 ₽
8

12261-04000 ...CRANKSHAFT (LEFT)

...CRANKSHAFT (LEFT)

19 590 ₽
9

12161-04001 ...ROD, CONNECTING

...ROD, CONNECTING

11 390 ₽
10

09263-15014 ...BEARING (15X21X9.8)

...BEARING (15X21X9.8)

2 080 ₽
11

12211-04000 ...PIN, CRANK

...PIN, CRANK

2 580 ₽
12

09283-22001 OIL SEAL (22X40X8) (RIGHT)

OIL SEAL (22X40X8) (RIGHT)

910 ₽
13

09262-17023 BEARING (17X40X12)

BEARING (17X40X12)

2 930 ₽
