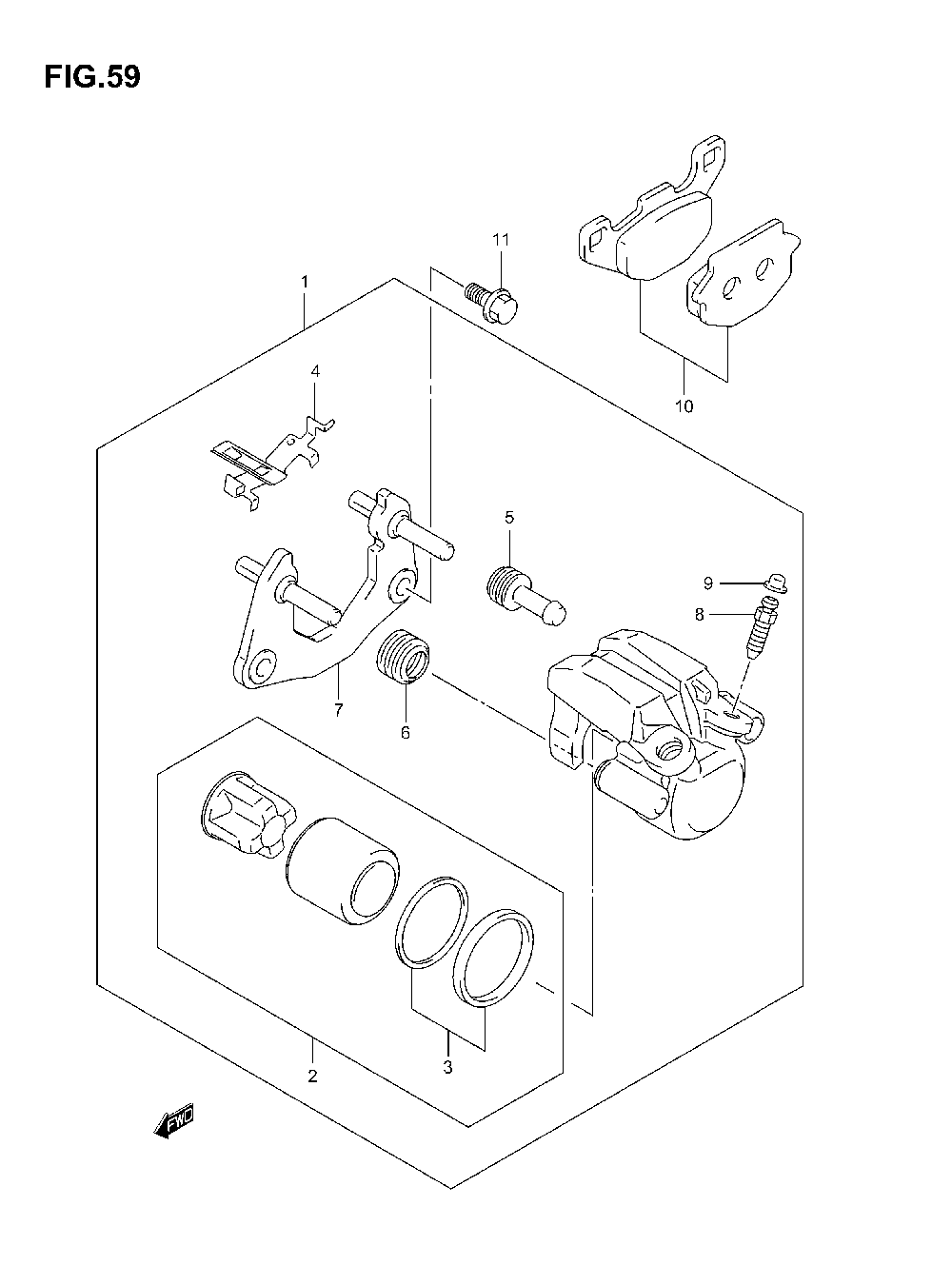

BRAKE - REAR CALIPER для Suzuki LT-A500F VISION 4X4 AUTOMATIC - 2004 года выпуска
-
№АртикулНазвание
-
169100-03GF0-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
259100-01850 PISTON SETPISTON SET
-
359100-35860 SEAL SET, PISTONSEAL SET, PISTON
-
459315-36500 SPRING, PADSPRING, PAD
-
559313-36500 INSULATOR, AXLEINSULATOR, AXLE
-
659312-36500 BOOTBOOT
-
769150-03GF0 BRACKETBRACKET
-
859121-18410 BLEEDERBLEEDER
-
955156-66310 CAP, BLEEDERCAP, BLEEDER
-
1069100-03860 PAD SETPAD SET
-
1109103-08385 BOLTBOLT
