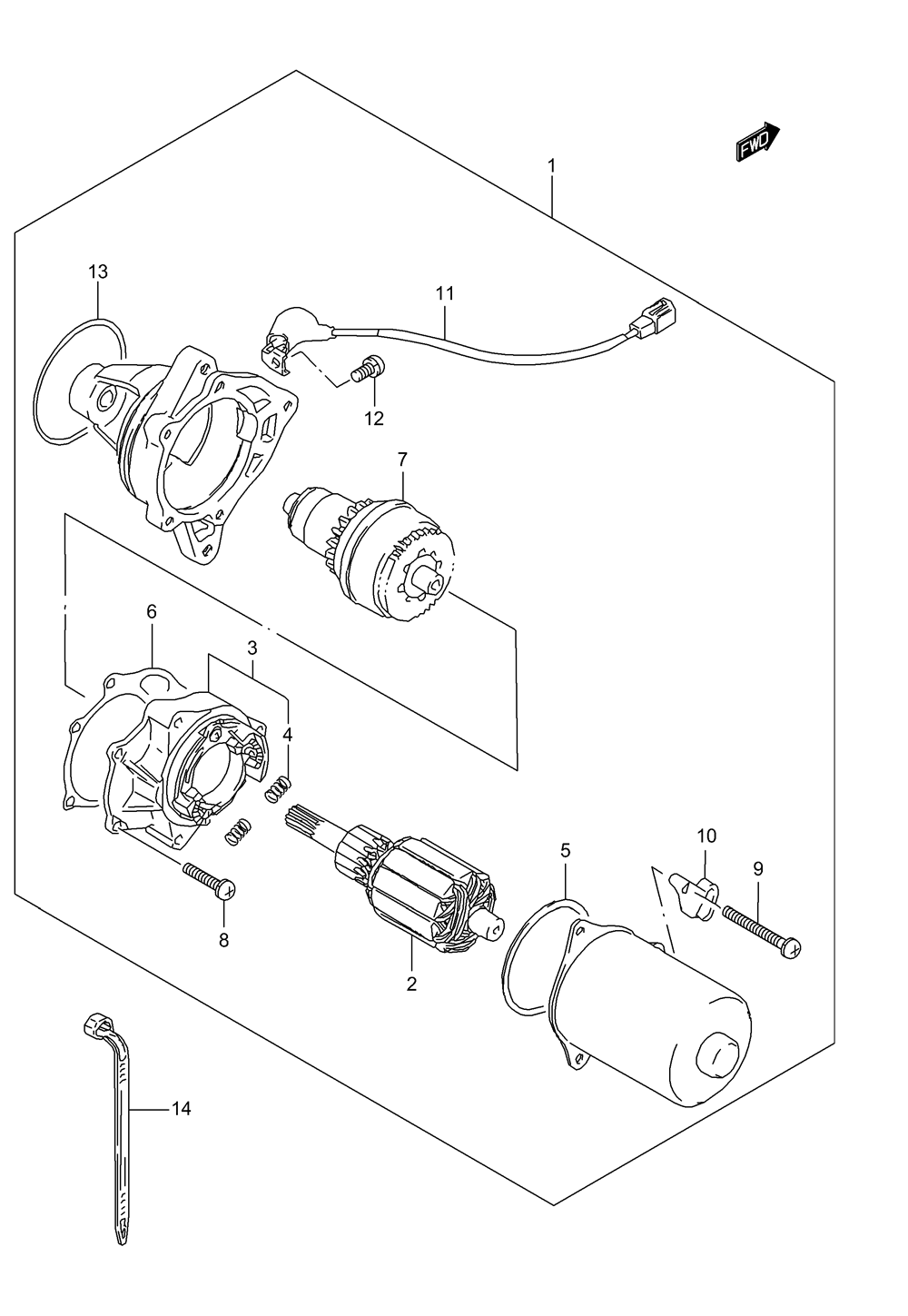

STARTING MOTOR для Suzuki LT80 QUADSPORT - 2004 года выпуска
-
№АртикулНазвание
-
131100-40B01 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231311-40B01 ARMATUREARMATURE
-
331130-40B01 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
431135-03A00 SPRINGSPRING
-
531157-03A00 GASKETGASKET
-
631158-40B01 GASKETGASKET
-
731370-40B00 GEAR ASSY, PINIONGEAR ASSY, PINION
-
802112-34303 SCREWSCREW
-
902112-04123 SCREWSCREW
-
1031154-11B00 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
1131142-40B00 LEAD WIRELEAD WIRE
-
1202112-34063 SCREWSCREW
-
1331156-02100 O RINGO RING
-
1409407-14403 CLAMP, LEAD WIRE (L:125)CLAMP, LEAD WIRE (L:125)
