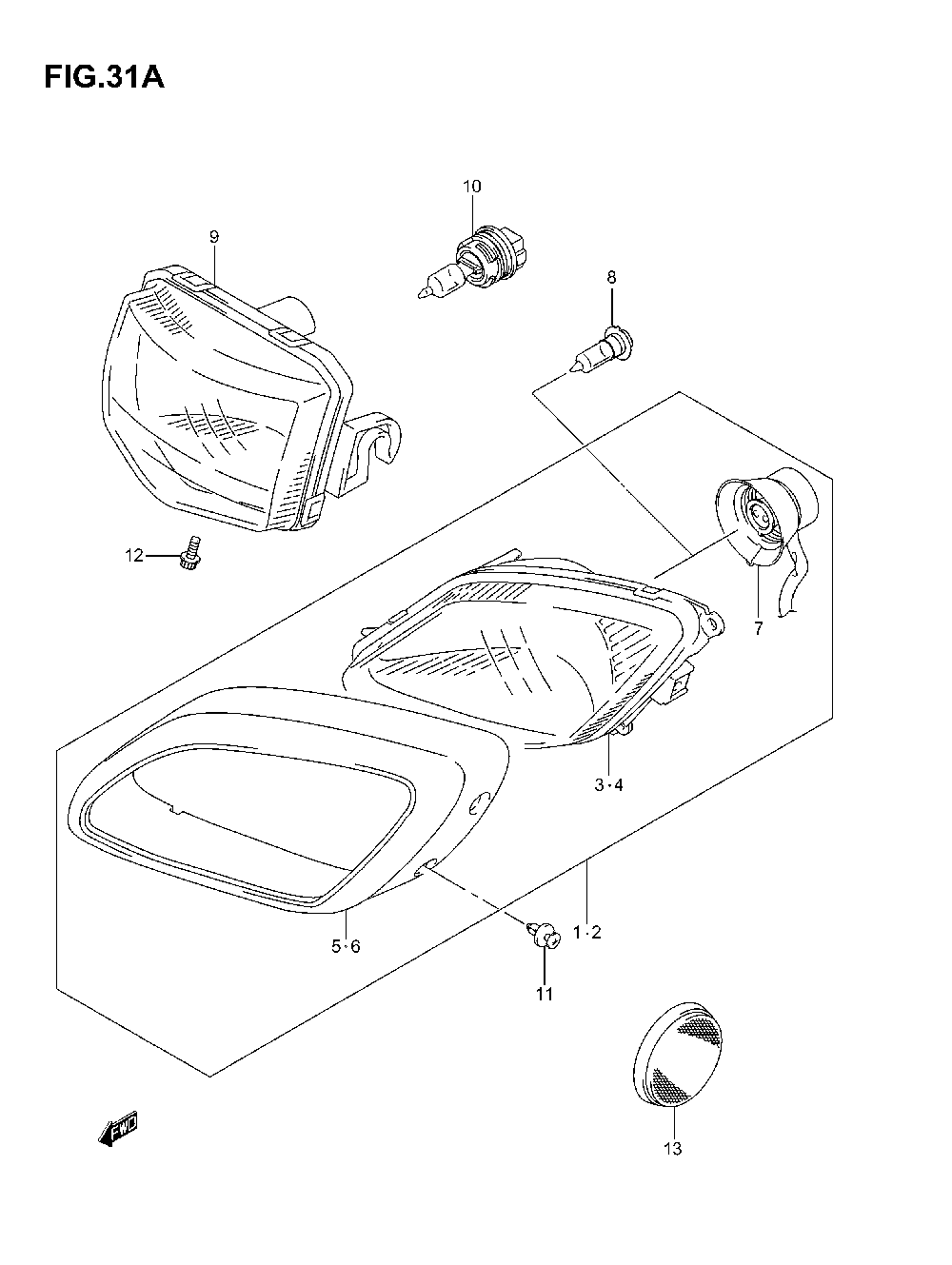

HEADLAMP для Suzuki LT-A500F VINSON 4x4 AUTOMATIC - 2005 года выпуска
-
№АртикулНазвание
-
135100-03G00-999 HEADLAMP ASSY, RIGHT HANDHEADLAMP ASSY, RIGHT HAND
-
235300-03G00-999 HEADLAMP ASSY, LEFT HANDHEADLAMP ASSY, LEFT HAND
-
335121-03G00 UNIT, RIGHT HANDUNIT, RIGHT HAND
-
435321-03G00 UNIT, LEFT HANDUNIT, LEFT HAND
-
535127-03G00 RIM, RIGHT HANDRIM, RIGHT HAND
-
635327-03G00 RIM, LEFT HANDRIM, LEFT HAND
-
735171-03G00 CORD ASSYCORD ASSY
-
809471-12097 BULB (14V30/30W)BULB (14V30/30W)
-
935100-03GB0-999 HEADLAMP ASSY, AUXHEADLAMP ASSY, AUX
-
1009471-12217 BULB (12V,40/40W)BULB (12V,40/40W)
-
1109409-06322-5PK CLIPCLIP
-
1207120-05163 BOLTBOLT
-
1335950-14A00 REFLEX REFLECTOR ASSY, FRONT (CANADA)REFLEX REFLECTOR ASSY, FRONT (CANADA)
Все узлы модели:
- AIR CLEANER
- BATTERY
- BOX - REAR
- BRAKE - FRONT CALIPER
- BRAKE - FRONT HOSE
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARBURETOR
- CARRIER - FRONT / REAR
- COOLING DUCTS
- CRANK BALANCER
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL - FRONT (AFTER 11/2005 (05/11))
- DIFFERENTIAL - FRONT (BEFORE 10/2005 (05/10))
- DIFFERENTIAL - REAR (AFTER 09/2004 (04/09))
- DIFFERENTIAL - REAR (BEFORE 08/2004 (04/8))
- DRIVE SHAFT - FRONT
- DRIVESHAFT - REAR
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- FRAME
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- • HEADLAMP
- HEADLAMP HOUSING
- LABELS
- MAGNETO
- MUFFLER
- OIL PUMP
- OPTIONAL
- RADIATOR
- RADIATOR HOSE
- SEAT
- SHIFT LEVER
- SPEEDOMETER
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING KNUCKLE W/ TIE RODS
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM
- TAILLIGHT ASSY.
- TRANSMISSION (1)
- TRANSMISSION (2)
- WATER PUMP
- WHEEL - FRONT
- WHEEL - LEFT REAR
- WHEEL - RIGHT REAR W/ AXLE
