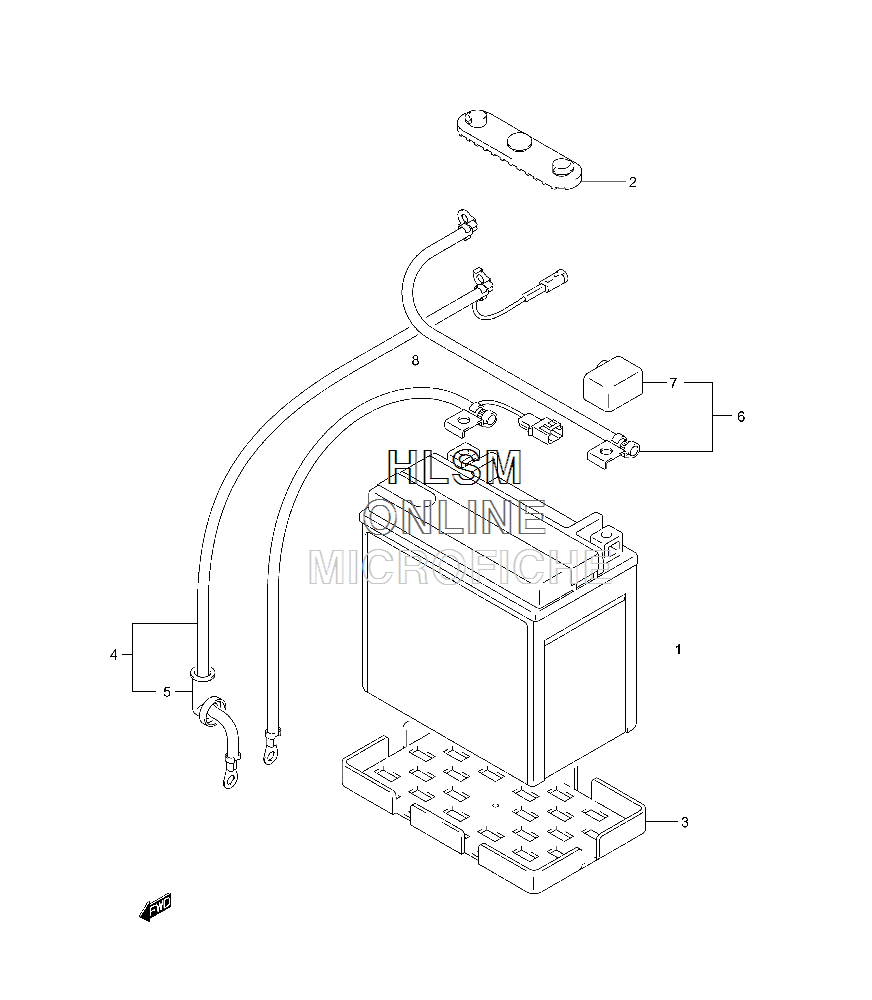

BATTERY для Suzuki LT-A700X Kiing Quad 4x4 - 2005 года выпуска
-
№АртикулНазвание
-
133610-31G00 BATTERY ASSY (FTZ16-BS,12V8AH)BATTERY ASSY (FTZ16-BS,12V8AH)
-
233652-07G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
433810-31G00 WIRE, STARTER MOTOR (INCL. 5)WIRE, STARTER MOTOR (INCL. 5)
-
531861-48B10 CAP, STARTER MOTOR LEADCAP, STARTER MOTOR LEAD
-
633820-31G00 WIRE, BATTERY PLUS (INCL. 7)WIRE, BATTERY PLUS (INCL. 7)
-
733624-16E00 CAP, BATTERY PLUS TERMCAP, BATTERY PLUS TERM
-
833860-31G00 WIRE, BATTERY MINUSWIRE, BATTERY MINUS
