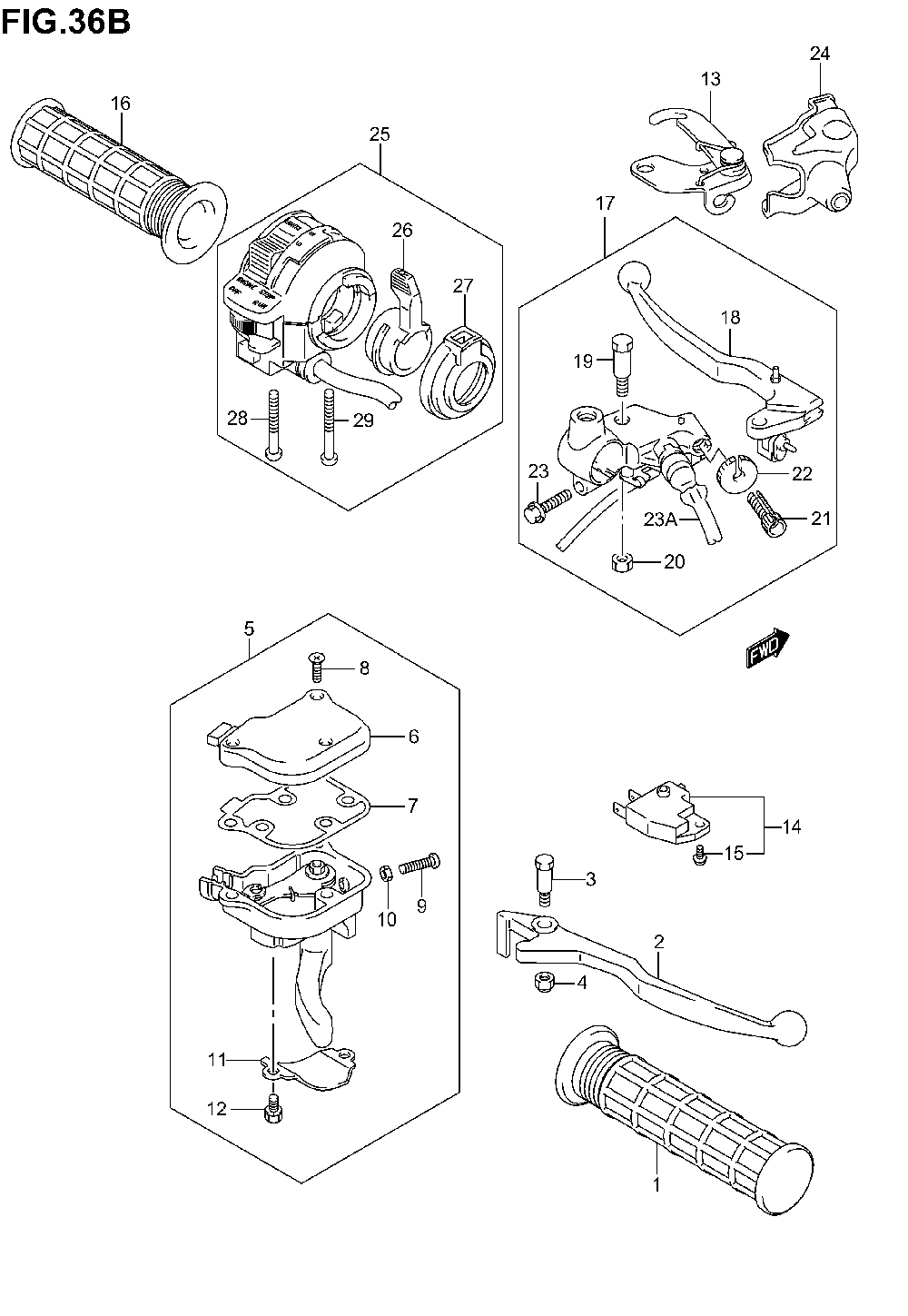

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-F250 OZARK - 2005 года выпуска
-
№АртикулНазвание
-
157211-21G00 GRIPGRIP
-
257421-39D20 LEVER, BRAKELEVER, BRAKE
-
357431-04F00 BOLTBOLT
-
457433-09F00 NUTNUT
-
557100-38F60 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
657121-38F50 CAPCAP
-
757157-38F50 GASKETGASKET
-
857128-07G00 SCREWSCREW
-
902112-05203 SCREWSCREW
-
1008310-00053 NUTNUT
-
1157126-07G00 HOLDERHOLDER
-
1257127-07G00 BOLTBOLT
-
1357790-38FA0 STOPPER, LEVERSTOPPER, LEVER
-
1457460-17C11 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
1557465-17C00 SCREWSCREW
-
1657211-21G00 GRIPGRIP
-
1757500-38FC0 LEVER ASSY, REAR BRAKELEVER ASSY, REAR BRAKE
-
1857620-21821 LEVER, BRAKELEVER, BRAKE
-
1957431-09F00 BOLT, PIVOTBOLT, PIVOT
-
2008319-21063 NUTNUT
-
2157441-08C00 ADJUSTER, CABLEADJUSTER, CABLE
-
2257442-08C00 LOCK NUTLOCK NUT
-
2301547-06203 BOLTBOLT
-
23A57560-38FA1 SWITCH, STOPSWITCH, STOP
-
2457541-38FA0 COVER, BRAKECOVER, BRAKE
-
2537400-09F00 SWITCH ASSY, LEFT HANDSWITCH ASSY, LEFT HAND
-
2637571-19B01 LEVER, CHOKELEVER, CHOKE
-
2737576-19B01 COVER, CHOKECOVER, CHOKE
-
2802112-05407 SCREWSCREW
-
2902112-05457 SCREWSCREW
