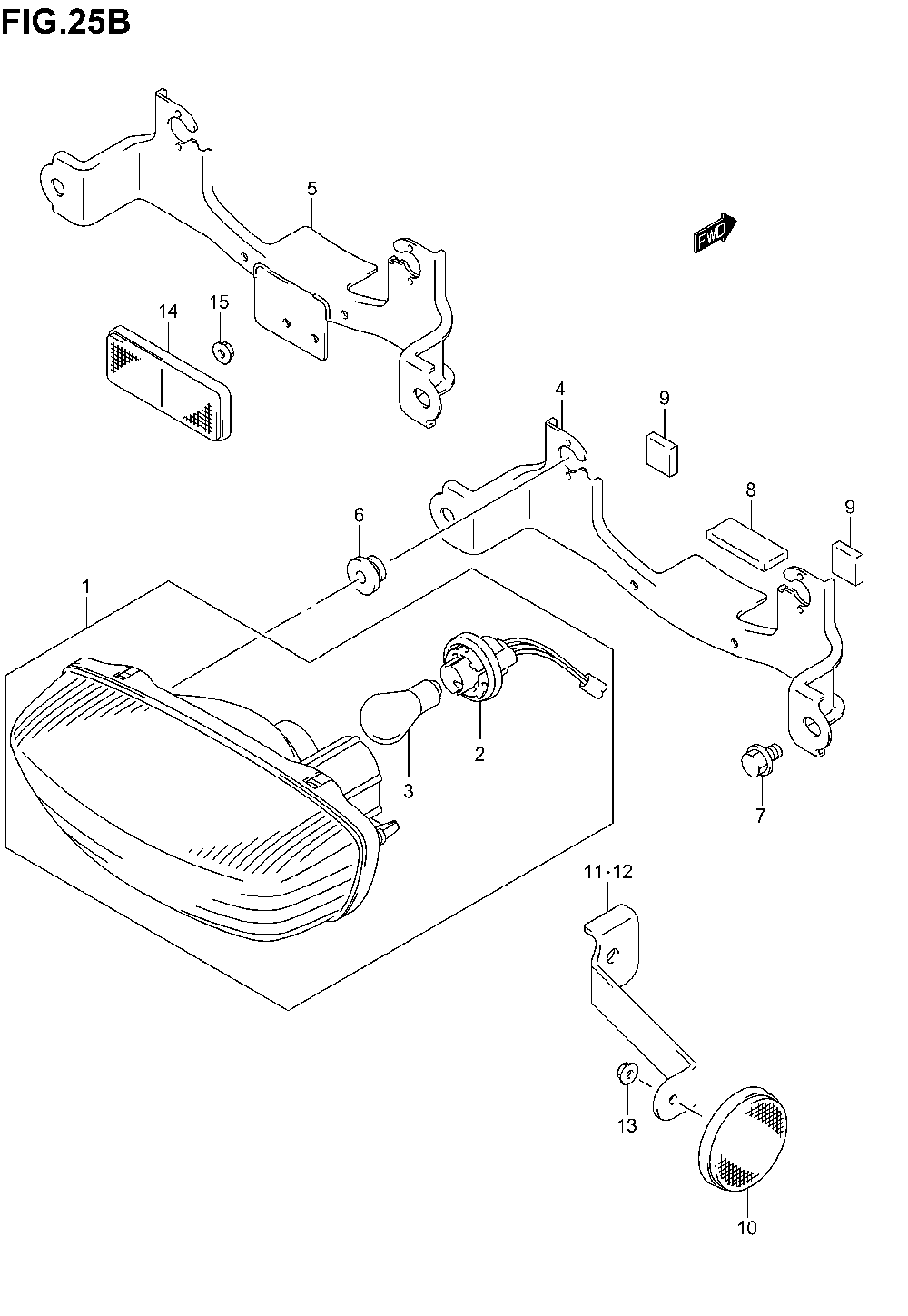

TAILLIGHT ASSY. для Suzuki LT-F250 OZARK - 2005 года выпуска
-
№АртикулНазвание
-
135710-03G30 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
235718-03G30 SOCKET AND CORD ASSYSOCKET AND CORD ASSY
-
309471-12083 BULB (12V,21/5W)BULB (12V,21/5W)
-
435726-05G00 BRACKET, REAR COMB LAMPBRACKET, REAR COMB LAMP
-
535726-05G20 BRACKET, REAR COMB LAMP (CANADA)BRACKET, REAR COMB LAMP (CANADA)
-
609320-06024 CUSHIONCUSHION
-
701550-08123 BOLTBOLT
-
833652-05G10 CUSHION (25X55X8)CUSHION (25X55X8)
-
933652-05G20 CUSHION (17X17X12)CUSHION (17X17X12)
-
1035970-14A10 REFLECTOR ASSY, REAR SIDE (CANADA)REFLECTOR ASSY, REAR SIDE (CANADA)
-
1135975-05G10 BRACKET, REAR SIDE RR RIGHT HAND (CANADA)BRACKET, REAR SIDE RR RIGHT HAND (CANADA)
-
1235976-05G10 BRACKET, REAR SIDE RR LEFT HAND (CANADA)BRACKET, REAR SIDE RR LEFT HAND (CANADA)
-
1308316-10053 NUT (CANADA)NUT (CANADA)
-
1435970-07F00 REFLECTOR ASSY, REAR (CANADA)REFLECTOR ASSY, REAR (CANADA)
-
1508316-10053 NUT (CANADA)NUT (CANADA)
