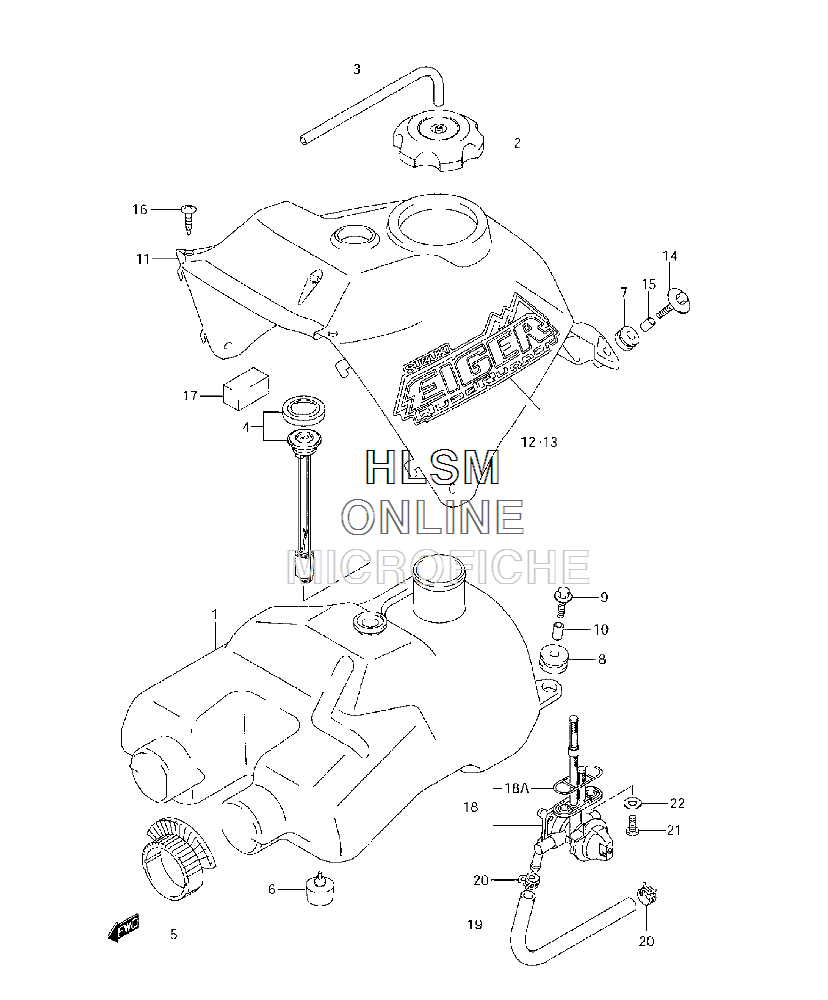

FUEL TANK для Suzuki LT-F400 EIGER 4X2 MANUAL - 2005 года выпуска
-
№АртикулНазвание
-
144100-38F00 TANK ASSY, FUELTANK ASSY, FUEL
-
244200-29F00 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
309352-50823-600 HOSE, BREATHER (L:600!380)HOSE, BREATHER (L:600!380)
-
444580-38F01 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
544511-38F00 CUSHION, FRONTCUSHION, FRONT
-
644543-38F00 CUSHION, LOWERCUSHION, LOWER
-
745141-09F00 CUSHION, SEAT MOUNTCUSHION, SEAT MOUNT
-
844281-03G00 CUSHION, REARCUSHION, REAR
-
909116-06050 BOLTBOLT
-
1044544-38F00 SPACERSPACER
-
1144271-38F10-YU1 COVER, TANK (YELLOW)COVER, TANK (YELLOW)
-
1268111-38F10-AWT EMBLEM, COVER RIGHT HANDEMBLEM, COVER RIGHT HAND
-
1368121-38F10-AWT EMBLEM, COVER LEFT HANDEMBLEM, COVER LEFT HAND
-
1401550-06203 BOLT, REARBOLT, REAR
-
1509180-06267 SPACERSPACER
-
1603241-15163 SCREWSCREW
-
1747161-04A00 CUSHIONCUSHION
-
1844300-38F30 COCK ASSY, FUEL (INCL. 18A)COCK ASSY, FUEL (INCL. 18A)
-
18A44348-38F00 O RINGO RING
-
1944421-38F20 HOSE, FUELHOSE, FUEL
-
2009401-11407 CLIPCLIP
-
2109103-06277 BOLTBOLT
-
2209168-06026 GASKETGASKET
