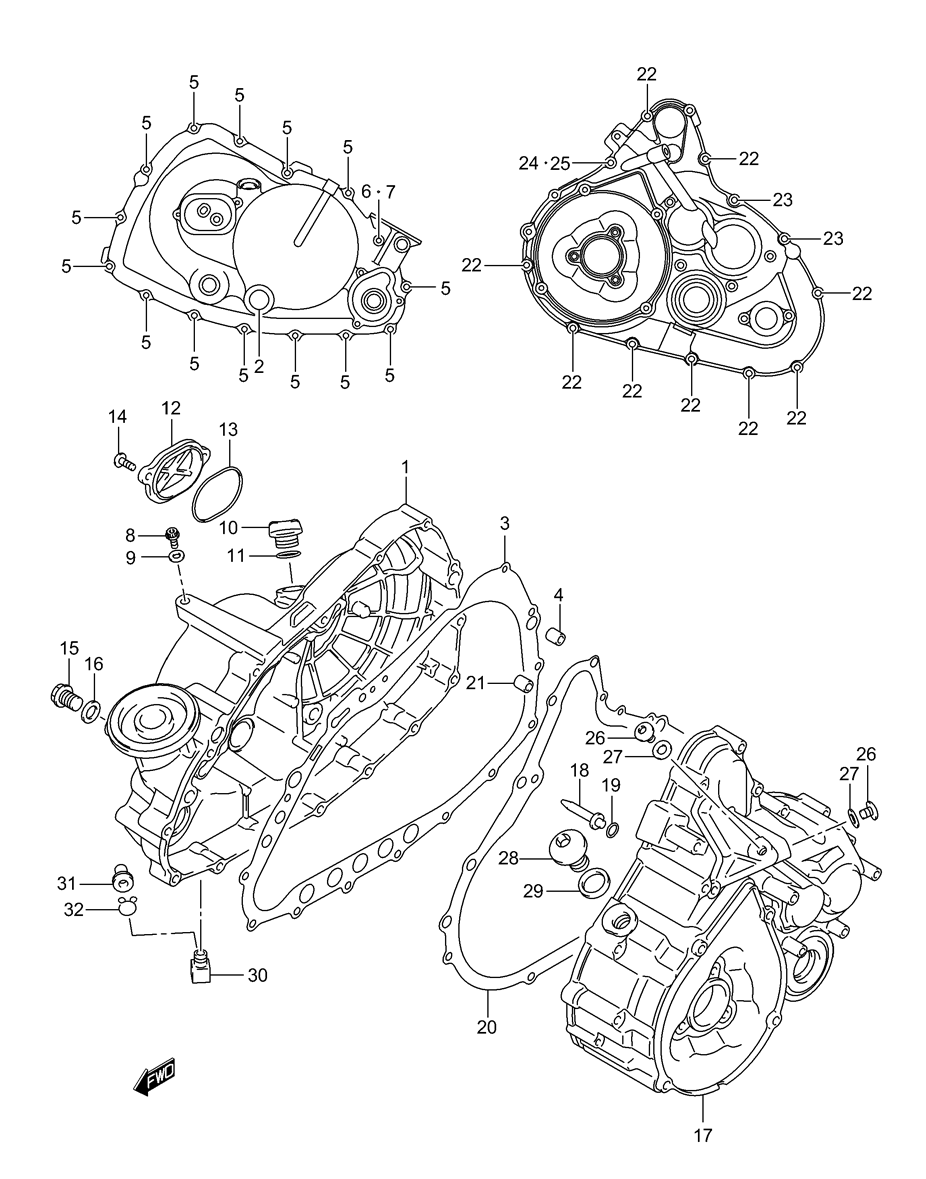

CRANKCASE COVER для Suzuki LT-F500F VINSON 4x4 MANUAL - 2005 года выпуска
-
№АртикулНазвание
-
111340-09F01 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 LENS, OIL INSPECTIONLENS, OIL INSPECTION
-
311482-44D00 GASKETGASKET
-
404211-13189 PINPIN
-
501547-06353 BOLTBOLT
-
601547-06703 BOLTBOLT
-
709168-06023 GASKETGASKET
-
807120-06103 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
909168-06023 GASKETGASKET
-
1009259-20008 CAP, ENGINE OIL FILLERCAP, ENGINE OIL FILLER
-
1109280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1211175-09F00 CAP, INSPECTIONCAP, INSPECTION
-
1311177-14D01 O RINGO RING
-
1402142-06203 SCREW 6X20SCREW 6X20
-
1509247-14015 PLUG, OIL PRESSUREPLUG, OIL PRESSURE
-
1609168-14002 GASKETGASKET
-
1711351-09F00 COVER TRANSFERCOVER TRANSFER
-
1809493-36003 JET, OIL MISSIONJET, OIL MISSION
-
1909280-04004 O RING (D:1.2,ID:4.0)O RING (D:1.2,ID:4.0)
-
2011483-44D01 GASKET, TRANSFER COVERGASKET, TRANSFER COVER
-
2104211-13189 PINPIN
-
2201547-06403 BOLTBOLT
-
2301547-06503 BOLTBOLT
-
2401547-06753 BOLTBOLT
-
2509168-06023 GASKETGASKET
-
2609106-08116 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
2709168-08015 GASKETGASKET
-
2809248-16012 PLUG, TDC CHECKPLUG, TDC CHECK
-
2909168-16002 GASKET 16X22X2GASKET 16X22X2
-
3017415-44D00 UNION, WATER DRAINUNION, WATER DRAIN
-
3113878-39C10 HOSEHOSE
-
3209401-08401 OIL HOSE CLAMPOIL HOSE CLAMP
