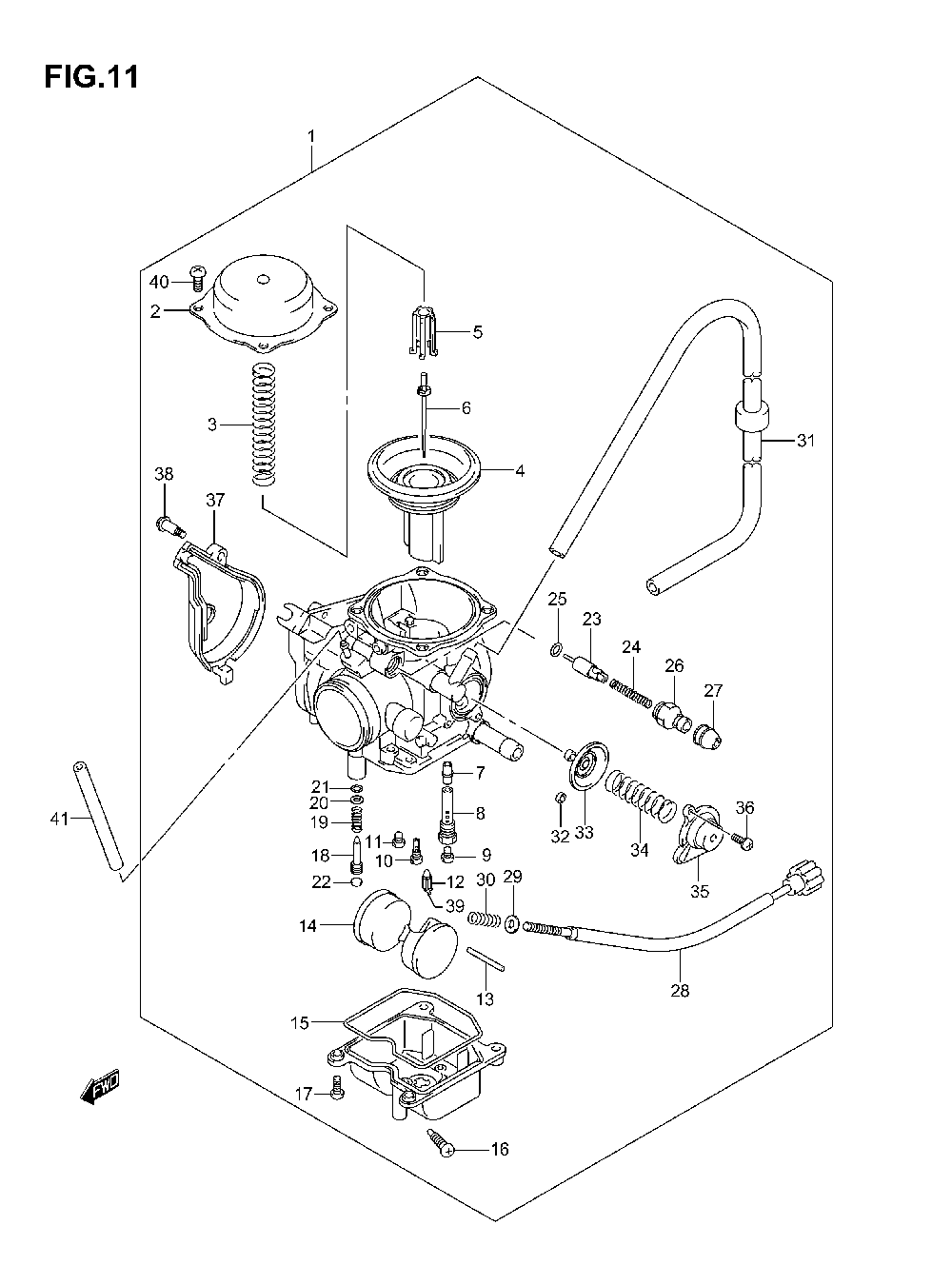

CARBURETOR для Suzuki LT-F400F EIGER 4x4 MANUAL - 2006 года выпуска
-
№АртикулНазвание
-
113200-38FD0 CARBURETOR ASSY (CANADA ONLY)CARBURETOR ASSY (CANADA ONLY)
-
113200-38FE0 CARBURETOR ASSY (US ONLY)CARBURETOR ASSY (US ONLY)
-
213502-38F00 DIAPHRAGM COVERDIAPHRAGM COVER
-
313503-38F00 SPRINGSPRING
-
413501-38F00 DIAPHRAGMDIAPHRAGM
-
513382-26E00 SEAT, SPRINGSEAT, SPRING
-
613383-38F00 NEEDLE, JET (N425-BZA00)NEEDLE, JET (N425-BZA00)
-
709494-00869 JET, NEEDLEJET, NEEDLE
-
813342-38F00 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
909491-24032 JET, MAIN (#122)JET, MAIN (#122)
-
1009492-38005 JET, PILOT (#38)JET, PILOT (#38)
-
1109491-55009 JET, MAIN (#55)JET, MAIN (#55)
-
1213370-38F00 VALVE ASSY, NEEDLEVALVE ASSY, NEEDLE
-
1313254-26E00 FLOAT PINFLOAT PIN
-
1413250-26E00 FLOAT ASSYFLOAT ASSY
-
1513258-26E00 O RINGO RING
-
1613247-43E00 DRAIN SCREWDRAIN SCREW
-
1713602-26E10 SCREWSCREW
-
1813279-03FA0 SCREW, ADJUSTSCREW, ADJUST
-
1913268-26E00 SPRINGSPRING
-
2013291-26E00 WASHERWASHER
-
2113295-26E00 O RINGO RING
-
2213281-26E00 CAPCAP
-
2313410-38F00 VALVE ASSY, STARTERVALVE ASSY, STARTER
-
2413417-03G00 SPRINGSPRING
-
2513686-03G00 O RINGO RING
-
2613418-03G00 HOLDERHOLDER
-
2713681-28E00 CAPCAP
-
2813270-38FA0 SCREW, STOPSCREW, STOP
-
2913273-03G00 WASHERWASHER
-
3013268-35F00 SPRINGSPRING
-
3113683-38F00 HOSEHOSE
-
3213486-15F00 U RINGU RING
-
3313480-38F00 DIAPHRAGMDIAPHRAGM
-
3413481-15F00 SPRINGSPRING
-
3513484-15F00 COVERCOVER
-
3613601-15F10 SCREWSCREW
-
3713578-03G00 COVERCOVER
-
3813601-11F00 SCREWSCREW
-
3913375-26E00 CLIPCLIP
-
4013602-43E00 SCREWSCREW
-
4109355-50105-600 HOSE, FUEL COCK VACUUMHOSE, FUEL COCK VACUUM
