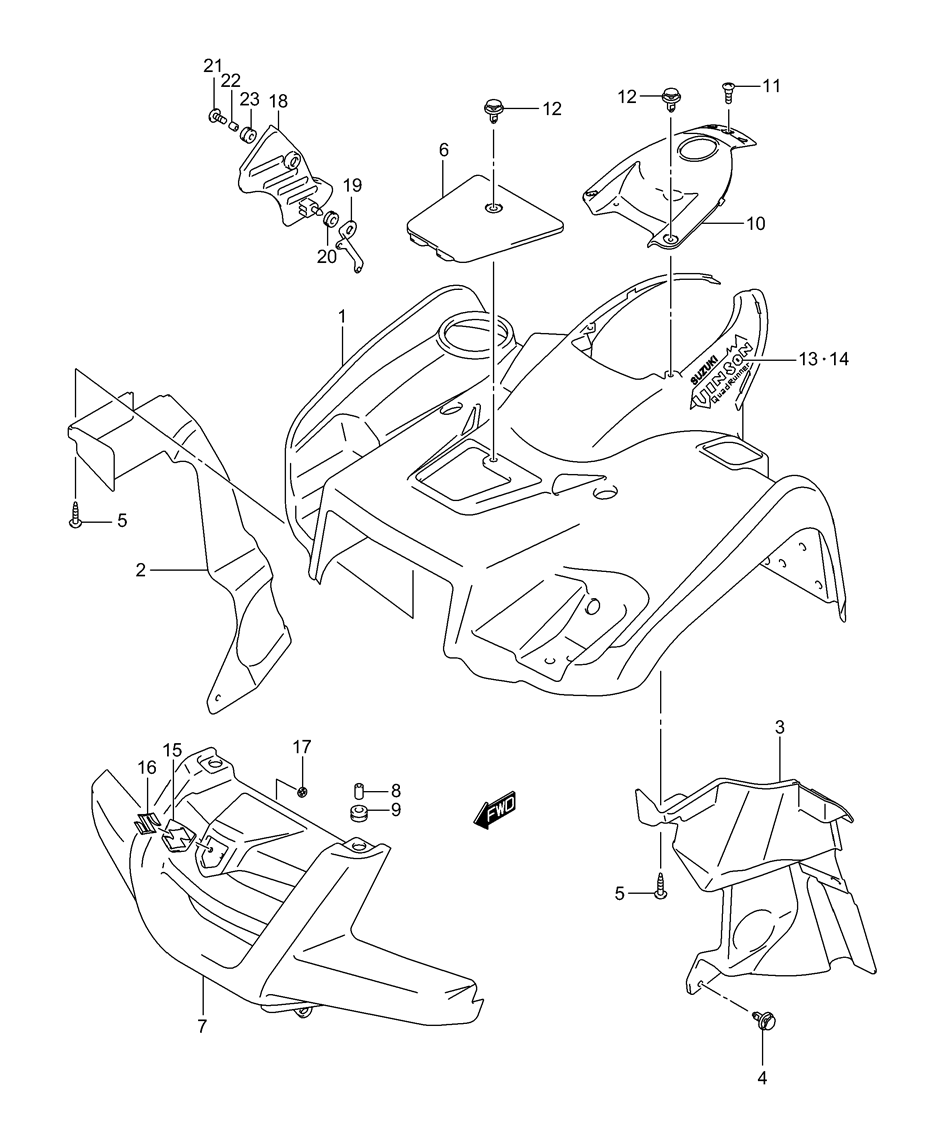

FENDER - FRONT для Suzuki LT-F500F VINSON 4x4 MANUAL - 2006 года выпуска
-
№АртикулНазвание
-
153111-03G20-019 FENDER, FRONT (BLACK, 019)FENDER, FRONT (BLACK, 019)
-
153111-03G20-YT9 FENDER, FRONT (RED, YT9)FENDER, FRONT (RED, YT9)
-
153111-03G20-YLG FENDER, FRONT (GREEN, YLG)FENDER, FRONT (GREEN, YLG)
-
153111-03GC0-YKL FENDER, FRONT (CAMOUFLAGE, YKL)FENDER, FRONT (CAMOUFLAGE, YKL)
-
253410-03G02 MUDFLAP, INNER RIGHT HANDMUDFLAP, INNER RIGHT HAND
-
353421-03G00 MUDFLAP, INNER LEFT HANDMUDFLAP, INNER LEFT HAND
-
409409-08335 CLIPCLIP
-
503241-15163 SCREW, INNERSCREW, INNER
-
653341-03G01-019 LID (BLACK, 019)LID (BLACK, 019)
-
653341-03G01-YT9 LID (RED, YT9)LID (RED, YT9)
-
653341-03G01-YLG LID (GREEN, YLG)LID (GREEN, YLG)
-
653341-03GC0-YKL LID (CAMOUFLAGE, YKL)LID (CAMOUFLAGE, YKL)
-
753118-03G00-291 GRILLE, FRONT (BLACK, 019)GRILLE, FRONT (BLACK, 019)
-
809180-08188 SPACERSPACER
-
909320-12011 CUSHIONCUSHION
-
1053119-03G10-019 FENDER, CENTER (BLACK, 019)FENDER, CENTER (BLACK, 019)
-
1053119-03G10-YT9 FENDER, CENTER (RED, YT9)FENDER, CENTER (RED, YT9)
-
1053119-03G10-YLG FENDER, CENTER (GREEN, YLG)FENDER, CENTER (GREEN, YLG)
-
1053119-03GC0-YKL FENDER, CENTER (CAMOUFLAGE, YKL)FENDER, CENTER (CAMOUFLAGE, YKL)
-
1109139-05076 SCREWSCREW
-
1209409-07333 CLIPCLIP
-
1368151-03G10-CPR EMBLEM, RIGHT HAND (FOR NON CAMO)EMBLEM, RIGHT HAND (FOR NON CAMO)
-
1368151-03GA0-CPR EMBLEM, RIGHT HAND (FOR CAMO)EMBLEM, RIGHT HAND (FOR CAMO)
-
1468152-03G10-CPR EMBLEM, LEFT HAND (FOR NON CAMO)EMBLEM, LEFT HAND (FOR NON CAMO)
-
1468152-03GA0-CPR EMBLEM, LEFT HAND (FOR CAMO)EMBLEM, LEFT HAND (FOR CAMO)
-
1568151-03G30 EMBLEM, FRONT BASEEMBLEM, FRONT BASE
-
1668151-03G40 EMBLEM, ''S''EMBLEM, ''S''
-
1709148-05006 NUT 5MMNUT 5MM
-
1853441-03GF0 GUARD, MUFFLER SIDEGUARD, MUFFLER SIDE
-
1953451-03GF0 BRACKETBRACKET
-
2009320-09016 CUSHION, UPPERCUSHION, UPPER
-
2109136-06081 SCREWSCREW
-
2209180-06263 SPACERSPACER
-
2309320-08018 CUSHIONCUSHION
