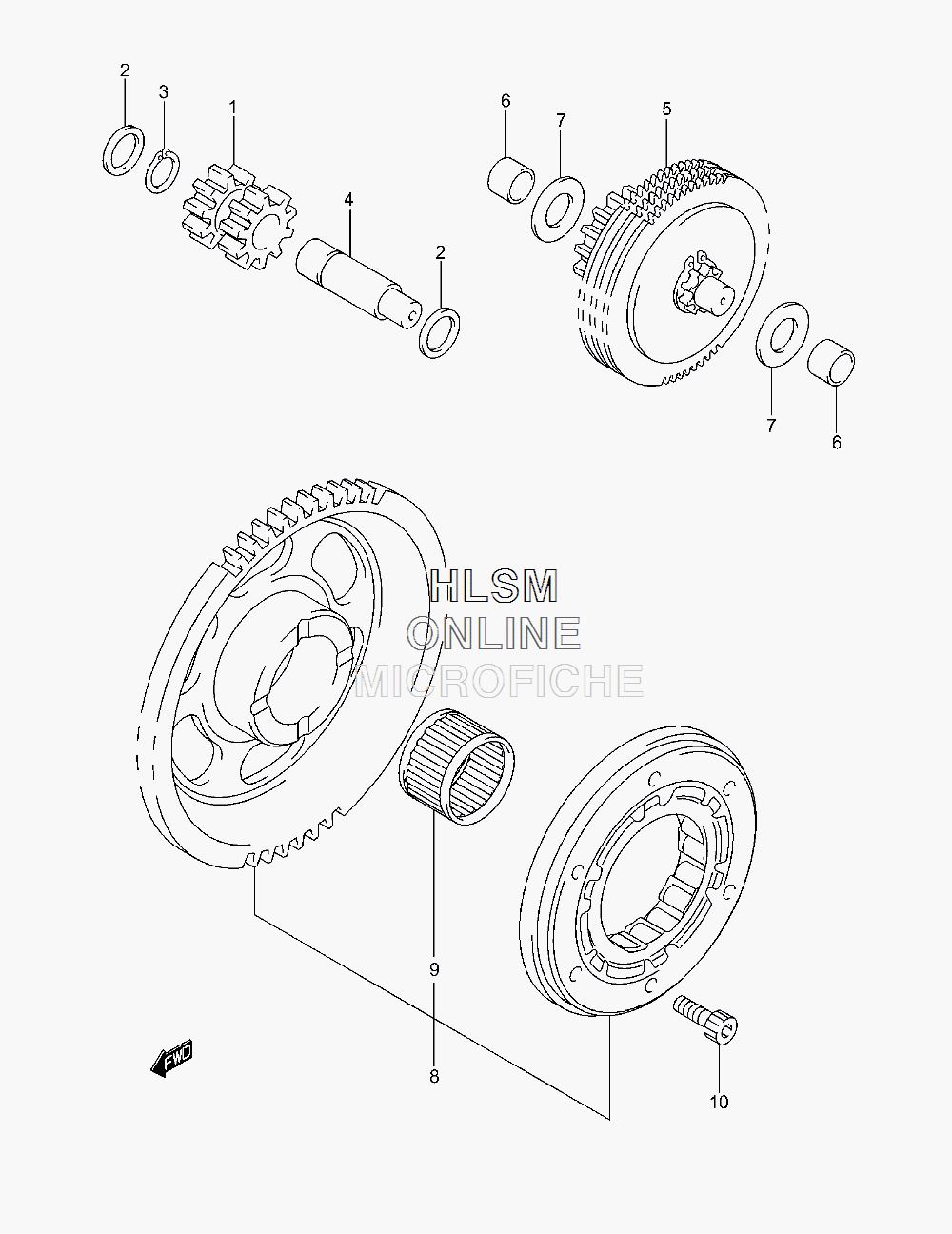

STARTER CLUTCH для Suzuki LT-Z400 QUADSPORT Z400 - 2006 года выпуска
-
№АртикулНазвание
-
112611-07G00 GEAR, STARTER IDLE NO.1GEAR, STARTER IDLE NO.1
-
209181-12130 WASHERWASHER
-
308331-31126 CIRCLIPCIRCLIP
-
412615-07G00 PINPIN
-
512600-29F00 LIMITER ASSY, STARTER IDLE GEARLIMITER ASSY, STARTER IDLE GEAR
-
612618-31G00 BUSHBUSH
-
708211-10221 WASHERWASHER
-
812600-29810 CLUTCH SET, STARTER (INC 9)CLUTCH SET, STARTER (INC 9)
-
909263-25049 BEARING (25X31X19)BEARING (25X31X19)
-
1009106-06073 BOLT (6X16)BOLT (6X16)
