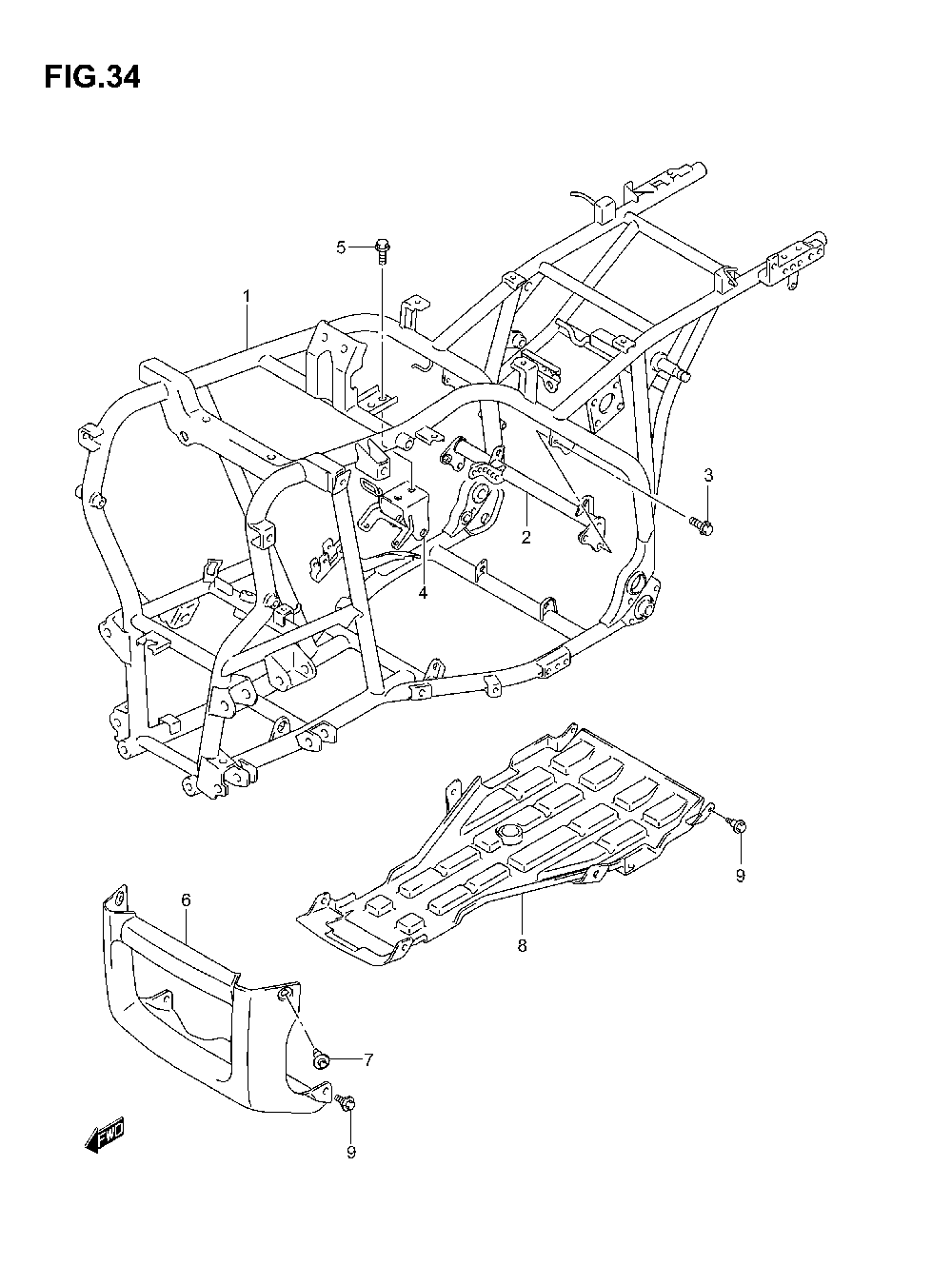

FRAME для Suzuki LT-A500F VINSON 4x4 AUTOMATIC - 2007 года выпуска
-
№АртикулНазвание
-
141100-03G20-019 FRAME (BLACK)FRAME (BLACK)
-
241980-03G00 PLATE, ENGINE MOUNT REAR RIGHT HANDPLATE, ENGINE MOUNT REAR RIGHT HAND
-
301550-08163 BOLTBOLT
-
441990-03G10 BRACKET, ENGINE MOUNT UPPERBRACKET, ENGINE MOUNT UPPER
-
501550-08163 BOLTBOLT
-
642521-03G00-291 PROTECTOR, FRONT (BLACK)PROTECTOR, FRONT (BLACK)
-
709409-08335 CLIPCLIP
-
842511-03G00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
909111-06085 SCREW, PROTECTORSCREW, PROTECTOR
