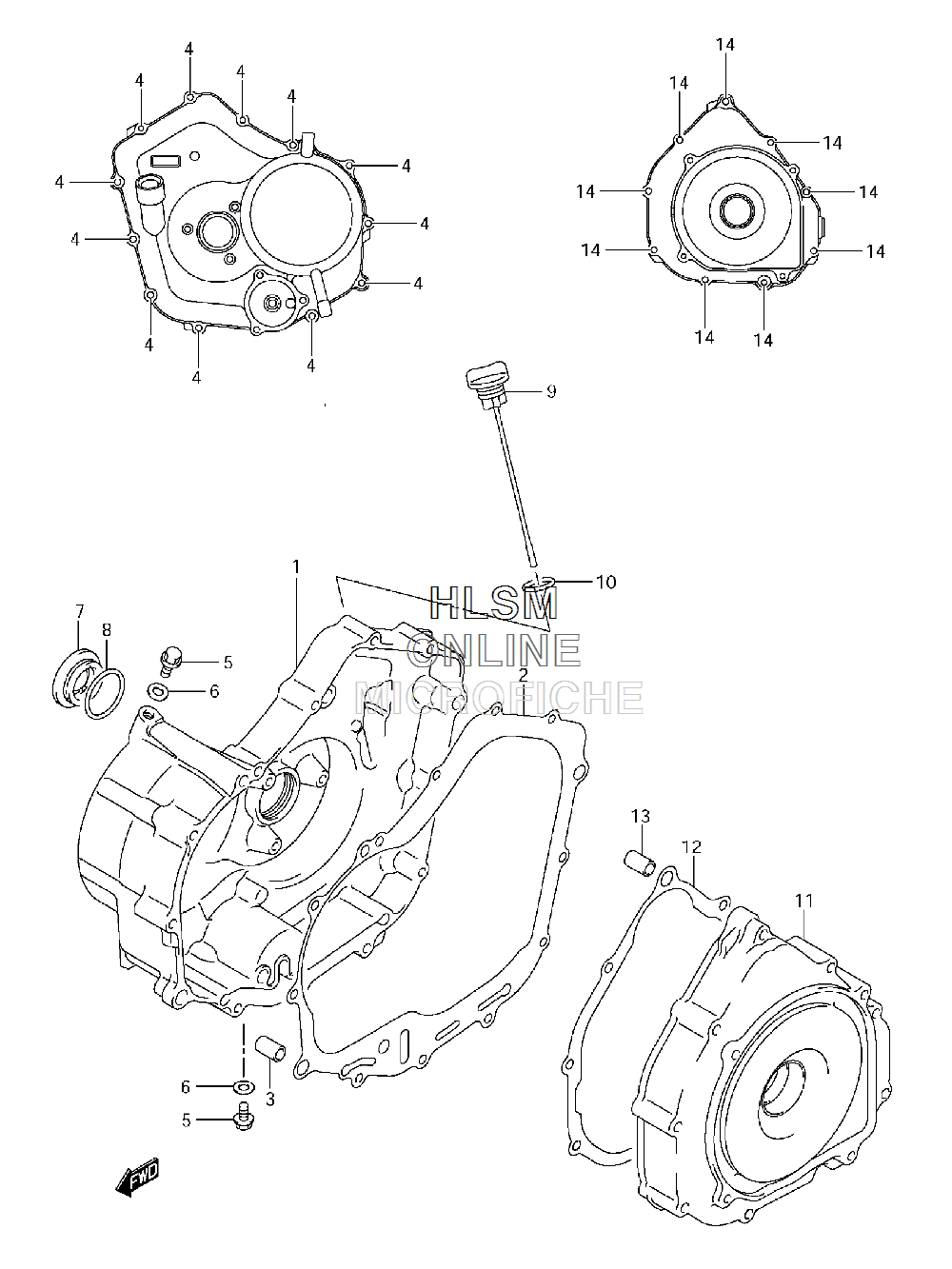

CRANKCASE COVER для Suzuki LT-F250 OZARK - 2007 года выпуска
-
№АртикулНазвание
-
111341-05G01 COVER, CLUTCHCOVER, CLUTCH
-
211482-05G01 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-11189 PINPIN
-
401547-0640B BOLTBOLT
-
501550-0610B PLUG, OIL GALLERYPLUG, OIL GALLERY
-
609168-06018 GASKETGASKET
-
709259-36021 CAP, CLUTCH ADJUSTCAP, CLUTCH ADJUST
-
809280-33004 O RING (D:3.1,ID:26.4)O RING (D:3.1,ID:26.4)
-
911971-05G00 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
1009280-17003 O RINGO RING
-
1111351-05G00 COVER, MAGNETOCOVER, MAGNETO
-
1211483-05G00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1304211-11189 PIN (10.4X13X18)PIN (10.4X13X18)
-
1401547-0640B BOLTBOLT
