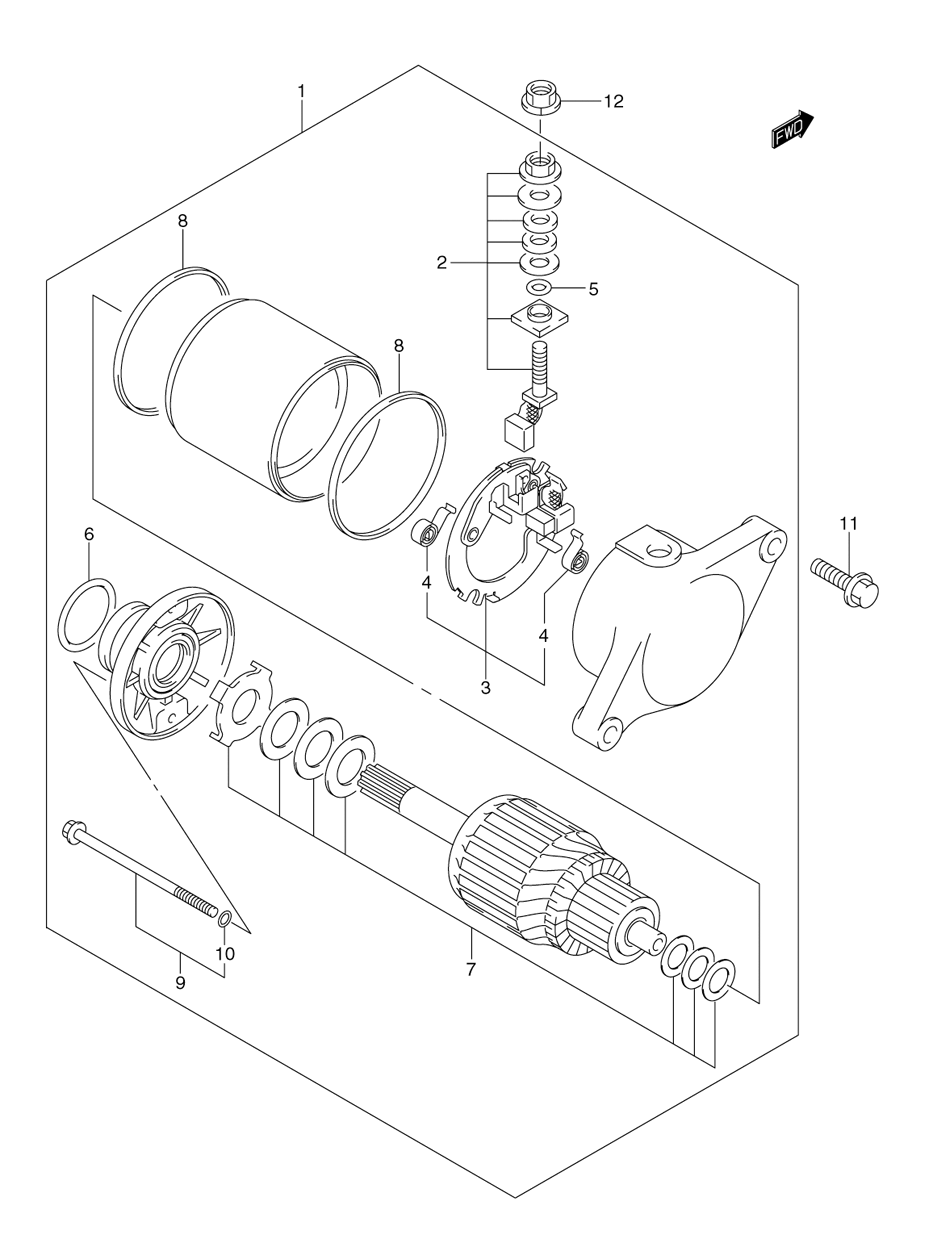

STARTING MOTOR для Suzuki LT-A400 KINGQUAD - 2008 года выпуска
-
№АртикулНазвание
-
131100-38F00 MOTOR ASSEMBLY, STARTINGMOTOR ASSEMBLY, STARTING
-
231130-13E00 ...BRUSH TERMINAL SET W/A BRUSH...BRUSH TERMINAL SET W/A BRUSH
-
331132-13E00 ...BRUSH HOLDER SET W/B BRUSH...BRUSH HOLDER SET W/B BRUSH
-
431135-31300 ......SPRING, BRUSH......SPRING, BRUSH
-
531143-49040 ...O RING...O RING
-
609280-24003 ...O RING...O RING
-
731170-19B10 ...WASHER SET...WASHER SET
-
831264-13E00 ...O RING...O RING
-
931280-13E00 ...BOLT...BOLT
-
1031156-13E00 ......O RING......O RING
-
1109103-06212 BOLT, STARTING MOTOR (6X25)BOLT, STARTING MOTOR (6X25)
-
1208361-3506A NUT, STARTING MOTORNUT, STARTING MOTOR
