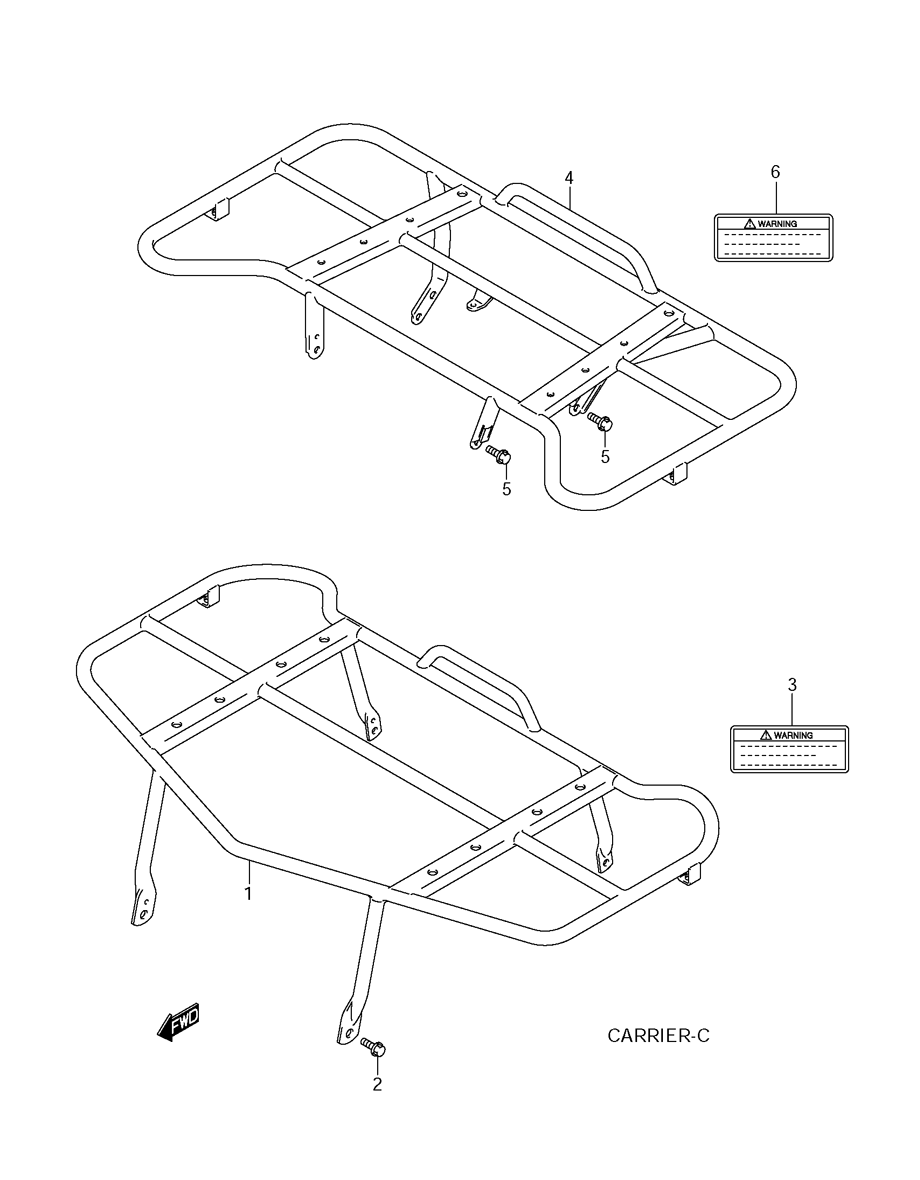

CARRIER - FRONT / REAR для Suzuki LT-A750X KINGQUAD 750AXi - 2008 года выпуска
-
№АртикулНазвание
-
146410-31G11-YH5 CARRIER, FRONT (BLACK, YH5)CARRIER, FRONT (BLACK, YH5)
-
209103-08283 BOLT, REARBOLT, REAR
-
368381-19B00 LABEL, FRONT CARRIER (FOR CALF. ONLY)LABEL, FRONT CARRIER (FOR CALF. ONLY)
-
368381-19B20 LABEL, FRONT CARRIER (FRENCH) (FOR CANADA ONLY)LABEL, FRONT CARRIER (FRENCH) (FOR CANADA ONLY)
-
446310-31G31-YH5 CARRIER, REAR (BLACK, YH5)CARRIER, REAR (BLACK, YH5)
-
509103-08283 BOLT, REARBOLT, REAR
-
668391-19B00 LABEL, REAR CARRIER (FOR CALF. ONLY)LABEL, REAR CARRIER (FOR CALF. ONLY)
-
668391-19B20 LABEL, REAR CARRIER (FRENCH) (FOR CANADA ONLY)LABEL, REAR CARRIER (FRENCH) (FOR CANADA ONLY)
